51675 (TC 5010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

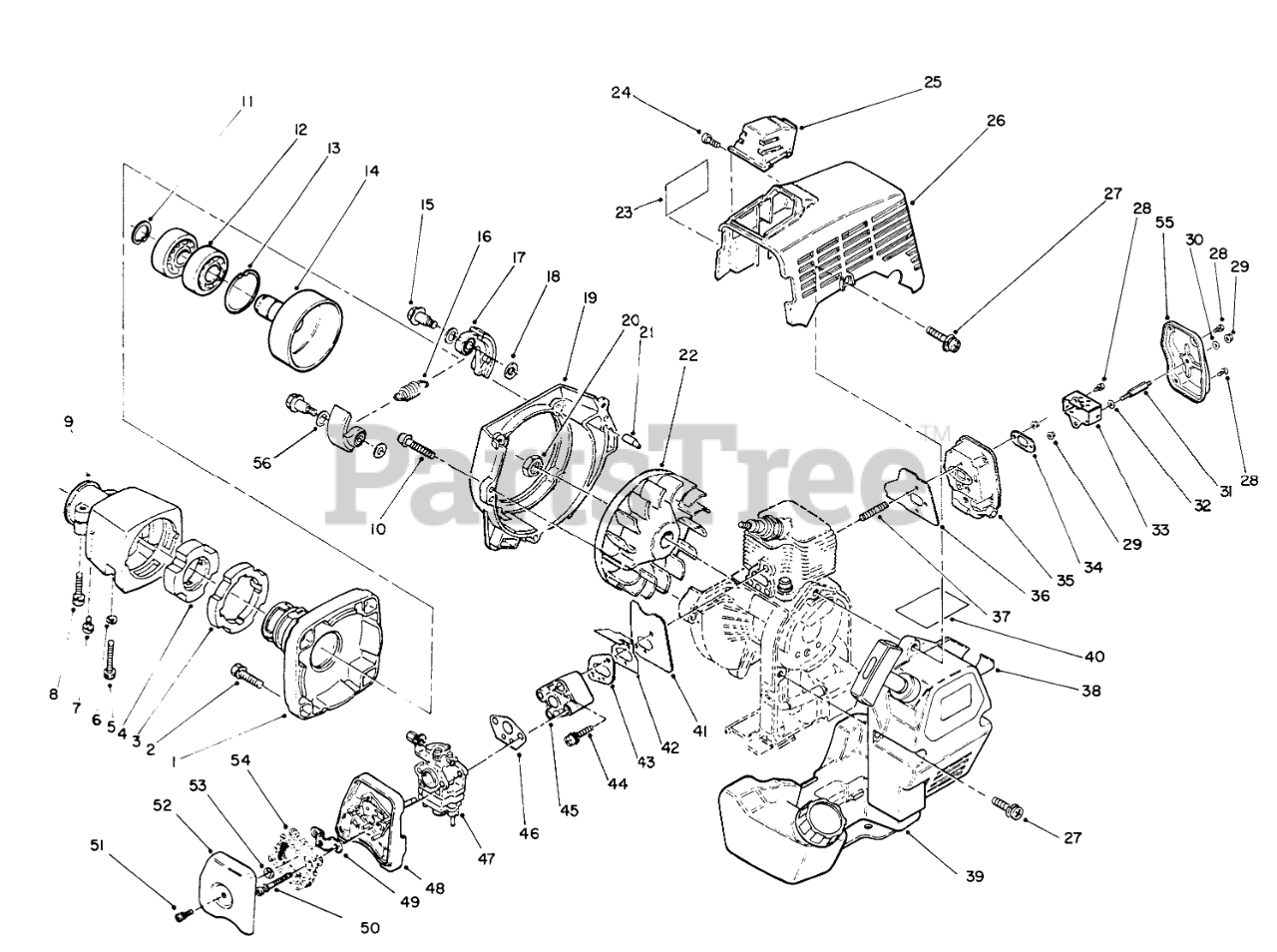

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-9740

Case-Clutch

$

$

Not available

2

Toro 54-4440

Bolt

$

$

Not available

3

Toro 54-6460

RUBBER, CUSHION (A)

$

$

Not available

4

Toro 54-6470

RUBBER, CUSHION (B)

$

$

Not available

5

Toro 54-6500

Bolt

$

$

Not available

6

Toro 56-8820

Washer-Lock

$

$

Not available

7

Toro 65-2550

Screw/Washer

$

$

Not available

8

Toro 54-5740

BOLT-WASHER/ENG

$

$

Not available

9

Toro 77-9750

Holder

$

$

Not available

10

Toro 54-6600

BOLT

$

$

Not available

11

Toro 54-5690

SNAP RING

$

$

Not available

12

Toro 54-5680

BALL BEARING

$

$

Not available

13

Toro 54-5670

SNAP RING

$

$

Not available

14

Toro 54-6920

DRUM, CLUTCH

$193.99

$

Usually ships in 3-6 days

0

15

Toro 82-2450

CLUTCH BOLT

$

$

Not available

16

Toro 77-9980

CLUTCH SPRING

$

$

Not available

17

Toro 77-9970

CLUTCH SHOE

$111.99

$

Usually ships in 3-6 days

0

Toro 54-6940

Clutch Assembly (Incl. Ref. #16 & 17)

Note: Not illustrated

$

$

Not available

18

Toro 54-6950

WASHER

$

$

Not available

19

Toro 77-9720

FAN CASE

$

$

Not available

20

Toro 54-4670

NUT

$

$

Not available

21

Toro 60-7590

PIN

$

$

Not available

22

Toro 77-9820

FAN

$

$

Not available

23

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

24

Toro 54-6890

SCREW & WASHER

$

$

Not available

25

Toro 77-1190

SPARK PLUG GUARD

$

$

Not available

26

Toro 77-9770

TOP COVER

$

$

Not available

27

Toro 77-1860

SCREW & WASHER

$

$

Not available

28

Toro 54-5730

SCREW & WASHER

$

$

Not available

29

Toro 77-1790

MUFFLER FLANGE NUT

$

$

Not available

30

Toro 65-4410

GASKET

$

$

Not available

31

Toro 77-9950

DUAL BOLT

$

$

Not available

32

Toro 65-0540

WASHER

$

$

Not available

33

Toro 77-9940

Baffle

$

$

Not available

34

Toro 77-9930

Plate
(Superseded to 65-4330)

$

$

Not available

35

Toro 77-9920

MUFFLER ASSEMBLY

$275.99

$

Usually ships in 3-6 days

0

36

Toro 77-9910

MUFFLER GASKET

$

$

Not available

37

Toro 77-9790

STUD BOLT

$

$

Not available

38

Toro 82-6180

RECOIL ASSEMBLY

$

$

Not available

39

Toro 88-0240

FUEL TANK ASM

$

$

Not available

40

Toro 84-8830

Decal-Fuel Mix

$

$

Not available

41

Toro 77-9870

INSULATOR GASKET

$

$

Not available

42

Toro 77-9860

PLATE

$

$

Not available

43

Toro 60-7920

INSULATOR GASKET

$11.99

$

Usually ships in 3-6 days

0

44

Toro 60-7930

SCREW & WASHER

$

$

Not available

45

Toro 77-1450

INSULATOR

$

$

Not available

46

Toro 77-1430

CARBURETOR GASKET

$6.99

$

Usually ships in 3-6 days

0

47

Toro 88-0280

CARBURETOR ASM

$

$

Not available

48

Toro 77-1760

CLEANER CASE

$50.99

$

Usually ships in 3-6 days

0

49

Toro 77-1750

BRACKET

$

$

Not available

50

Toro 54-4870

SCREW W/ WASHER

$3.99

$

In Stock, only 2 left!

0

51

Toro 60-7680

SCREW & WASHERE

$

$

Not available

52

Toro 77-1710

CLEANER COVER

$33.99

$

Usually ships in 3-6 days

0

53

Toro 77-1720

NUT

$9.99

$

In Stock, only 1 left!

0

54

Toro 77-1730

CLEANER ELEMENT

$24.99

$

Usually ships in 3-6 days

0

55

Toro 77-9960

Cover-Muffler

$

$

Not available

56

Toro 82-2460

Washer-Wave

$

$

Not available
