51675 (TC 5010) - Toro String Trimmer (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

String Trimmer

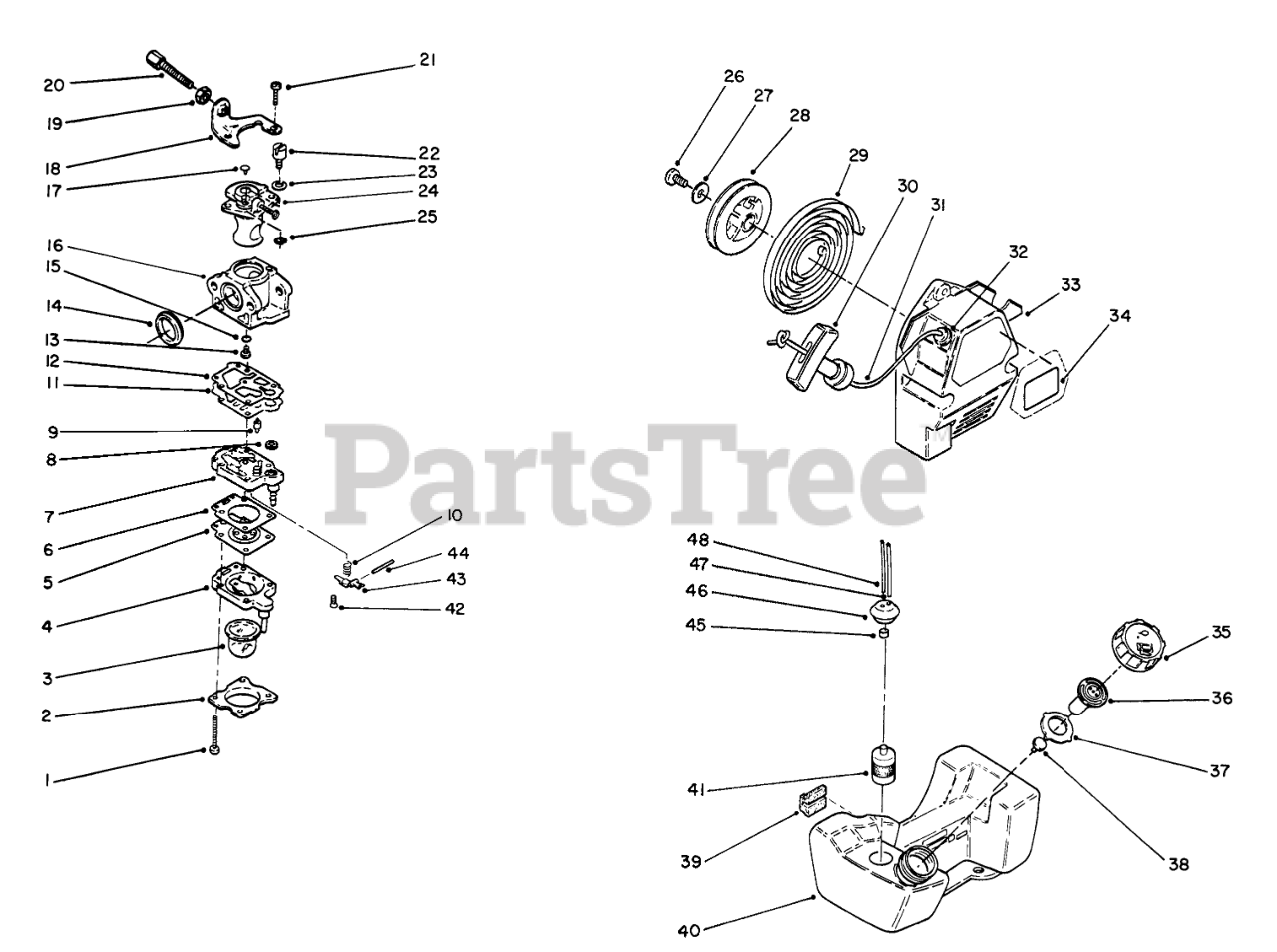

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 88-0330

Screw

$

$

Not available

2

Toro 88-0320

Cover-Primer

$

$

Not available

3

Toro 77-1670

PRIMER PUMP

$19.99

$

In Stock, only 1 left!

0

4

Toro 88-0310

Body-Primer

$

$

Not available

5

Toro 77-1650

DIAPHRAGM

$

$

Not available

6

Toro 88-0300

DIAPHRAGM GASKET

$

$

Not available

7

Toro 88-0290

Body Ass-y-Fuel Pump (Incl. Ref. #8)

$

$

Not available

8

Toro 77-1620

SCREEN

$

$

Not available

9

Toro 88-0340

NEEDLE VALVE

$

$

Not available

10

Toro 88-0350

Spring

$

$

Not available

11

Toro 77-1590

DIAPHRAGM

$

$

Not available

12

Toro 77-1580

DIAPHRAM GASKET

$19.99

$

Usually ships in 3-6 days

0

13

Toro 77-1570

MAIN JET

$

$

Not available

13

Toro 82-2540

Jet-High Altitude #41

$

$

Not available

14

Toro 77-1550

RUBBER CARB GASKET

$6.49

$

Usually ships in 3-6 days

0

15

Toro 77-1560

MAIN JET O-RING

$

$

Not available

16

Body-Carburetor (Ref.)

$

$

Not available

17

Toro 77-1530

Plug

$

$

Not available

18

Toro 77-1490

BRACKET

$

$

Not available

19

Toro 77-1480

LOCKNUT

$

$

Not available

20

Toro 77-1470

ADJUSTING SCREW

$

$

Not available

21

Toro 77-1500

SCREW

$

$

Not available

22

Toro 77-1510

Holder-Wire

$

$

Not available

23

Toro 77-9900

WASHER

$6.49

$

Usually ships in 3-6 days

0

24

Toro 77-1540

THROTTLE VALVE

$

$

Not available

25

Toro 77-1520

Clip

$

$

Not available

Toro 88-0280

Carburetor Assembly (Incl. Ref. #1-25)

Note: Not illustrated

$

$

Not available

Toro 88-0400

Kit-Carburetor Repair (Incl. Ref. #5, 6, 8, 11-15 & #46 page 5)

Note: Not illustrated

$240.99

$

Usually ships in 3-6 days

0

26

Toro 60-8220

SCREW

$

$

Not available

27

Toro 54-5400

Washer

$

$

Not available

28

Toro 60-8230

REEL

$

$

Not available

29

Toro 54-5420

SPRING

$

$

Not available

30

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

31

Toro 54-6370

Rope-Recoil
(Superseded to 65-3270)

$

$

Not available

32

Toro 77-1930

GUIDE

$

$

Not available

33

Toro 82-6170

RECOIL CASE

$257.99

$

Usually ships in 3-6 days

0

34

Toro 76-0790

Decal-Toro

$

$

Not available

Toro 82-6180

Recoil Assembly (Incl. Ref. #26-33)

Note: Not illustrated

$

$

Not available

35

Toro 77-1990

FUEL TANK CAP

$37.99

$

Usually ships in 3-6 days

0

36

Toro 77-2000

BREATHER VALVE

$38.99

$

Usually ships in 3-6 days

0

37

Toro 77-2010

PACKING

$14.99

$

Usually ships in 3-6 days

0

38

Toro 77-2020

CAP

$

$

Not available

Toro 77-1980

Cap Assembly (Incl. Ref. #35-38)

Note: Not illustrated

$54.99

$

Usually ships in 3-6 days

0

39

Toro 60-8280

PAD

$

$

Not available

40

Toro 88-0240

Tank Assembly-Fuel (Incl. Ref. #35-38 & 48)

$

$

Not available

41

Toro 88-0250

FUEL FILTER

$

$

Not available

42

Toro 88-0380

Screw

$

$

Not available

43

Toro 88-0360

Lever

$

$

Not available

44

Toro 88-0370

Pin

$

$

Not available

45

Toro 77-1970

COLLAR

$

$

Not available

46

Toro 77-2030

FUEL TANK GROMMET

$11.99

$

Usually ships in 3-6 days

0

47

Toro 88-0390

FUEL TUBE

$6.99

$

Usually ships in 3-6 days

0

48

Toro 77-1960

RETURN FUEL HOSE

$27.99

$

Usually ships in 3-6 days

0
