51675 (TC 5010) - Toro String Trimmer (SN: 039000001 - 039999999) (1993) CARBURETOR ASSEMBLY Parts Diagram

String Trimmer

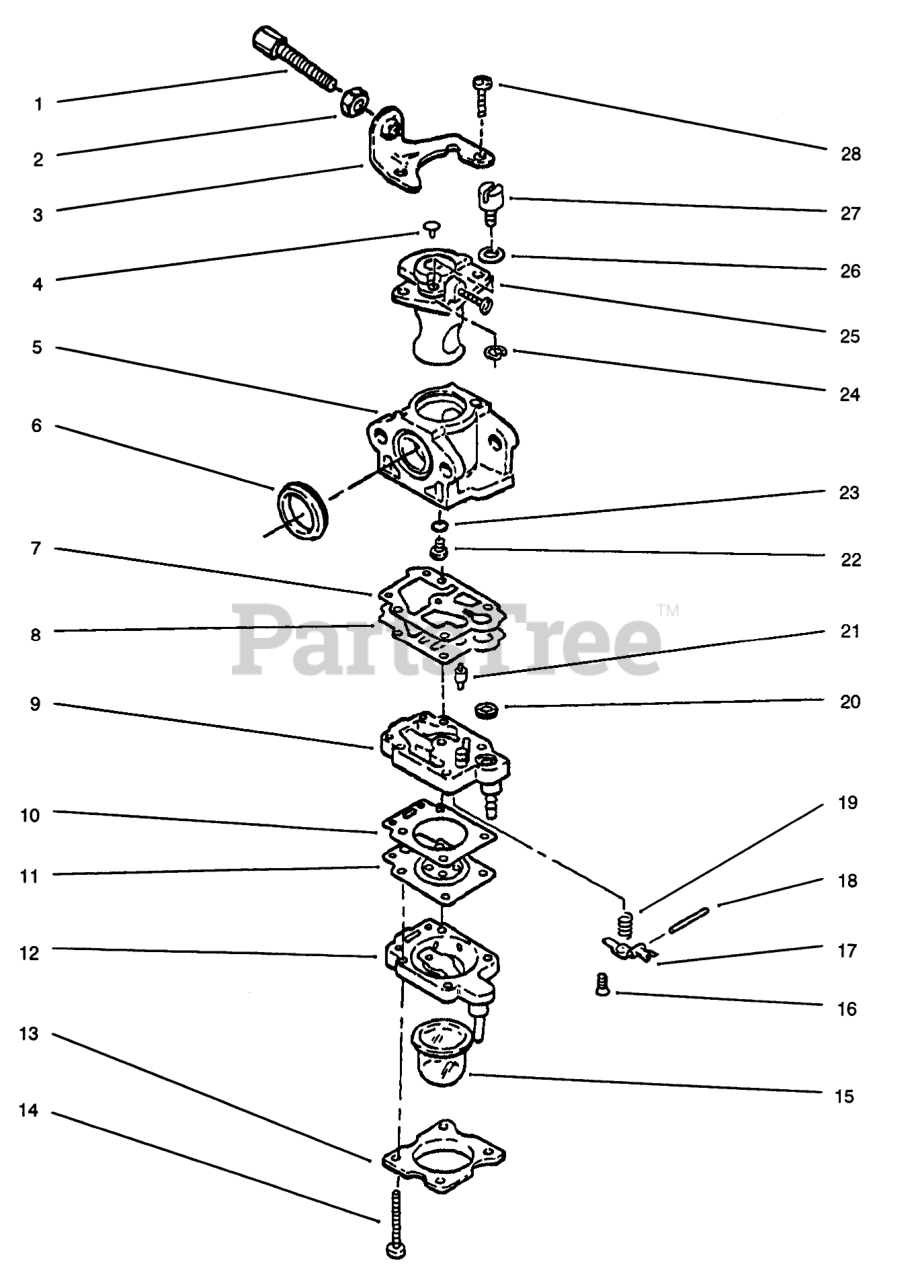

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 77-1470

ADJUSTING SCREW

$

$

Not available

2

Toro 77-1480

LOCKNUT

$

$

Not available

3

Toro 77-1490

BRACKET

$

$

Not available

4

Toro 77-1530

Plug

$

$

Not available

5

Body-Carburetor (Ref.)

$

$

Not available

6

Toro 77-1550

RUBBER CARB GASKET

$6.49

$

Usually ships in 3-6 days

0

7

Toro 77-1580

DIAPHRAM GASKET

$19.99

$

Usually ships in 3-6 days

0

8

Toro 77-1590

DIAPHRAGM

$

$

Not available

9

Toro 88-0290

Body Ass-y-Fuel Pump (Incl. Ref. #20)

$

$

Not available

10

Toro 88-0300

DIAPHRAGM GASKET

$

$

Not available

11

Toro 77-1650

DIAPHRAGM

$

$

Not available

12

Toro 88-0310

Body-Primer

$

$

Not available

13

Toro 88-0320

Cover-Primer

$

$

Not available

14

Toro 88-0330

Screw

$

$

Not available

15

Toro 77-1670

PRIMER PUMP

$19.99

$

In Stock, only 1 left!

0

16

Toro 88-0380

Screw

$

$

Not available

17

Toro 88-0360

Lever

$

$

Not available

18

Toro 88-0370

Pin

$

$

Not available

19

Toro 88-0350

Spring

$

$

Not available

20

Toro 77-1620

SCREEN

$

$

Not available

21

Toro 88-0340

NEEDLE VALVE

$

$

Not available

22

Toro 77-1570

MAIN JET

$

$

Not available

Toro 82-2540

Jet-High Altitude #41

Note: Not Illustrated.

$

$

Not available

23

Toro 77-1560

MAIN JET O-RING

$

$

Not available

24

Toro 77-1520

Clip

$

$

Not available

25

Toro 77-1540

THROTTLE VALVE

$

$

Not available

26

Toro 77-9900

WASHER

$6.49

$

Usually ships in 3-6 days

0

27

Toro 77-1510

Holder-Wire

$

$

Not available

28

Toro 77-1500

SCREW

$

$

Not available

Toro 88-0280

Carburetor Assembly (Incl. Ref. #1-28)

Note: Not Illustrated.

$

$

Not available

Toro 88-0400

Kit-Carburetor Repair (Incl. Ref. #6-8, 10, 11, 20, 22, 23 & #46 page 5)

Note: Not Illustrated.

$240.99

$

Usually ships in 3-6 days

0
