51675 (TC 5010) - Toro String Trimmer (SN: 039000001 - 039999999) (1993) RECOIL ASSEMBLY Parts Diagram

String Trimmer

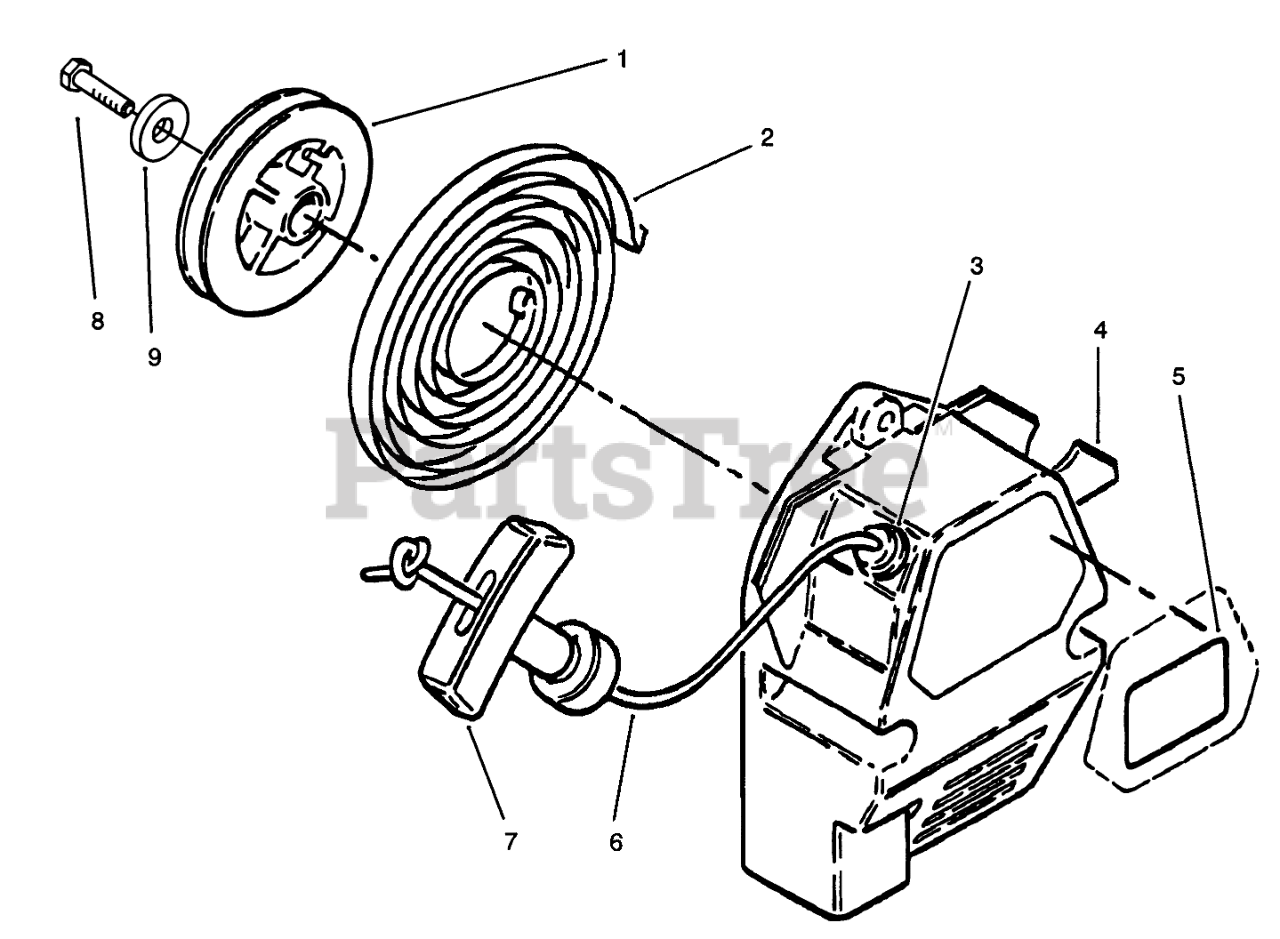

RECOIL ASSEMBLY Parts Diagram

  • Title

1

Toro 60-8230

REEL

$

$

Not available

2

Toro 54-5420

SPRING

$

$

Not available

3

Toro 77-1930

GUIDE

$

$

Not available

4

Toro 82-6170

RECOIL CASE

$257.99

$

Usually ships in 3-6 days

0

5

Toro 76-0790

Decal-Toro

$

$

Not available

6

Toro 54-6370

Rope-Recoil
(Superseded to 65-3270)

$

$

Not available

7

Toro 54-5440

Knob-Starter
(Superseded to 56-8970)

$24.99

$

Usually ships in 3-6 days

0

8

Toro 60-8220

SCREW

$

$

Not available

9

Toro 54-5400

Washer

$

$

Not available

Toro 82-6180

Recoil Assembly (Incl. Ref. #1-9)

Note: Not illustrated

$

$

Not available
