51700 - Toro 21cc String Trimmer (SN: 008000001 - 008999999) (1978) HANDLE AND CUTTER HEAD ASSEMBLY Parts Diagram

21cc String Trimmer

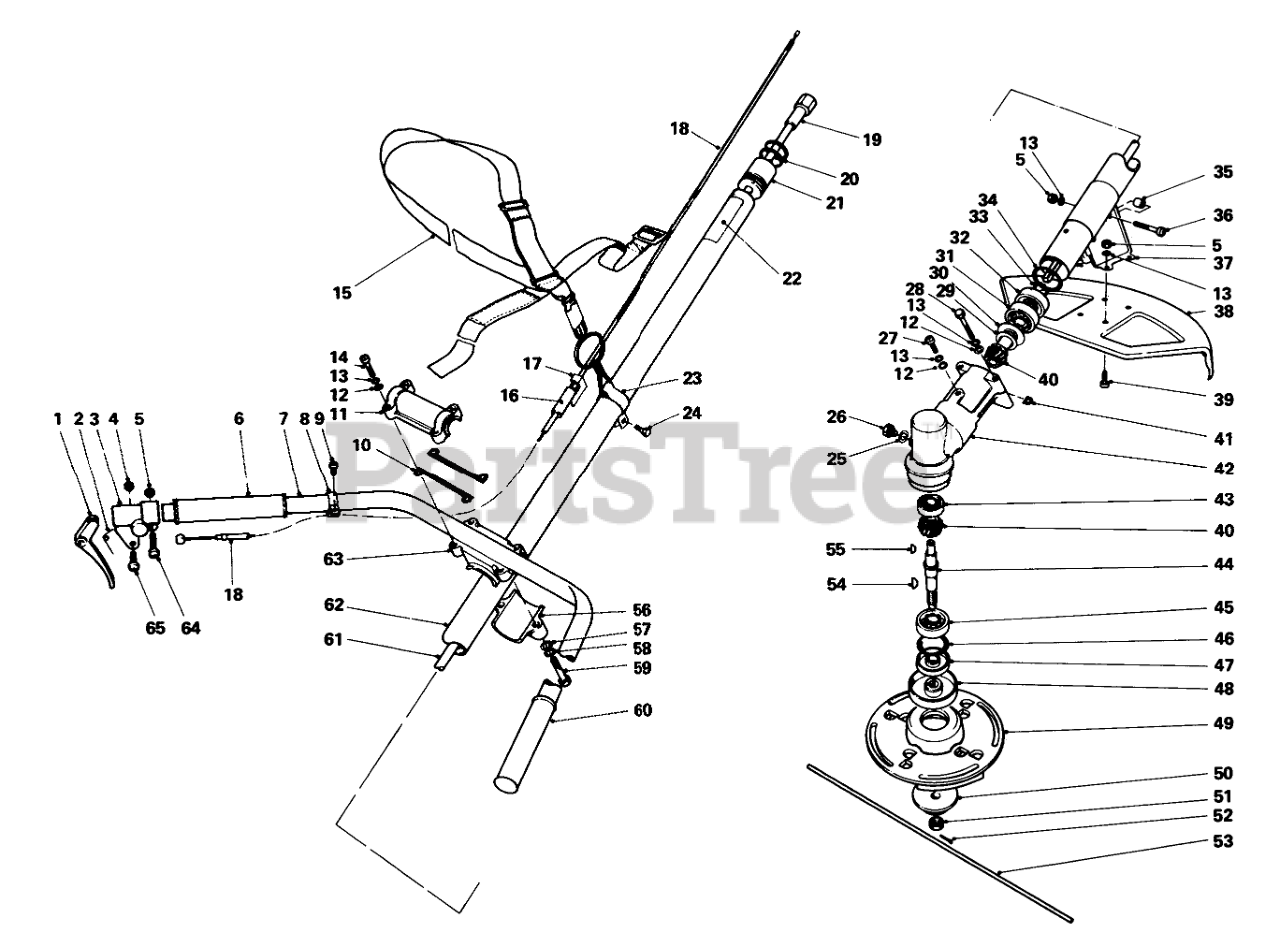

HANDLE AND CUTTER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 41-7350

Throttle Trigger

$

$

Not available

2

Toro 41-3420

Return Spring

$

$

Not available

3

Toro 41-7380

Bracket, Throttle Trigger

$

$

Not available

4

Toro 41-4250

Nut

$

$

Not available

5

Toro 41-5350

Nut
(Superseded to 47-6390)

$

$

Not available

6

Toro 235-25

Right Hand Grip

$

$

Not available

7

Toro 33-7520

U-Handle

$

$

Not available

8

Toro 41-3450

Band

$

$

Not available

9

Toro 41-5080

Screw

$

$

Not available

10

Toro 41-4240

Spacer

$

$

Not available

11

Toro 41-4210

Handle Bracket, Upper

$

$

Not available

12

Toro 41-5440

WASHER

$

$

Not available

13

Toro 41-5490

Washer
(Superseded to 71-1150)

$

$

Not available

14

Toro 41-4810

Bolt

$

$

Not available

15

Toro 33-7530

Shoulder Belt

$

$

Not available

16

Toro 41-3370

TUBE

$

$

Not available

17

Toro 41-3480

Clamp

$

$

Not available

18

Toro 41-3300

THROTTLE CABLE

$

$

Not available

19

Toro 41-4290

Coupler

$

$

Not available

20

Toro 41-5590

O-Ring

$

$

Not available

21

Toro 41-4300

Bushing

$

$

Not available

22

Toro 41-7550

Decal, Caution

$

$

Not available

23

Toro 41-4030

Swivel Hook

$

$

Not available

24

Toro 41-4790

Bolt

$

$

Not available

25

Toro 41-7530

Gasket

$

$

Not available

26

Toro 41-4870

Bolt

$

$

Not available

27

Toro 41-5190

SCREW

$

$

Not available

28

Toro 41-4820

Bolt

$

$

Not available

29

Toro 41-4470

Washer

$

$

Not available

30

Toro 41-4460

Washer

$

$

Not available

31

Toro 41-5600

Ball Bearing

$

$

Not available

32

Toro 41-5620

Ball Bearing

$

$

Not available

33

Toro 41-5550

Circlip

$

$

Not available

34

Toro 41-5560

Circlip

$

$

Not available

35

Toro 41-4670

Spacer

$

$

Not available

36

Toro 41-5100

Screw

$

$

Not available

37

Toro 41-4660

Bracket-Head Guard

$

$

Not available

38

Toro 41-4650

Shield

$

$

Not available

39

Toro 41-5070

SCREW

$

$

Not available

40

Toro 41-4390

Gear Set

$

$

Not available

41

Toro 41-4370

Spacer

$

$

Not available

42

Toro 41-4530

Gear Housing

$

$

Not available

43

Toro 41-5610

Ball Bearing

$

$

Not available

44

Toro 41-4410

Shaft-PTO

$

$

Not available

45

Toro 41-5660

Ball Bearing

$

$

Not available

46

Toro 41-5580

Circlip

$

$

Not available

47

Toro 41-4540

Oilseal

$

$

Not available

48

Toro 41-4420

Plate-Blade Fixing

$

$

Not available

49

Toro 33-6400

Cutter Head
(Superseded to 46-2810)

$

$

Not available

50

Toro 41-4430

WASHER

$

$

Not available

51

Toro 41-5410

NUT

$9.49

$

Usually ships in 3-6 days

0

52

Toro 40-3180

Cotter Pin

$

$

Currently unavailable

53

Toro 40-3180

Cotter Pin

$

$

Currently unavailable

Toro 40-3190

Filament Line, Pkg. of 100

$

$

Currently unavailable

54

Toro 41-4490

Woodruff Key

$

$

Not available

55

Toro 41-0210

Woodruff Key

$

$

Not available

56

Toro 41-4230

Handle Bracket, Lower

$

$

Not available

57

Toro 41-5450

Washer
(Superseded to 3256-60)

$2.49

$

Usually ships in 3-6 days

0

58

Toro 41-5500

Washer

$

$

Not available

59

Toro 41-4860

Bolt

$

$

Not available

60

Toro 235-24

LH GRIP

$

$

Not available

61

Toro 41-4280

Drive Shaft

$

$

Not available

62

Toro 41-7490

Housing, Driving Shaft

$

$

Not available

63

Toro 41-4220

Body, Handle Bracket

$

$

Not available

64

Toro 41-5240

Bolt

$

$

Not available

65

Toro 41-3460

Screw

$

$

Not available

Toro 41-4200

Handle Bracket Assy. (Incl. Ref. #10-14, 56-59 & 61)

Note: Not illustrated

$

$

Not available

Toro 41-4640

Safety Guard Assy. (Incl. Ref. #5, 13 & 35-39)

Note: Not illustrated

$

$

Not available

Toro 41-7520

Gear Housing Assy. (Incl. Ref. #12-13, 25-34, 40-48, 50-52 & 54-55)

Note: Not illustrated

$

$

Not available

Toro 40-3170

80 Tooth Blade
(Superseded to 51-1250)

Note: Not illustrated

$115.99

$

Usually ships in 3-6 days

0

Toro 40-3160

Weed Blade

Note: Not illustrated

$

$

Not available

Toro 41-6890

Adapter-Blade
(Superseded to 41-4440)

Note: Not illustrated

$100.99

$

Usually ships in 3-6 days

0
