51730 - Lawn-Boy Hedge Trimmer (SN: 000000001 - 000999999) (1990) GEAR BOX AND BLADE ASSEMBLY Parts Diagram

Hedge Trimmer

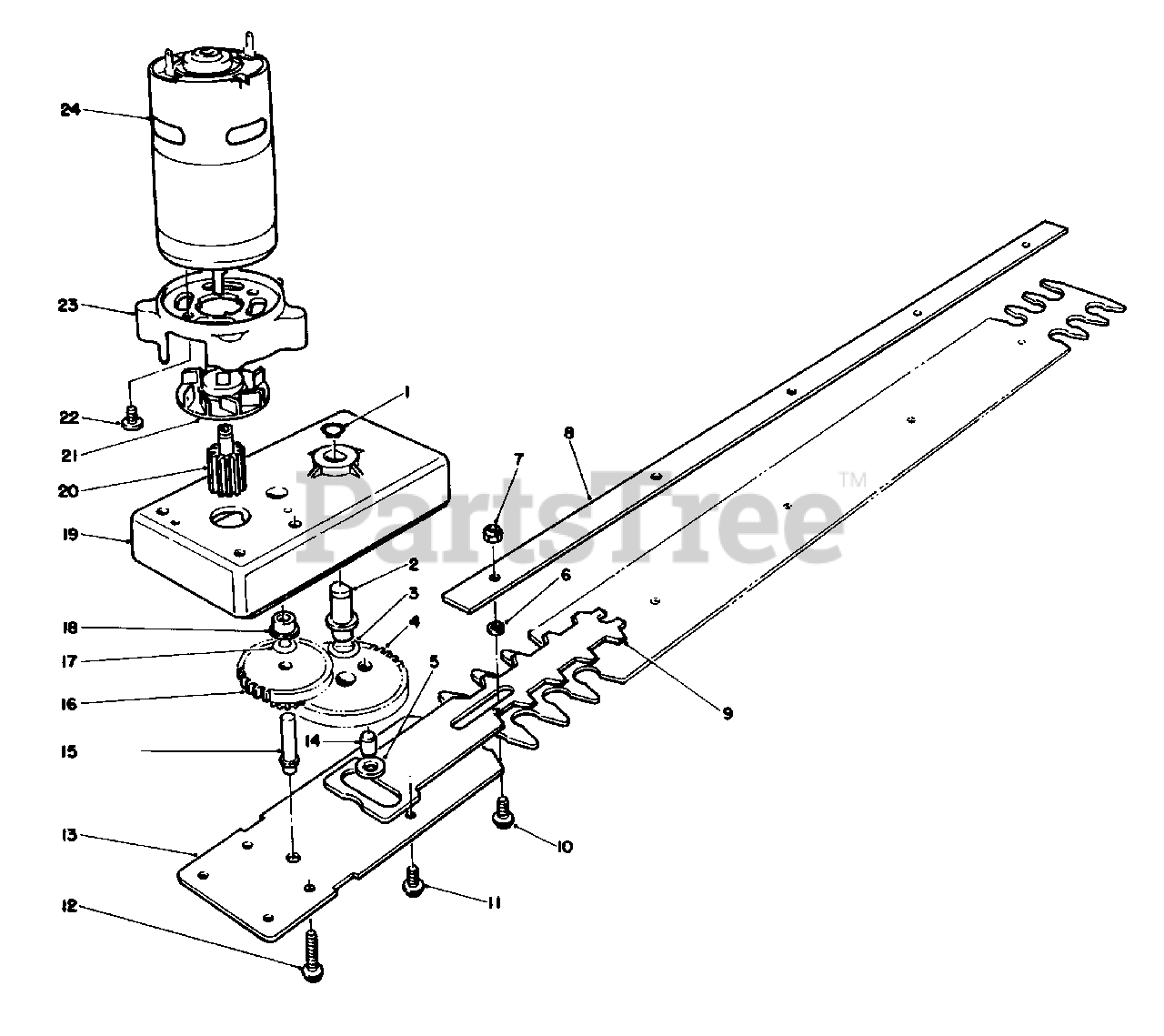

GEAR BOX AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Ring-Retaining

$

$

Not available

2

Shaft-Driver

$

$

Not available

3

Lawn-Boy 64-8200

Washer-Wave

$

$

Not available

4

Lawn-Boy 64-8010

Gear-Drive (Incl. Ref. #14)

$

$

Not available

5

Lawn-Boy 64-7880

Bushing-Gear, Drive

$

$

Not available

6

Lawn-Boy 64-8080

Bushing-Blade

$

$

Not available

7

Lawn-Boy 3296-54

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 64-8070

Retainer-Blade

$

$

Not available

9

Lawn-Boy 64-8050

Blade-Cutting

$

$

Not available

10

Lawn-Boy 73-2610

Screw-Hex Washer Hd.

$

$

Not available

11

Lawn-Boy 32144-87

Screw-Hex Washer Hd.

$1.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 32144-103

Screw-Hex Washer Hd.

$

$

Not available

13

Blade-Bottom

$

$

Not available

14

Lawn-Boy 64-8030

Pin-Drive

$

$

Currently unavailable

15

Lawn-Boy 64-7950

Shaft-Idler

$

$

Not available

16

Lawn-Boy 64-7960

Gear-Idler

$

$

Not available

17

Lawn-Boy 64-8000

Washer-Wave

$

$

Not available

18

Bearing-Idler

$

$

Not available

19

Lawn-Boy 73-1780

Housing-Gear Assembly (Incl Ref. 2 & 18)

$

$

Not available

20

Gear-Motor

$

$

Not available

21

Fan-Motor

$

$

Not available

22

Screw-Phil. Pan Hd.

$

$

Not available

23

Support-Motor

$

$

Not available

24

Lawn-Boy 64-7900

Motor Assembly (Incl. Ref. #20-23)

$

$

Not available

Lawn-Boy 73-4730

Gear Box & Blade Complete (Incl. Ref. #1-24)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 64-8040

Blade Assembly (Incl. Ref. #6-10 & 13)

Note: Not Illustrated

$

$

Not available
