51790 - Toro Mini Blower, With Battery Pack (SN: 010000001 - 019999999) (1991) BLOWER HOUSING & MOTOR ASSEMBLY Parts Diagram

Mini Blower, With Battery Pack

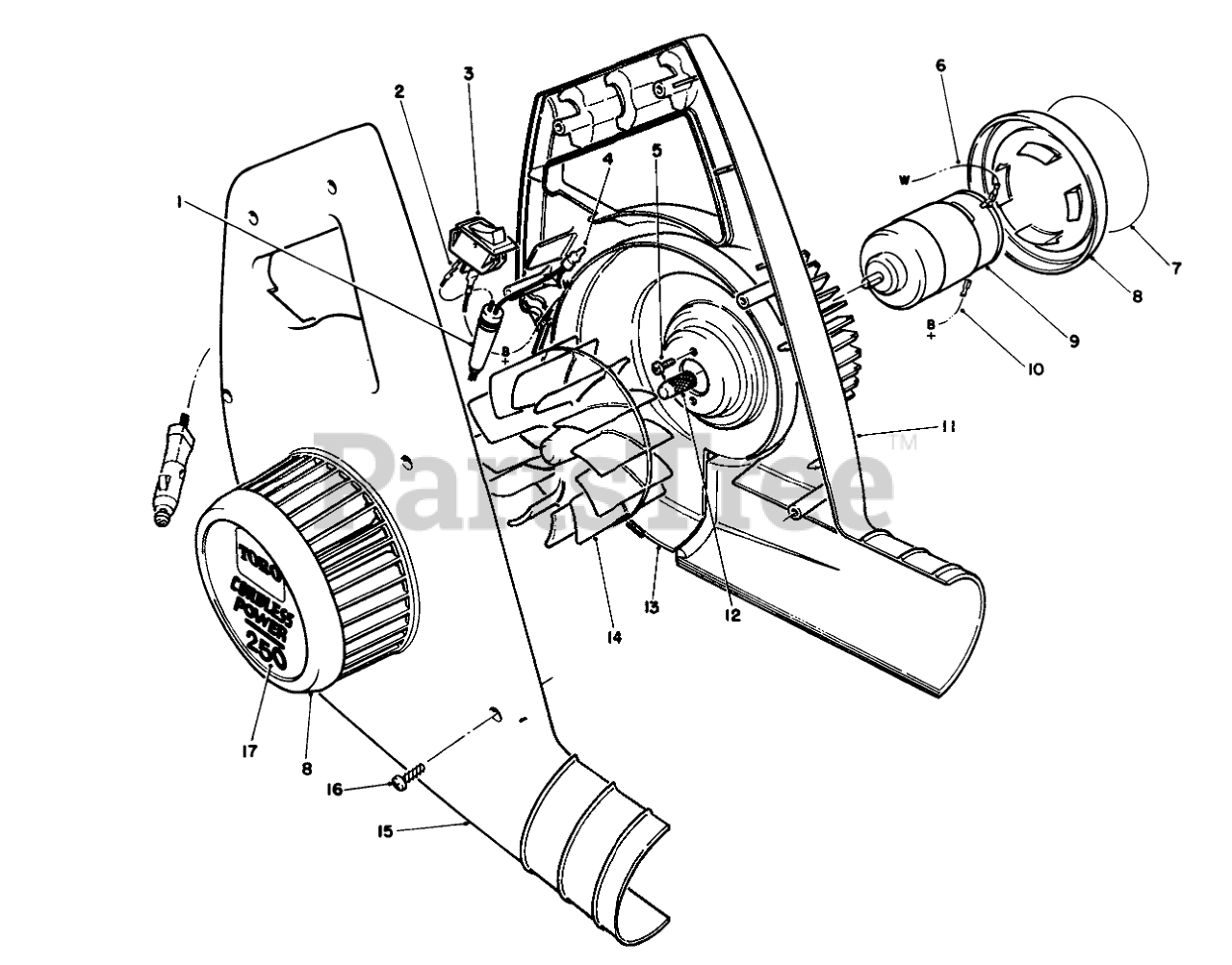

BLOWER HOUSING & MOTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 73-3301

POWER SUPPLY CORD

$

$

Not available

2

Terminal-Female

$

$

Not available

3

Toro 64-5581

ROCKER SWITCH W/LETTERS

$

$

Not available

4

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

5

Toro 64-7720

SCREW

$

$

Not available

6

Toro 73-3381

WIRE ASSEMBLY

$

$

Not available

7

Toro 73-2480

LABEL-SERIAL (250 CL)

$

$

Not available

8

Toro 73-2410

MINI BV-INTAKE COVER

$

$

Not available

9

Toro 73-4920

Motor (Incl. Ref. #5, & 12-14)

$

$

Not available

10

Toro 73-3380

WIRE ASSEMBLY

$

$

Not available

11

Toro 73-2390

Housing-L.H.

$

$

Not available

12

Shaft-Knurled

$

$

Not available

13

Cover-Motor

$

$

Not available

14

Impeller

$

$

Not available

15

Toro 73-2400

HOUSING,RH,MINI-BLOWER

$

$

Not available

16

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

17

Toro 73-2500

COVER LABEL(250 CORDLES

$

$

Not available
