518 (518135) - Cub Cadet Rear-Engine Riding Mower (1985) Parts IV Parts Diagram

Rear-Engine Riding Mower

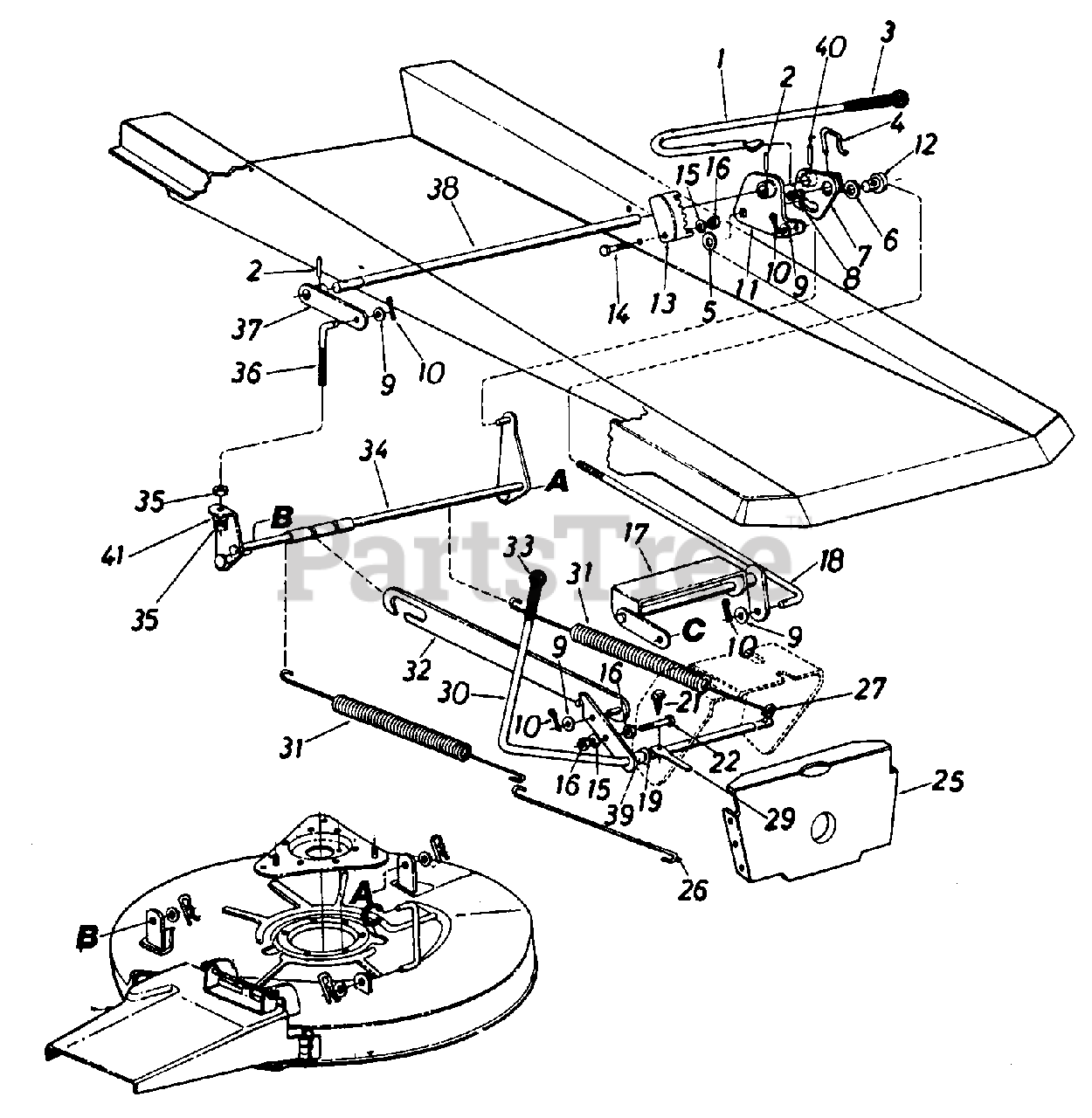

Parts IV Parts Diagram

  • Title

1

Cub Cadet 747-0418

HANDLE-DECK LIFT

$

$

Currently unavailable

2

Cub Cadet 715-0114

PIN-SPRING SPIRAL 1/4X1.5 HEAVY DT

$8.49

$

In Stock, Qty 9

0

3

Cub Cadet 720-0143

GRIP

$

$

Not available

4

Cub Cadet 714-0166

PIN

$

$

Not available

5

Cub Cadet 736-0162

WASHER-FL-.635 ID X .93 OD

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 15576

BRACKET ASSY-LIFT

$

$

Currently unavailable

8

Cub Cadet 732-0430

SPRING-COMPRESSION

$

$

Not available

9

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 1 left!

0

11

Cub Cadet 15578

BRACKET ASSY-LIFT-LH

$

$

Not available

12

Cub Cadet 711-0749

FERRULE

$

$

Not available

13

Cub Cadet 15581

BRACKET-INDEX

$

$

Not available

14

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 15573

LIFT ASSY-DECK-FR

$

$

Not available

18

Cub Cadet 747-0426

ROD-CONNECTING

$

$

Not available

19

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0805

SCREW-HEX
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

25

Cub Cadet 15613

BRACKET-PIVOT BAR

$

$

Not available

26

Cub Cadet 732-0451

SPRING-HOOK
(Superseded to 732-0451B)

$

$

Not available

27

Cub Cadet 711-0753

PIN-CLEVIS

$

$

Not available

29

Cub Cadet 732-0435

ACTUATOR-SWITCH

$

$

Not available

30

Cub Cadet 15568

LEVER ASSY-BLADE ENG
(Superseded to 15568A)

$

$

Not available

31

Cub Cadet 732-0440

SPRING-EXTENSION

$26.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 15644

BRACKET ASSY-DECK DR

$

$

Not available

33

Cub Cadet 720-0143

GRIP

$

$

Not available

34

Cub Cadet 15600

LINK ASSY-RR

$

$

Currently unavailable

35

Cub Cadet 712-0798

NUT-HEX 3/8-16

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-0866

SCREW-DECK ADJ 3/8-16 THD

$

$

Not available

37

Cub Cadet 15609

BRACKET ASSY-LIFT-RH

$

$

Not available

38

Cub Cadet 738-0550

SHAFT-HGT ADJ-RR

$

$

Not available

39

Cub Cadet 750-0515

SPACER

$4.49

$

In Stock, Qty 7

0

40

Cub Cadet 715-0134

PIN-SPRING SPIR 3/16 X 1.50
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

41

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.49

$

In Stock, Qty 20+

0
