51807 - Gravely Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton Frame Parts Diagram

Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton

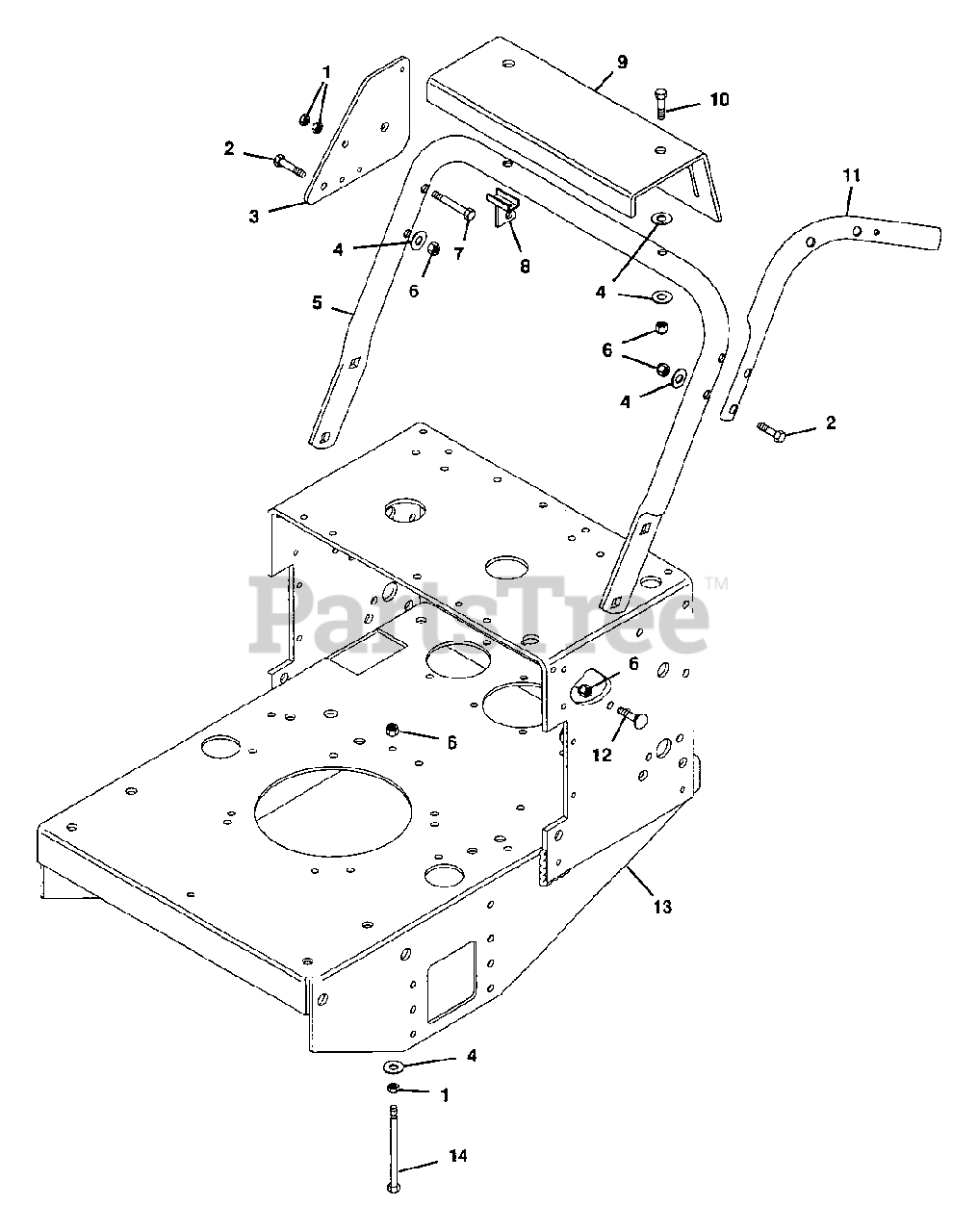

Frame Parts Diagram

  • Title

1

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

3

Gravely 051126

PLT,SPEED CTL LEVER
(Superseded to 08843600)

$

$

Not available

4

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 049032

TUBE, HANDLEBAR MOUNTING
(Superseded to 08868500)

$

$

Not available

6

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

7

Gravely 180134

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 051133

WLDMT,PTO LEVER MTG
(Superseded to 08844100)

$

$

Not available

9

Gravely 051148

PNL,SILK SCREENED
(Superseded to 21296000)

$

$

Not available

10

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 049008

HANDLEBAR,L.H.
(Superseded to 08869300)

$

$

Not available

Gravely 049009

HANDLEBAR,R.H.
(Superseded to 08869400)

$

$

Not available

12

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 051104

WELDMENT, FRAME
(Superseded to 04900700)

$284.99

$

Usually ships in 4-12 days

0

14

Gravely 191163

BLT-HEX .38-16X4.00 GR5 YWZC
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0
