51807 - Gravely Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton HYDRAULIC SYSTEM Parts Diagram

Pro 300 Walk-Behind Mower, 16hp Briggs & Stratton

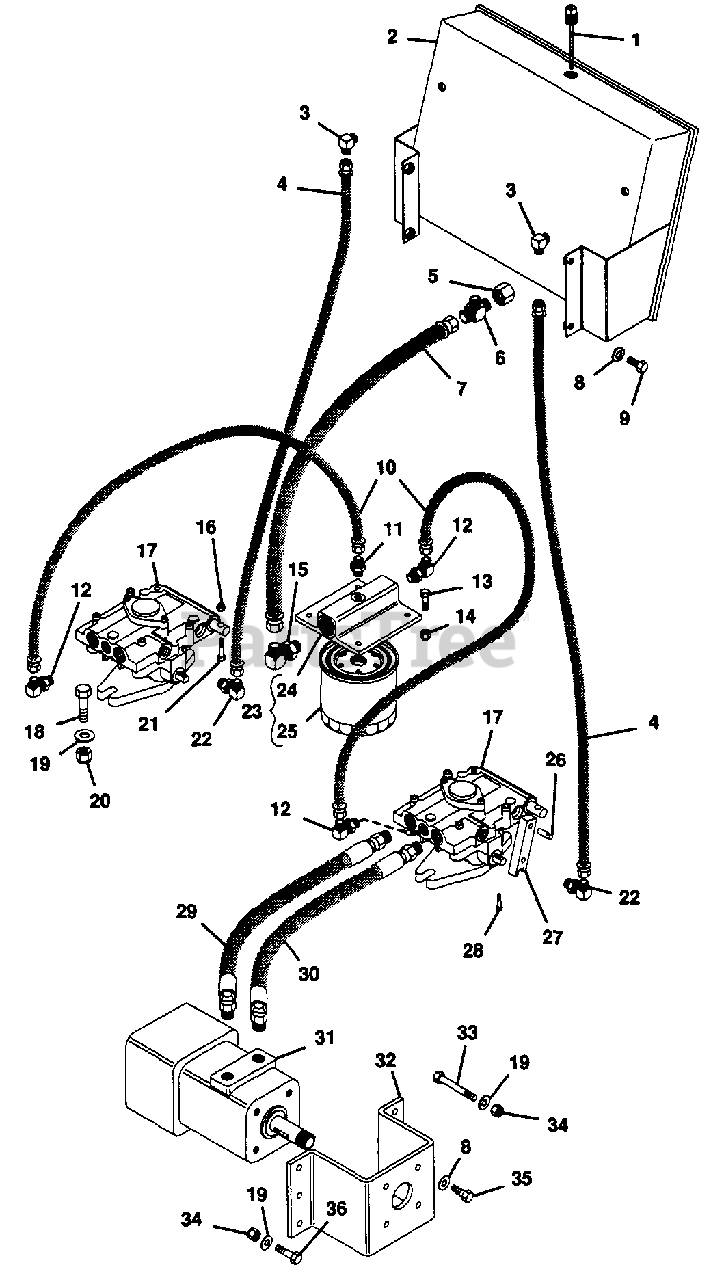

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 022457

Gauge, Hydraulic Tank Level
(Superseded to 08801900)

$

$

Not available

2

Gravely 051280

Tank, Hydraulic Oil
(Superseded to 58800500)

$

$

Not available

3

Gravely 035645

Adaptor, 2501-6-4 90 Deg. Elbow
(Superseded to 07021900)

$

$

Not available

4

Gravely 039847

Hose, Hyd. Valve to Tank
(Superseded to 08811300)

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 051285

Capnut, 304-C-8
(Superseded to 06522300)

$

$

Not available

6

Gravely 051284

Adaptor, 2601-8-8-6 Side Tee
(Superseded to 07018500)

$

$

Not available

7

Gravely 051283

Hose, Tank to Filter
(Superseded to 08845300)

$

$

Not available

8

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

9

Gravely 180120

Bolt, Hex 3/8-16x.75
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

10

Gravely 051281

Hose, Oil Filter to Pump
(Superseded to 08845200)

$

$

Not available

11

Gravely 021286

Adaptor, 0503-4-4
(Superseded to 08801500)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 018826

Adaptor, 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

13

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

14

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

15

Gravely 050961

Adaptor, P-H #2503-8-8
(Superseded to 07018200)

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 051146

Pump, Variable Displace
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

18

Gravely 180123

Bolt, Hex 3/8-16x1.125

$

$

Not available

19

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 180024

Bolt, Hex 1/4-20x1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

22

Gravely 018828

Adaptor, 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

23

Gravely 051142

Assembly, Spin-On Lube
(Superseded to 08844700)

$

$

Not available

24

Gravely 051143

Assembly, Head
(Superseded to 08157900)

$

$

Not available

25

Gravely 050968

Element
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

26

Gravely 051889

Pin, Dowel
(Superseded to 05808000)

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 051116

Arm, Pump Actuating
(Superseded to 08880700)

$

$

Not available

28

Gravely 418934

Screw, Cap 10-24x.75 Hex Socket
(Superseded to 05932900)

$

$

Not available

29

Gravely 051231

Asm, Hose Wheel Motor to Pump
(Superseded to 58803800)

$149.99

$

Usually ships in 4-12 days

0

30

Gravely 051232

Asm, Hose Wheel Motor to Pump
(Superseded to 58803900)

$168.99

$

Usually ships in 4-12 days

0

31

Gravely 051130

Motor, Hydraulic Wheel
(Superseded to 08864000)

$

$

Not available

32

Gravely 051106

Bracket, Wheel Motor
(Superseded to 08842400)

$14.99

$

Usually ships in 4-12 days

0

33

Gravely 044609

Bolt, Hex 3/8-16x2.5
(Superseded to 05943100)

$3.49

$

In Stock, only 3 left!

0

34

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

35

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

36

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
