51815 - Toro 20" Dual Action Hedge Trimmer (SN: 069000001 - 069999999) (1996) HOUSING AND HANDLE ASSEMBLY Parts Diagram

20" Dual Action Hedge Trimmer

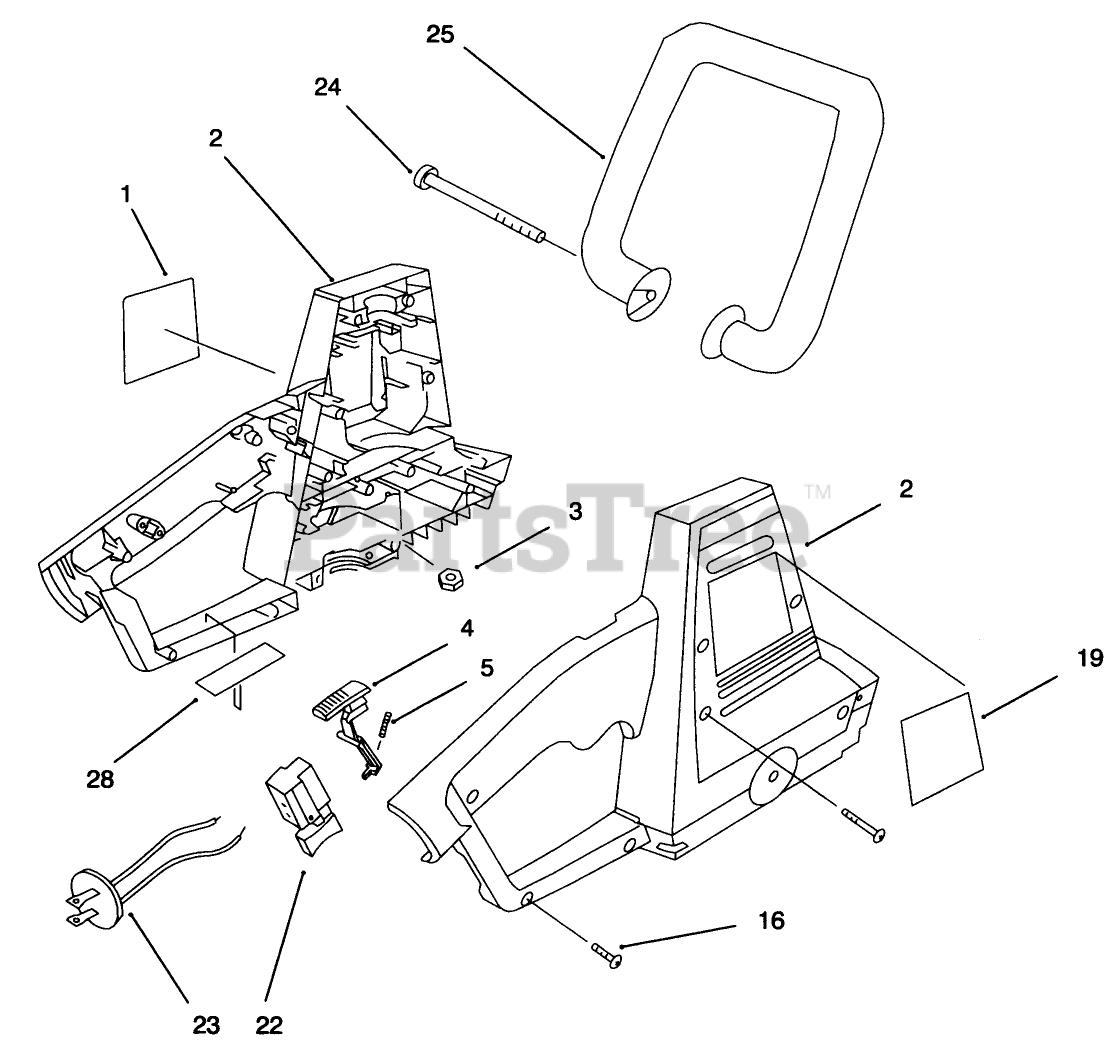

HOUSING AND HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 181474

PLATE - LOGO

$

$

Not available

Toro 181475

PLATE - LOGO

Note: Not illustrated

$

$

Not available

2

Toro 181476

ASSEMBLY - HOUSING

$

$

Not available

3

Toro 181426

NUT - HEX #8-32

$

$

Not available

4

Toro 181484

BUTTON - LOCK-OFF

$

$

Not available

5

Toro 181407

SPRING

$

$

Not available

16

Toro 181433

SCREW

$

$

Not available

19

Toro 181435

LABEL - WARNING

$

$

Not available

22

Toro 181405

SWITCH

$

$

Not available

23

Toro 180443

ASSEMBLY - DISC

$

$

Not available

24

Toro 180403

SCREW

$

$

Currently unavailable

25

Toro 180445

HANDLE - FRONT

$96.99

$

Usually ships in 3-6 days

0

28

Toro 181480

PLATE - DATA

$

$

Not available

Toro 181481

PLATE - DATA

Note: Not illustrated

$

$

Not available
