519 (251-331-736) - MasterCut by MTD Hedge Trimmer (1991) (Home Quarters) Parts Parts Diagram

Hedge Trimmer

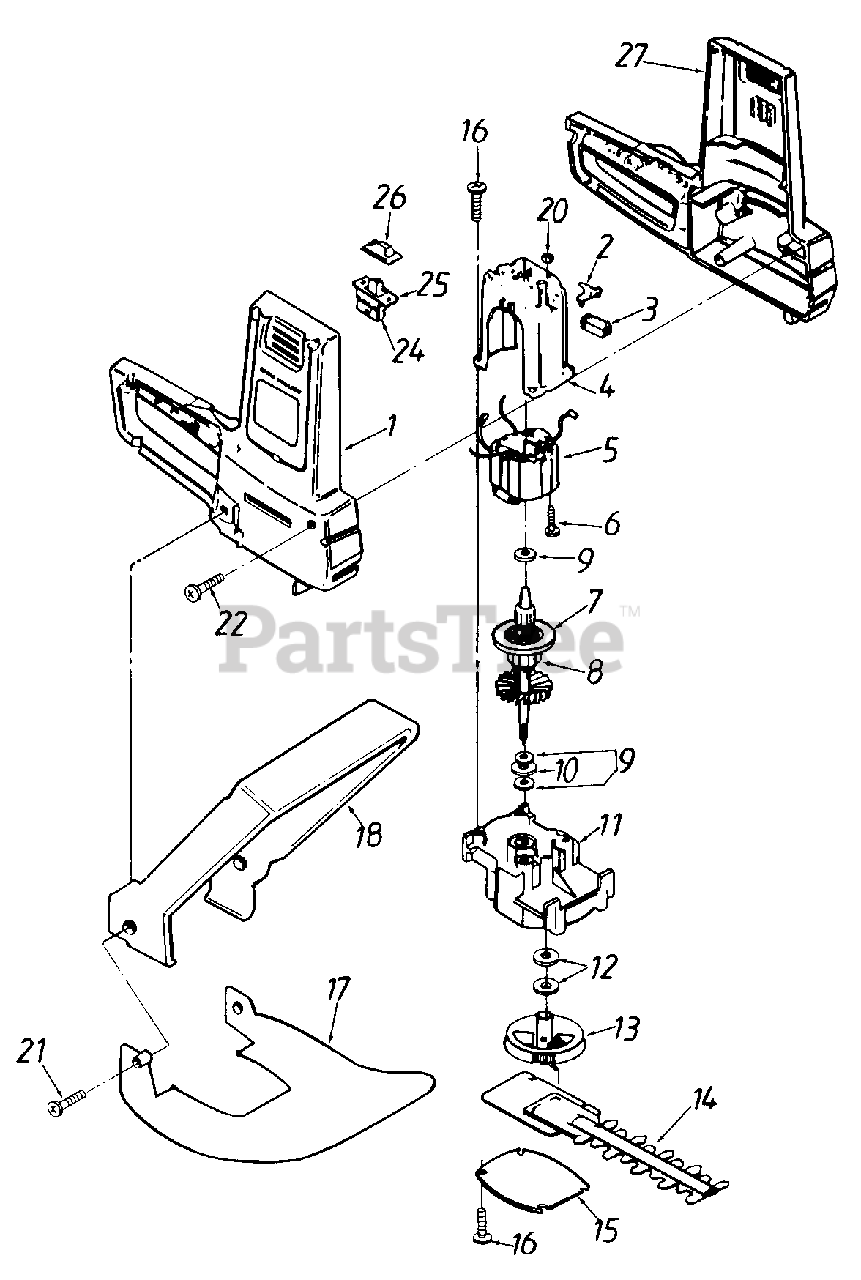

Parts Parts Diagram

  • Title

1

MTD 724-0183

Motor Housing Cover

$

$

Currently unavailable

2

MTD 724-0187

Clip

$

$

Currently unavailable

3

MTD 629-0009

Brush HolderAss'y.

$

$

Not available

4

MTD 624-0008

Motor Housing

$

$

Currently unavailable

5

MTD 624-0007

Field Ass'y.

Note: (311 & 321 )

$

$

Currently unavailable

MTD 624-0011

Field Ass'y.

Note: (331)

$

$

Currently unavailable

6

MTD 706-14374-18

Screw #8-32 x 1.125" Lg.

Note: (311 &321)

$

$

Currently unavailable

MTD 710-1166

Screw #8-32 x 1.562" Lg.

Note: (331)

$

$

Not available

7

MTD 721-0276

Fan Baffle

$

$

Currently unavailable

8

MTD 624-0006

Armature Ass'y.

Note: (311 & 321)

$

$

Not available

MTD 624-0010

Armature Ass'y.

Note: (331 )

$

$

Currently unavailable

9

MTD 736-0480

Fl-Wash. .316" I.D. x .5" O.D.

$

$

Currently unavailable

10

MTD 736-0482

Spr.-Wash. .322" I.D. x .49" O.D.

$

$

Currently unavailable

11

MTD 618-0012

Gear Box Ass'y.

$

$

Currently unavailable

12

MTD 736-0481

Thrust Wash. .385" I.D. x .562"

$

$

Currently unavailable

13

MTD 617-0001

Gear Ass'y

$

$

Currently unavailable

14

MTD 642-0102

Blade Ass'y.

Note: (311)

$

$

Currently unavailable

MTD 642-0103

Blade Ass'y.

Note: (321 )

$

$

Currently unavailable

MTD 642-0104

Blade Ass'y.

Note: (331)

$

$

Currently unavailable

15

MTD 787-0128

Cover Plate

$

$

Currently unavailable

16

MTD 710-1112

Hex Wash. Hd. Tap Scr. #8-32 x 1/2" Lg.

$

$

Not available

17

MTD 731-1237

Shield

$

$

Currently unavailable

18

MTD 749-0837

Handle

$

$

Currently unavailable

20

MTD 712-0143

Hex Top L-Nut #8-32 Thd.

$

$

Not available

21

MTD 710-0472

Truss Mach. Scr. 1/4-20 x 1.125" Lg.

$

$

Not available

22

MTD 710-1164

Screw #8-18x 1" Lg.

$

$

Not available

24

MTD 721-0275

Insulator

$

$

Currently unavailable

25

MTD 725-1589

Switch

$

$

Currently unavailable

26

MTD 720-0247

Switch Cover

$

$

Currently unavailable

27

MTD 724-0182

Motor Housing Support

$

$

Currently unavailable

MTD 629-0001

Plug Ass'y.

Note: (Not Shown)

$

$

Currently unavailable
