51903 - Toro 18" String Trimmer (SN: 069000001 - 069999999) (1996) BOOM AND TRIMMER ASSEMBLY Parts Diagram

18" String Trimmer

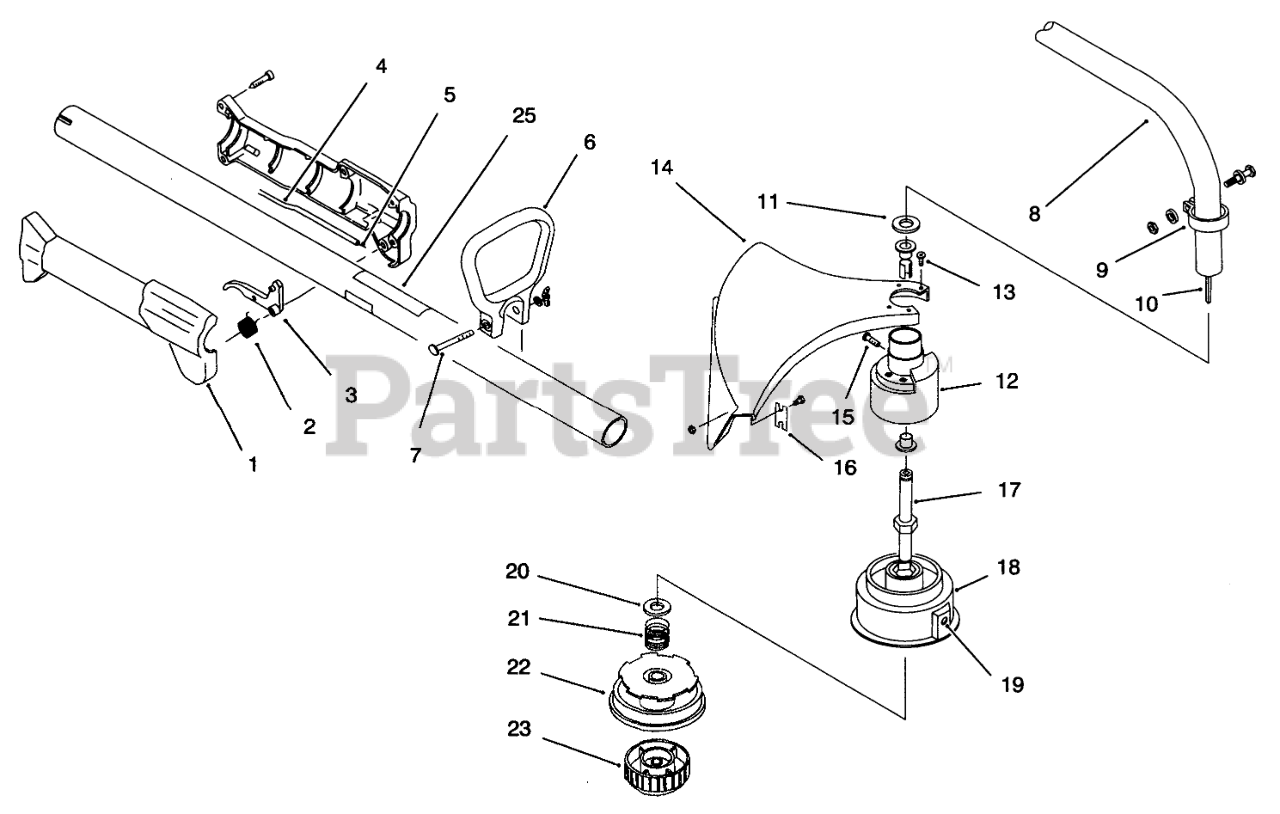

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 180981

Throttle Housing & Trigger Asm.
(Superseded to 182093)

$

$

Not available

2

Toro 610314

THROTTLE TRIGGER SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 180975

TRIGGER - THROTTLE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 181582

HOUSING-CABLE

$

$

Not available

5

Toro 610315

THROTTLE CABLE WIRE

$

$

Not available

6

Toro 145819

D-HANDLE

$

$

Not available

7

Toro 181587

HARDWARE - D-HANDLE

$22.99

$

Usually ships in 3-6 days

0

8

Toro 92-3286

DRIVE SHAFT HSG ASM

$188.99

$

Usually ships in 3-6 days

0

9

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

10

Toro 682064

Drive Shaft
(Superseded to 92-3236)

$97.99

$

Usually ships in 3-6 days

0

11

Toro 181560

NUT

$

$

Not available

12

Toro 153312

BUSHING HSG ASM

$

$

Not available

13

Toro 180531

GUARD MTG SCREW ASM

$2.99

$

Usually ships in 3-6 days

0

14

Toro 153646

Guard and Blade Asm. (Incl. Ref. #16)
(Superseded to 95-5233)

$

$

Not available

15

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

16

Toro 682061

BLADE ASM

$22.99

$

In Stock, only 1 left!

0

17

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

18

Toro 153619

OUTER SPOOL EYELET ASM

$49.99

$

Usually ships in 3-6 days

0

19

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

20

Toro 612026

RETAINER ( 10 PACK)

$

$

Not available

21

Toro 610317

SPRING

$11.99

$

Usually ships in 3-6 days

0

22

Toro 610318

REEL - INNER

$39.99

$

In Stock, only 1 left!

0

23

Toro 682069

Assy.-Bump Head
(Superseded to 153066)

$

$

Not available

25

Toro 92-3328

Decal-Safety Symbol
(Superseded to 95-5297)

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 610375

LOOP LINE

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 92-3450

Reel/Line ASM
(Superseded to 88042)

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated Optional Accessories

$

$

Not available
