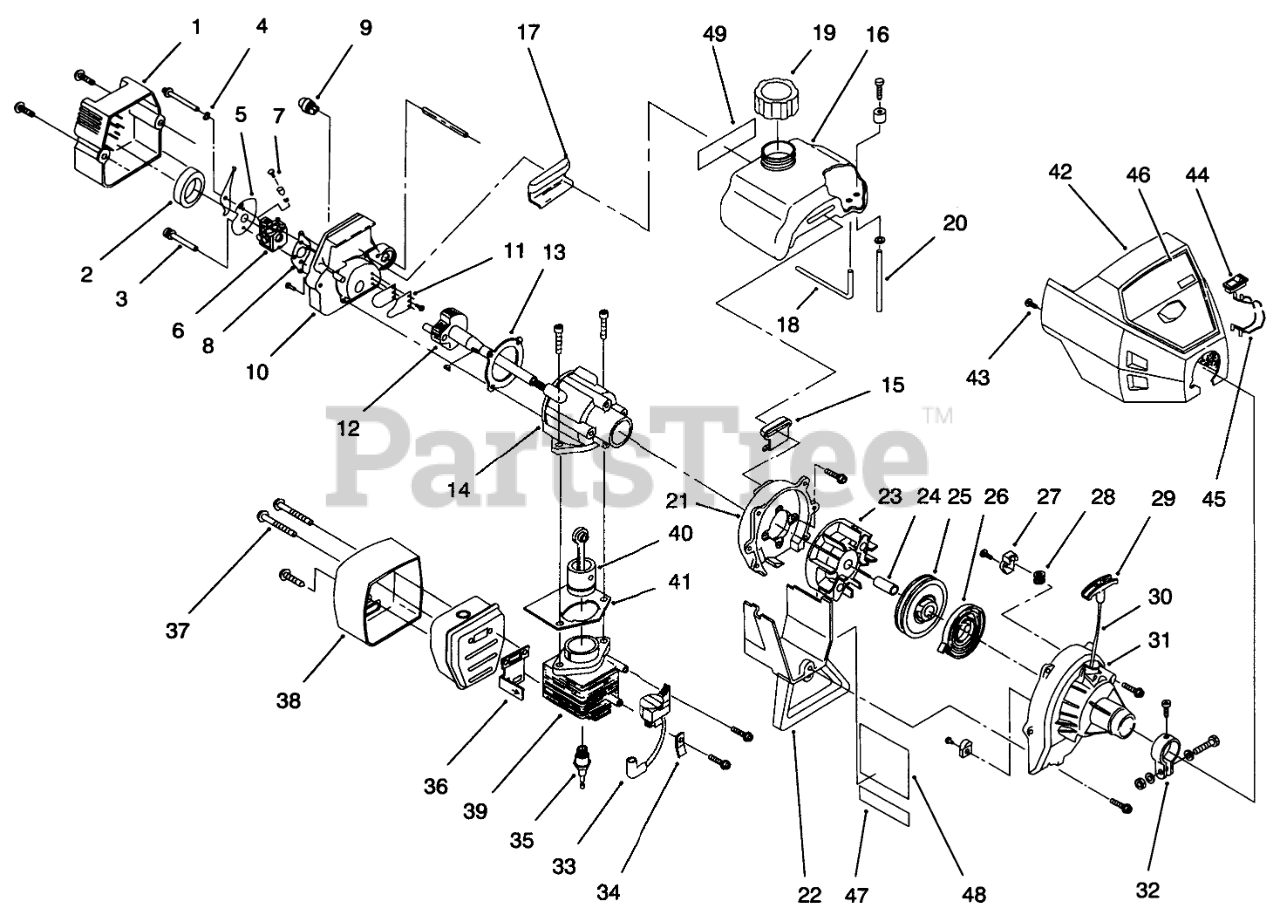

51906 - Toro 16" String Trimmer (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 180349

Carburetor/Air Cleaner Asm. (Incl. Ref. #2)

$

$

Not available

2

Toro 180350

FILTER - AIR CLEANER

$15.99

$

Usually ships in 3-6 days

0

3

Toro 180351

ASSEMBLY - MOUNTING BOLT

$

$

Not available

4

Toro 180352

WASHER - WAVEY

$

$

Not available

5

Toro 180353

LEVER - CHOKE & PLATE

$

$

Not available

6

Toro 180528

Carburetor Asm.
(Superseded to 181675)

$

$

Not available

7

Toro 682048

THROTTLE ADJ ASM

$

$

Not available

7

Toro 180092

ASM - THROTTLE ADJUSTMENT

$

$

Not available

8

Tecumseh 610675

CARBURETOR GASKET(10 PER PACK)

$

$

Currently unavailable

9

Toro 683974

PRIMER & HOSE ASM

$

$

Not available

10

Toro 180354

Carburetor Mount Asm.
(Superseded to 182063)

$

$

Not available

11

Toro 147573

ASSEMBLY - REED

$

$

Not available

12

Toro 181498

ASM - POWER SHAFT

$

$

Not available

13

Toro 612115

CARB MT GASKET (10-PK)

$

$

Not available

14

Toro 180026

Crankcase Service Asm. (Incl. Ref. #12)

$

$

Not available

15

Toro 145308

FRONT MOUNTING PAD

$

$

Not available

16

Toro 181502

Fuel Tank Asm. (Incl. Ref. #18-20)

$

$

Not available

17

Toro 612134

REAR MOUNTING PAD

$

$

Not available

18

Toro 181168

ASSEMBLY - RETURN LINE

$14.99

$

In Stock, only 3 left!

0

19

Toro 180000

FUEL TANK CAP

$

$

Not available

20

Toro 682039

FUEL LINE ASM

$

$

Not available

21

Toro 683065

SHROUD ASM

$78.99

$

Usually ships in 3-6 days

0

22

Toro 683078

Shroud Extension & Stand
(Superseded to 153403)

$53.99

$

Usually ships in 3-6 days

0

23

Toro 180929

FLYWHEEL

$

$

Not available

24

Tecumseh 610303

SQUARE DRIVE NUT

$

$

Currently unavailable

25

Toro 683856

RECOIL PULLEY ASM

$

$

Not available

26

Toro 613102

RECOIL SPRING

$24.99

$

Usually ships in 3-6 days

0

27

Toro 153644

PULLEY RETAINER ASM

$

$

Not available

28

Tecumseh 611061

ROPE GUIDE

$

$

Not available

29

Tecumseh 610300

Handle-Pull

$

$

Currently unavailable

30

Toro 613103

ROPE

$

$

Not available

31

Toro 683064

STARTER HSG ASM

$

$

Not available

32

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

33

Toro 683390

Module Asm.
(Superseded to 181937)

$

$

Not available

34

Tecumseh 611063

GROUND TAB

$

$

Currently unavailable

35

Tecumseh 610311

SPARK PLUG

$

$

Currently unavailable

36

Toro 180980

GASKET - EXHAUST

$8.49

$

In Stock, only 1 left!

0

37

Toro 181571

ASM - MUFFLER MTG BOLT

$

$

Not available

38

Toro 181572

Muffler Asm. (Incl. Ref. #37)
(Superseded to 181984)

$

$

Not available

39

Toro 180063

ASSEMBLY - CYLINDER
(Superseded to 181622)

$

$

Not available

40

Toro 684449

PISTON & ROD ASM
(Superseded to 753-04367)

$

$

Not available

41

Tecumseh 610674

CYLINDER GASKET

$

$

Currently unavailable

42

Toro 181500

COVER - ENGINE

$

$

Not available

43

Toro 180230

Screw
(Superseded to 68-3070)

$

$

Not available

44

Toro 683069

SWITCH ASM

$

$

Not available

45

Toro 683068

LEAD WIRE ASM

$

$

Not available

46

Toro 92-3342

Decal-Toro Housing

$

$

Not available

47

Toro 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

48

Toro 92-3341

DECAL - CARBURETOR

$

$

Not available

49

Toro 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

Toro 180034

KIT - ENGINE HARDWARE

Note: Not illustrated

$

$

Not available

Toro 180011

KIT - ENGINE GASKET

Note: Not illustrated

$

$

Not available

Toro 153308

Kit-Carb. Repair, Walbro
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 180090

KIT - CARBUERTOR REPAIR

Note: Not illustrated

$

$

Not available

Toro 181069

GASKET-DIAPHRAGM REPAIR

Note: Not illustrated

$

$

Not available

Toro 180091

GASKET-DIAPHRAGM REPAIR

Note: Not illustrated

$

$

Not available

Toro 180530

PISTON RING

Note: Not illustrated

$

$

Not available

Toro 180027

Short Block Asm. (Incl. Ref. #12, 14, 35, 39-41)

Note: Not illustrated

$

$

Not available

Tecumseh 610676

FLYWHEEL KEY (10-PK)

Note: Not illustrated

$

$

Currently unavailable

Toro 181501

STARTER HOUSING SCREW SET

Note: Not illustrated

$

$

Not available
