51906 - Toro 16" String Trimmer (SN: 089000001 - 089999999) (1998) BOOM AND TRIMMER ASSEMBLY Parts Diagram

16" String Trimmer

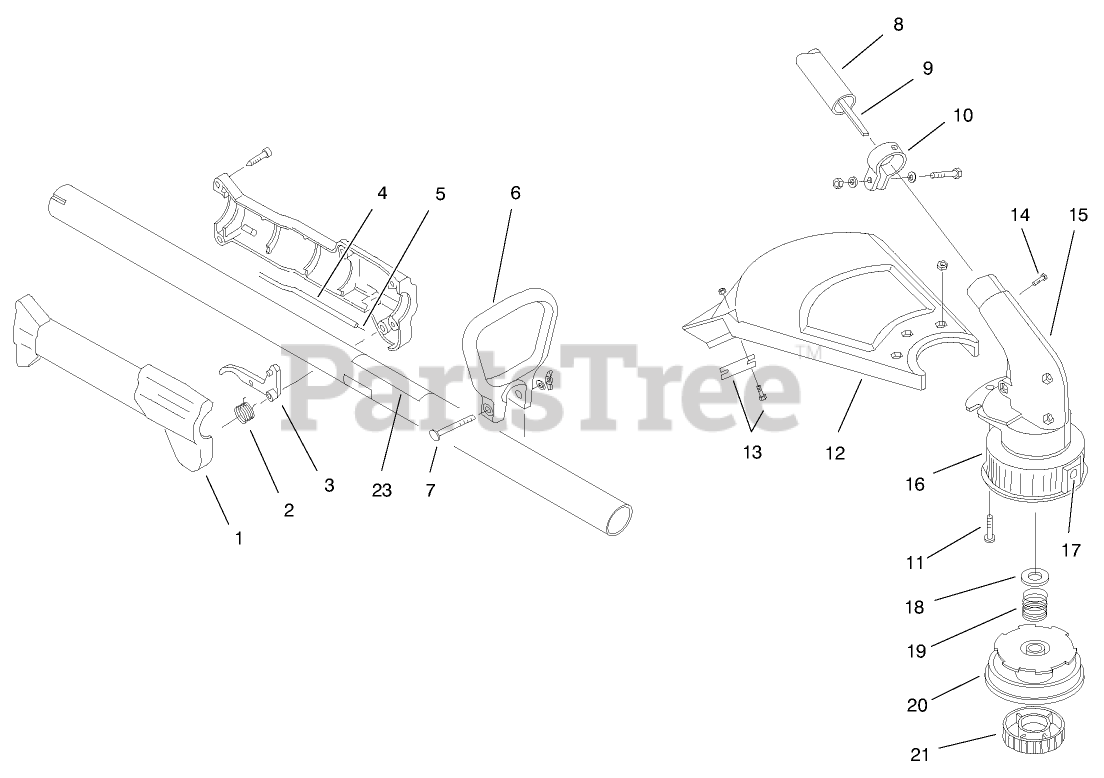

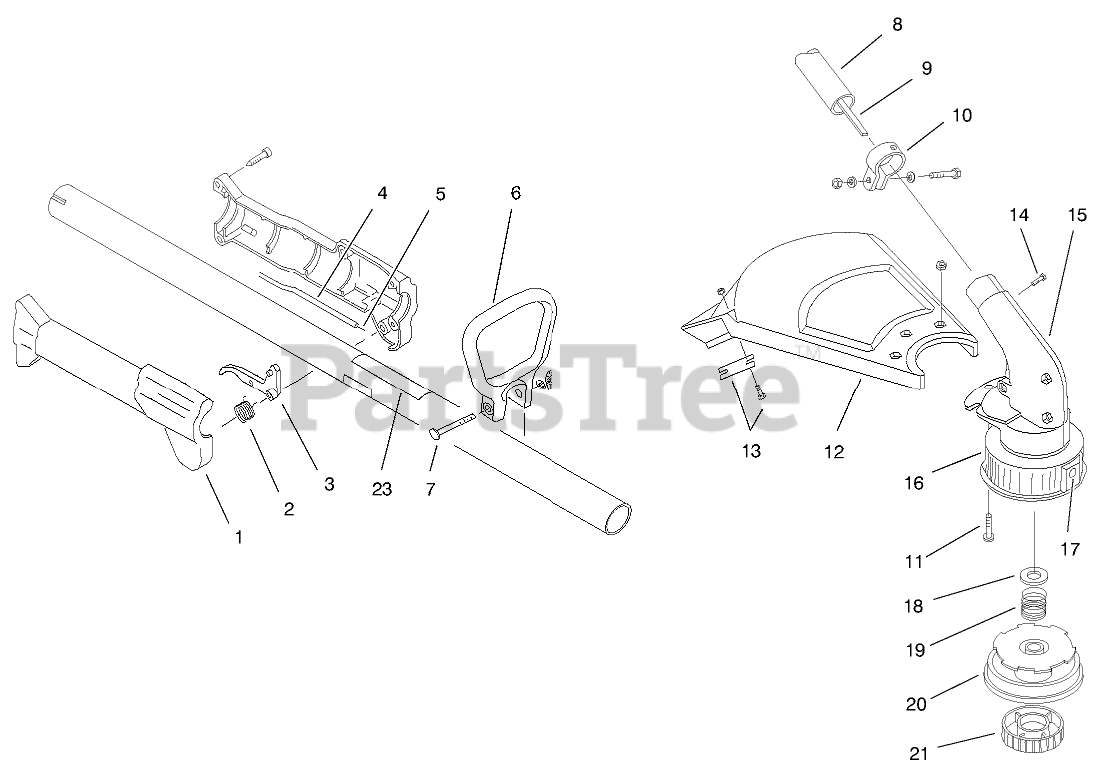

BOOM AND TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 180981

Throttle Housing & Trigger Asm.
(Superseded to 182093)

$

$

Not available

2

Toro 92-3383

SPRING - TRIGGER
(Superseded to 610314)

$10.99

$

Usually ships in 3-6 days

0

3

Toro 92-3384

HSG - THROTTLE TRIGGER
(Superseded to 180975)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 92-3375

Throttle Cable Housing
(Superseded to 181582)

$

$

Not available

5

Toro 92-3381

Throttle Cable
(Superseded to 610315)

$

$

Not available

6

Toro 92-3391

D-Handle
(Superseded to 145819)

$

$

Not available

7

Toro 181587

HARDWARE - D-HANDLE

$22.99

$

Usually ships in 3-6 days

0

8

Toro 95-5239

Drive Shaft Housing Asm.
(Superseded to 181507)

$

$

Not available

9

Toro 95-5298

SHAFT - FLEX, 48.94

$79.99

$

Usually ships in 3-6 days

0

10

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

11

Toro 180547

ASM - GUARD MTG SCREW

$

$

Not available

12

Toro 92-3395

Guard and Blade Asm.
(Superseded to 95-5230)

$

$

Not available

13

Toro 682061

BLADE ASM

$22.99

$

In Stock, only 1 left!

0

14

Toro 95-5765

Anti-Rotation Screw
(Superseded to 145569)

$

$

Not available

15

Toro 92-3366

Gearbox Asm.
(Superseded to 95-5209)

$

$

Not available

16

Toro 153619

OUTER SPOOL EYELET ASM

$49.99

$

Usually ships in 3-6 days

0

17

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

18

Toro 610660

RETAINER WASHER(SET OF 10)

$4.49

$

In Stock, Qty 19

0

19

Toro 610317

SPRING

$11.99

$

Usually ships in 3-6 days

0

20

Toro 610318

REEL - INNER

$39.99

$

In Stock, only 1 left!

0

21

Toro 153066

SMALL BUMP KNOB ASM

$

$

Not available

23

Toro 95-5297

DECAL - SAFETY SYMBOLS

$

$

Not available

Toro 610375

LOOP LINE

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 92-3293

Spool & Line (25 ft.) Asm.
(Superseded to 88192)

Note: Not Illustrated Optional Accessories

$27.99

$

In Stock, only 3 left!

0

Toro 88192

Spool/Line Asm

Note: Not Illustrated Optional Accessories

$27.99

$

In Stock, only 3 left!

0

Toro 66-2090

Toro 2-Cycle Oil

Note: Not Illustrated Optional Accessories

$

$

Not available

Toro 93-4471

GLASSES - SAFETY

Note: Not Illustrated Optional Accessories

$

$

Not available
