51907 - Lawn-Boy 16" String Trimmer (SN: 990000001 - 999999999) (1999) ENGINE ASSEMBLY Parts Diagram

16" String Trimmer

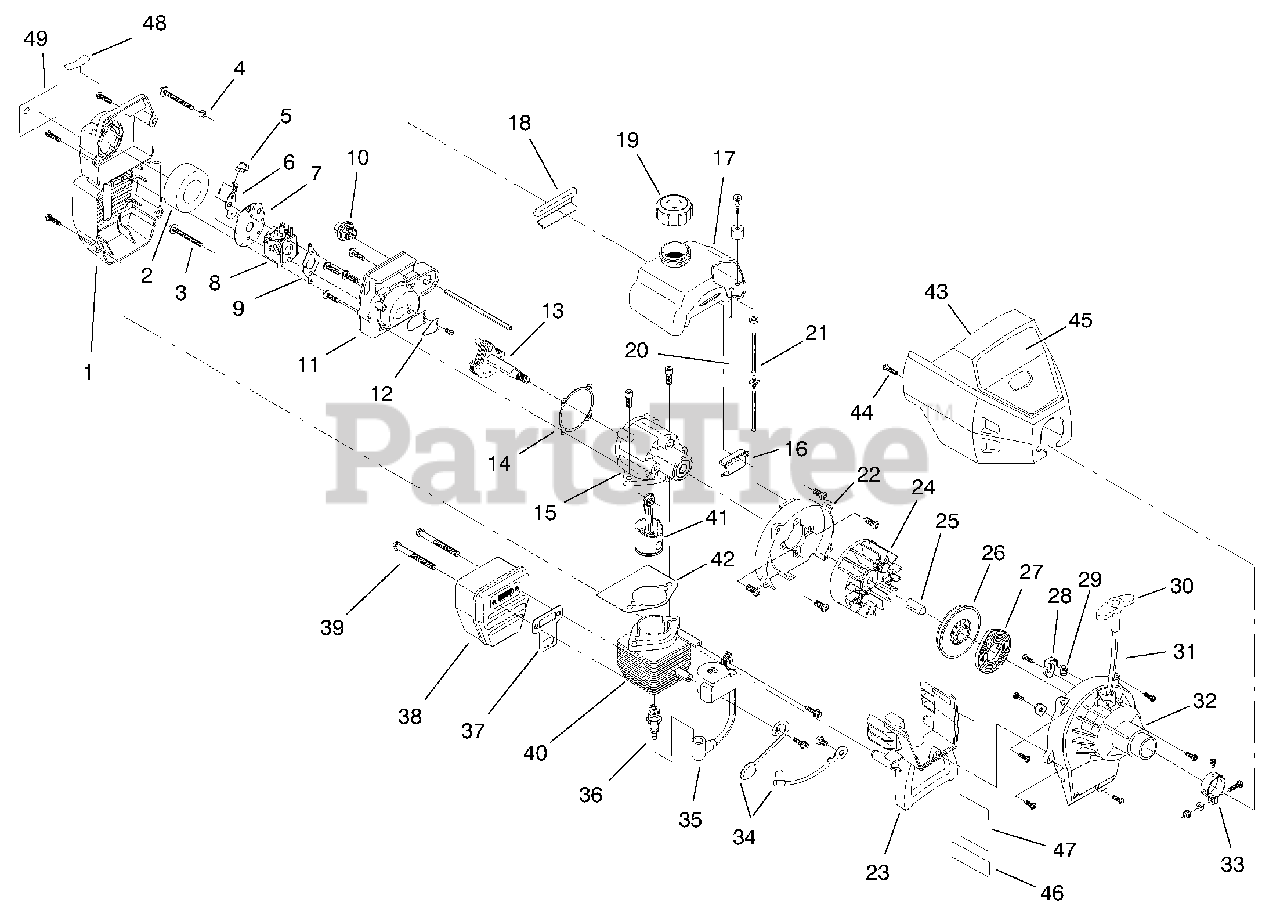

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 182059

Cover ASM (Includes Ref #2)

$60.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 180350

Filter-Air Cleaner

$14.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 180351

Carburetor Mounting Screw ASM

$

$

Not available

4

Lawn-Boy 180226

Wavey Washer

$

$

Not available

5

Lawn-Boy 182201

Choke Lever ASM (Includes Ref #6)
(Superseded to 182203)

$

$

Not available

6

Lawn-Boy 182202

Choke Knob & Screw

$

$

Not available

7

Lawn-Boy 182203

Choke Lever & Plate (Includes Ref #5)

$

$

Not available

8

Lawn-Boy 182062

Carburetor ASM

$

$

Not available

9

Lawn-Boy 610675

Gasket-Carburetor

$6.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 683974

Primer & Hose ASM

$

$

Not available

11

Lawn-Boy 182063

Carburetor Mount ASM

$

$

Not available

12

Lawn-Boy 684451

Reed ASM

$19.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 181866

Power Shaft ASM

$

$

Not available

14

Lawn-Boy 612115

Gasket-Carb Mount

$

$

Not available

15

Lawn-Boy 181865

Crank Case ASM (Includes Ref #13)

$310.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 145308

Mounting Pad-Front

$

$

Not available

17

Lawn-Boy 181502

Fuel Tank ASM (Includes Ref #19-21)

$

$

Not available

18

Lawn-Boy 612134

Mounting Pad-Rear

$

$

Not available

19

Lawn-Boy 180000

Fuel Cap ASM

$

$

Not available

20

Lawn-Boy 181168

Fuel Line-Return

$12.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 682039

Fuel Line ASM

$

$

Not available

22

Lawn-Boy 683065

Shroud ASM

$74.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 182064

Shroud Extension

$

$

Not available

24

Lawn-Boy 181867

Flywheel ASM

$

$

Not available

25

Lawn-Boy 610303

Spacer

$

$

Not available

26

Lawn-Boy 181597

Pulley-Recoil ASM
(Superseded to 753-04232)

$

$

Not available

27

Lawn-Boy 613102

Spring-Recoil

$20.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 180930

Pulley-Retainer ASM

$

$

Not available

29

Lawn-Boy 611061

Guide-Rope

$

$

Not available

30

Lawn-Boy 181079

Pull Handle

$14.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 613103

Rope

$

$

Not available

32

Lawn-Boy 181687

Housing-Starter ASM

$

$

Not available

33

Lawn-Boy 153597

Upper Clamp ASM

$

$

Not available

34

Lawn-Boy 153611

Switch ASM

$

$

Not available

35

Lawn-Boy 181937

Module ASM

$157.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 610311

Spark Plug

$3.49

$

In Stock, only 1 left!

0

37

Lawn-Boy 182065

Gasket-Exhaust

$

$

Not available

38

Lawn-Boy 182066

Muffler ASM (Includes Ref #39)

$94.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 147575

Muffler Mounting Bolt Assembly

$

$

Not available

40

Lawn-Boy 181622

Cylinder ASM

$

$

Not available

41

Lawn-Boy 684449

Piston & Rod ASM
(Superseded to 753-04367)

$192.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 610674

Gasket-Cylinder

$

$

Not available

43

Lawn-Boy 181500

Cover-Engine

$

$

Not available

44

Lawn-Boy 180230

Screw-Engine Cover
(Superseded to 68-3070)

$

$

Not available

45

Lawn-Boy 95-5086

Decal-Toro Housing

$

$

Not available

46

Lawn-Boy 95-5084

Decal-Warning, Hot Surface

$

$

Not available

47

Lawn-Boy 95-5241

Decal-Carb

$

$

Not available

48

Lawn-Boy 95-5242

Decal-Choke Position

$

$

Not available

49

Lawn-Boy 95-5243

Decal-Fuel & Oil Mix

$

$

Not available

Lawn-Boy 180034

Hardware Kit-Engine

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 180011

Gasket Kit-Engine

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 180602

Repair Kit-Carburetor (Walbro)

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 180090

Repair Kit-Carburetor (Zama)

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 181069

Repair Kit-Diaphragm Gasket (Walbro)

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 180091

Repair Kit-Diaphragm Gasket (Zama)

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 180530

Piston Ring

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 181863

Short Block ASM (Includes Ref #13, 15, 36, 40-42)

Note: Items Not Illustrated

$263.99

$

Usually ships in 3-6 days

0

Lawn-Boy 181501

Screw Set-Starter Housing

Note: Items Not Illustrated

$

$

Not available

Lawn-Boy 95-5295

Card-Start Alert

Note: Items Not Illustrated

$

$

Currently unavailable

Lawn-Boy 95-5294

Tag-Caution, Oil Mix

Note: Items Not Illustrated

$

$

Currently unavailable
