51920 - Lawn-Boy 15" String Trimmer (SN: 069000001 - 069999999) (1996) CARBURETOR & MUFFLER ASSEMBLIES Parts Diagram

15" String Trimmer

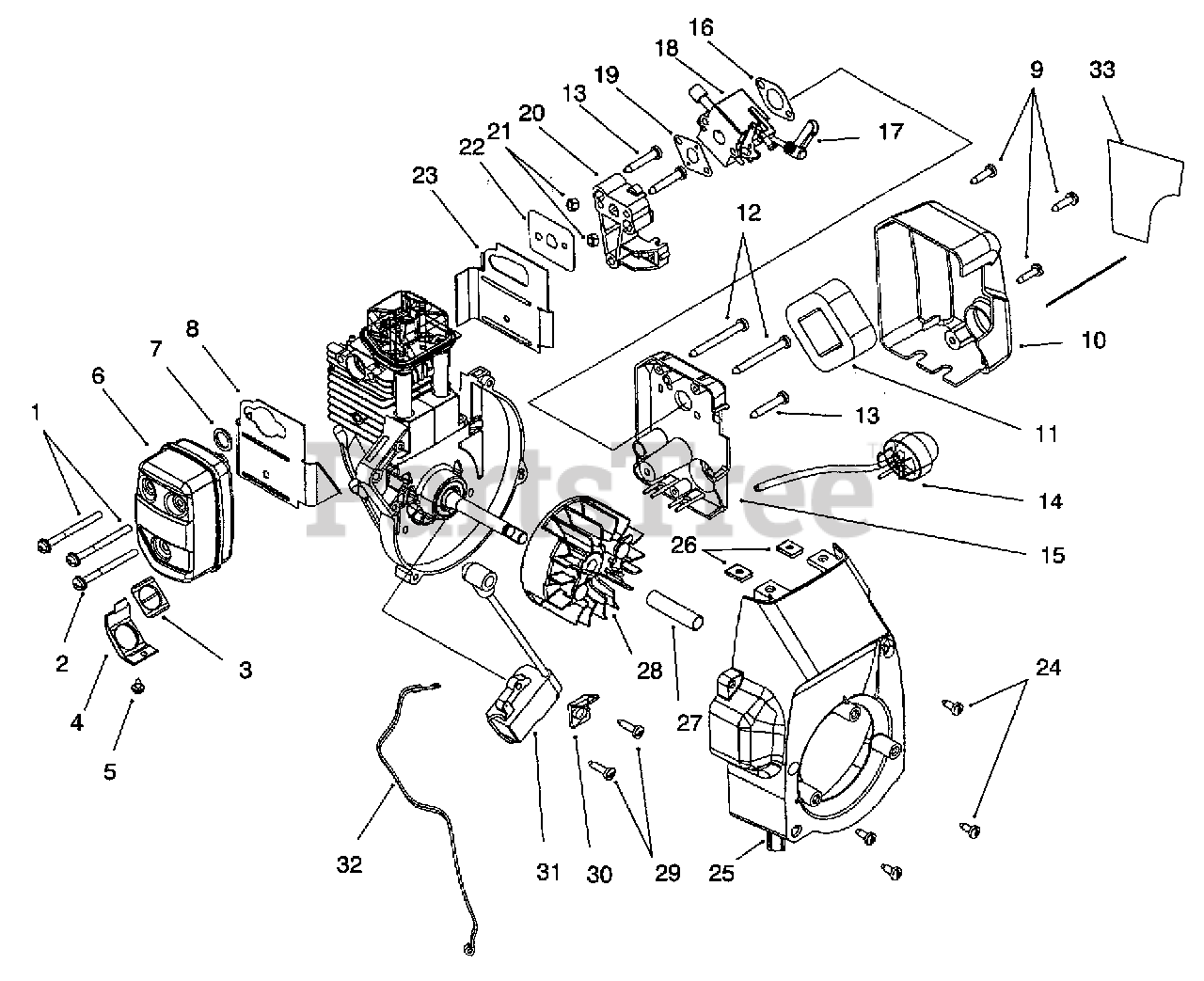

CARBURETOR & MUFFLER ASSEMBLIES Parts Diagram

  • Title

1

Lawn-Boy 181043

Screw-Muffler Mounting

$

$

Not available

2

Lawn-Boy 181044

Screw-Muffler Mounting

$

$

Not available

3

Lawn-Boy 180890

Screen-Spark Arrestor

$

$

Not available

4

Lawn-Boy 181045

Cover-Screen

$

$

Not available

5

Lawn-Boy 181046

Screw-Screen Cover

$

$

Not available

6

Lawn-Boy 181047

Muffler (Incl. Ref. #1-5 & 7)

$

$

Not available

7

Lawn-Boy 181048

Gasket-Muffler

$

$

Not available

8

Lawn-Boy 181049

Baffle-Muffler

$

$

Not available

9

Lawn-Boy 181050

Screw-Air Filter Cover

$

$

Not available

10

Lawn-Boy 181051

Cover-Air Filter

$

$

Not available

11

Lawn-Boy 180350

Filter-Air

$14.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 181052

Screw-Air Filter Base

$

$

Not available

13

Lawn-Boy 181053

Screw

$

$

Not available

14

Lawn-Boy 181538

Primer & Line Assembly

$

$

Not available

15

Lawn-Boy 181055

Base-Air Filter

$

$

Not available

16

Lawn-Boy 181056

Gasket

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 181539

Lever-Choke

$

$

Not available

18

Lawn-Boy 181540

Carburetor W/Choke Lever

$

$

Not available

19

Lawn-Boy 181059

Gasket

$2.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 181060

Insulator-Carb. Mount

$

$

Not available

21

Lawn-Boy 181034

Nut-Hex

$

$

Not available

22

Lawn-Boy 181061

Gasket-Intake

$

$

Not available

23

Lawn-Boy 181062

Baffle-Intake

$

$

Not available

24

Lawn-Boy 181003

Screw

$

$

Not available

25

Lawn-Boy 181541

Housing-Fan

$

$

Not available

26

Lawn-Boy 181064

Nut-Tinnerman

$

$

Not available

27

Lawn-Boy 181065

Spacer

$

$

Not available

28

Lawn-Boy 180929

Flywheel

$

$

Not available

29

Lawn-Boy 181066

Screw-Module

$

$

Not available

30

Lawn-Boy 611063

Tab-Ground

$

$

Not available

31

Lawn-Boy 181067

Module-Ignition

$

$

Not available

32

Lawn-Boy 181094

Lead-Wire 18"

$

$

Not available

33

Lawn-Boy 9373

Decal-Choke

$

$

Not available

Lawn-Boy 610676

Key-Flywheel

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180142

Flywheel Starter Pawl Repair Kit

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181068

O.E.M. Carburetor Repair Kit

Note: Not Illustrated

$

$

Not available

Lawn-Boy 181069

Gasket-Diaphragm Repair Kit

Note: Not Illustrated

$

$

Not available

Lawn-Boy 180986

Carburetor Limiter Cap Set

Note: Not Illustrated

$

$

Not available
