51926 - Toro 16" String Trimmer (SN: 069000001 - 069999999) (1996) CYLINDER & CRANKCASE ASSEMBLY Parts Diagram

16" String Trimmer

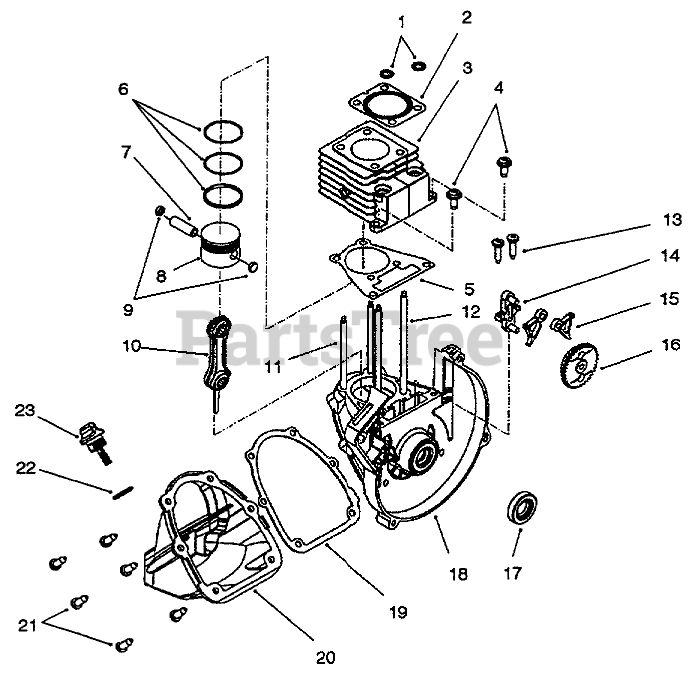

CYLINDER & CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 181000

O-RING

$

$

Not available

2

Toro 181001

GASKET - CYLINDER HEAD

$

$

Not available

3

Toro 181002

CYLINDER

$

$

Not available

4

Toro 181003

SCREW - M5 X 18.7MM

$

$

Not available

5

Toro 181004

GASKET - CYLINDER

$

$

Not available

6

Toro 181005

SET - PISTON RING

$

$

Not available

7

Toro 181006

PIN - WRIST

$

$

Not available

8

Toro 181007

PISTON

$

$

Not available

9

Toro 181008

BUTTON - WRIST PIN

$

$

Not available

10

Toro 181009

ROD - CONNECTING

$

$

Not available

11

Toro 181010

STUD - CYLINDER (83.5MM)

$

$

Not available

12

Toro 181011

STUD - CYLINDER (115.5MM)

$

$

Not available

13

Toro 181012

SCREW - CAM BRACKET

$

$

Not available

14

Toro 181013

BRACKET - CAM

$

$

Not available

15

Toro 181014

FOLLOWER - CAM
(Superseded to 182123)

$

$

Not available

16

Toro 181015

GEAR - CAM

$

$

Not available

17

Toro 181016

SEAL

$

$

Not available

18

Toro 181017

Crankcase W/Power Shaft (Incl. Ref. #11,12,&17)

$

$

Not available

19

Toro 181018

GASKET - OIL PAN

$

$

Not available

20

Toro 181019

OIL - PAN

$

$

Not available

21

Toro 181020

SCREW - M5 X 15.8MM

$

$

Not available

22

Toro 181021

O-RING

$

$

Not available

23

Toro 181537

Plug-Oil Fill (Incl. Ref. #22)

$

$

Not available

Toro 181023

Piston & Rod Assembly (Incl. Ref. # 6-10)

Note: Not illustrated

$190.99

$

Usually ships in 3-6 days

0

Toro 181024

KIT - ENGINE GASKET

Note: Not illustrated

$

$

Not available

Toro 181042

ASM - SHORT BLOCK

Note: Not illustrated

$

$

Not available
