51926 - Toro 16" String Trimmer (SN: 079000001 - 079999999) (1997) CYLINDER HEAD ASSEMBLY Parts Diagram

16" String Trimmer

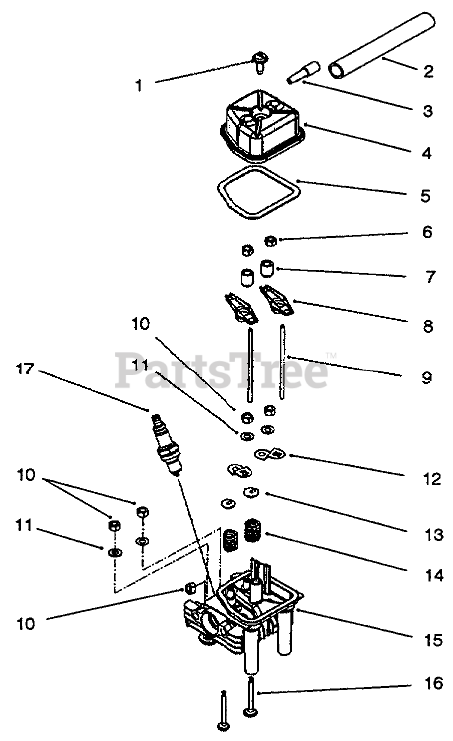

CYLINDER HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 181025

SCREW - VALVE COVER

$

$

Not available

2

Toro 181026

HOSE - BREATHER

$

$

Not available

3

Toro 181027

ASSEMBLY - BREATHER

$

$

Not available

4

Toro 181028

COVER - VALVE

$

$

Not available

5

Toro 181029

GASKET - VALVE COVER

$

$

Not available

6

Toro 181030

NUT - ROCKER ADJUSTING

$

$

Not available

7

Toro 181031

PIVOT - ROCKER ARM

$

$

Not available

8

Toro 181032

ARM - ROCKER

$

$

Not available

9

Toro 181033

ROD - PUSH

$

$

Not available

10

Toro 181034

NUT - HEX 5M

$

$

Not available

11

Toro 181035

WASHER

$

$

Not available

12

Toro 181036

GUIDE - PUSH ROD

$

$

Not available

13

Toro 181037

RETAINER - VALVE SPRING

$

$

Not available

14

Toro 181038

SPRING - VALVE

$

$

Not available

15

Toro 181039

HEAD - CYLINDER

$140.99

$

Usually ships in 3-6 days

0

16

Toro 181040

VALVE

$

$

Not available

17

Toro 180852

PLUG - SPARK

$

$

Not available

Toro 181041

Cylinder Head Assembly (Incl. Ref. #13-16)

Note: Not illustrated

$213.99

$

Usually ships in 3-6 days

0

Toro 181042

ASM - SHORT BLOCK

Note: Not illustrated

$

$

Not available
