51927 - Toro 16" String Trimmer (SN: 079000001 - 079999999) (1997) LOWER BOOM & CUTTING HEAD ASSEMBLY Parts Diagram

16" String Trimmer

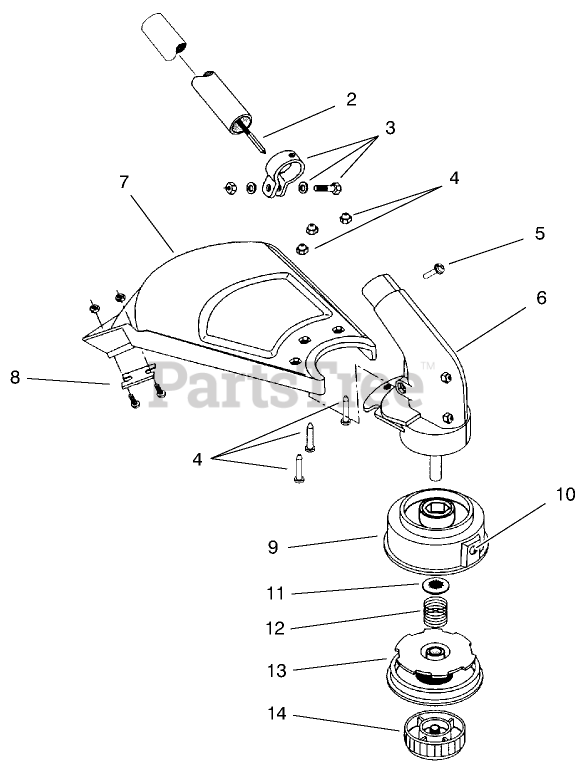

LOWER BOOM & CUTTING HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 181548

HOUSING - LOWER DRIVE

$

$

Not available

2

Toro 181549

SHAFT - FLEXIBLE DRIVE

$

$

Not available

3

Toro 153597

CLAMP ASM - UPPER

$

$

Not available

4

Toro 180547

ASM - GUARD MTG SCREW

$

$

Not available

5

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

6

Toro 180549

ASM - GEAR BOX

$

$

Not available

7

Toro 180548

Guard-Cutting Head (Incl. Ref. #8)
(Superseded to 95-5230)

$

$

Not available

8

Toro 682061

BLADE ASM

$22.99

$

In Stock, only 1 left!

0

9

Toro 153619

Spool-Outer W/Eyelet (Incl. Ref. #10)

$49.99

$

Usually ships in 3-6 days

0

10

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

11

Tecumseh 610660

RETAINER WASHER(SET OF 10)

$

$

Currently unavailable

12

Tecumseh 610317

SPRING

$

$

Currently unavailable

13

Tecumseh 610318

REEL - INNER

$

$

Currently unavailable

14

Toro 682069

Assy.-Bump Head
(Superseded to 153066)

$

$

Not available

Tecumseh 610375

LOOP LINE

Note: Not illustrated

$

$

Currently unavailable

Toro 92-3450

Reel/Line ASM
(Superseded to 88042)

Note: Not illustrated

$

$

Not available

Toro 682075

STRAP SHOULDER ACC

Note: Not illustrated

$

$

Not available

Toro 92-3297

Oil-Sae 30 100ml Bottle
(Superseded to 77-4910)

Note: Not illustrated

$

$

Not available

Toro 181101

SPOUT - OIL

Note: Not illustrated

$

$

Not available

Toro 180897

Complete Cutting Head (Incl. Ref. # 9, 11-14)

Note: Not illustrated

$119.99

$

In Stock, only 1 left!

0
