51930 A - Toro String Trimmer (SN: 230000001 - 999999999) Engine Sub-assembly (Part 1) Parts Diagram

String Trimmer

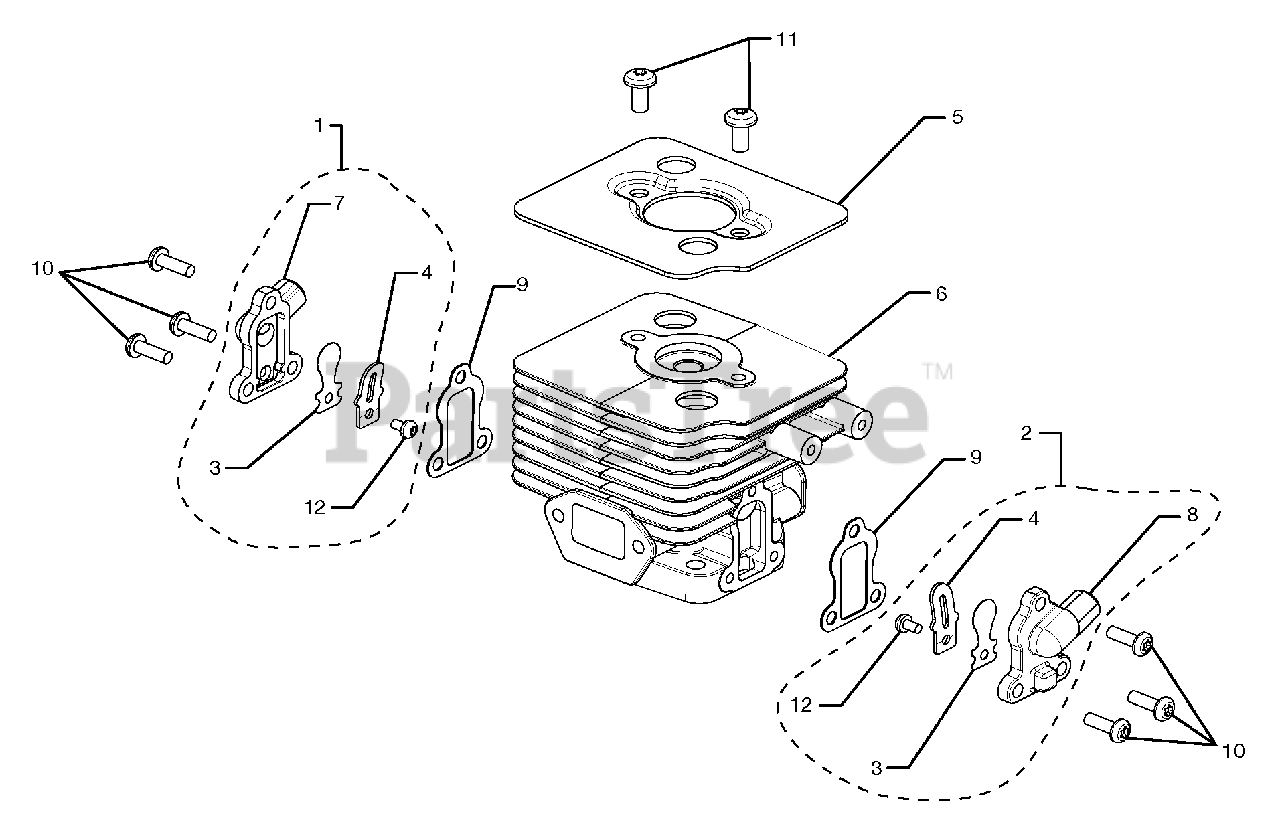

Engine Sub-assembly (Part 1) Parts Diagram

  • Title

1

Homelite 3074201

Start Side Reed Valve Assembly

Note: (Includes key no. 3,4,7 and 12)

$

$

Not available

2

Homelite 3074202

Flywheel Side Reed Valve Assembly

Note: (Assembly key No.3,4,8 and 12)

$

$

Not available

3

Homelite 6300203

Stamping Petal Reed Valve

$

$

Not available

4

Homelite 6300204

Stamping Stop Reed Valve

$

$

Not available

5

Homelite 6300221

Cylinder Plate
(Superseded to 630002021)

$1.49

$

In Stock, only 3 left!

0

6

Homelite 6457001

Stratified Cylinder

$

$

Not available

7

Homelite 6457101

Starter Side Cover Valve

$

$

Not available

8

Homelite 6457102

Flywheel Side Cover Valve

$

$

Not available

9

Homelite 9071001

Reed Valve Cover Gasket

$

$

Not available

10

Homelite 983654008

Screw

Note: (M5 x 0.7 x 12 in. Torx Recessed Pan HD, Machine)

$

$

Not available

11

Homelite 983660005

Screw

Note: (M5 x 0.8 x 10 in. Torx Recessed Pan HD, Machine)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 983786070

Screw

Note: (M3 x 0.5 x 5 in. Torx Recessed Pan HD, Machine)

$

$

Not available
