51932 - Toro String Trimmer (SN: 230000001 - 999999999) Attachment Shaft Parts Diagram

String Trimmer

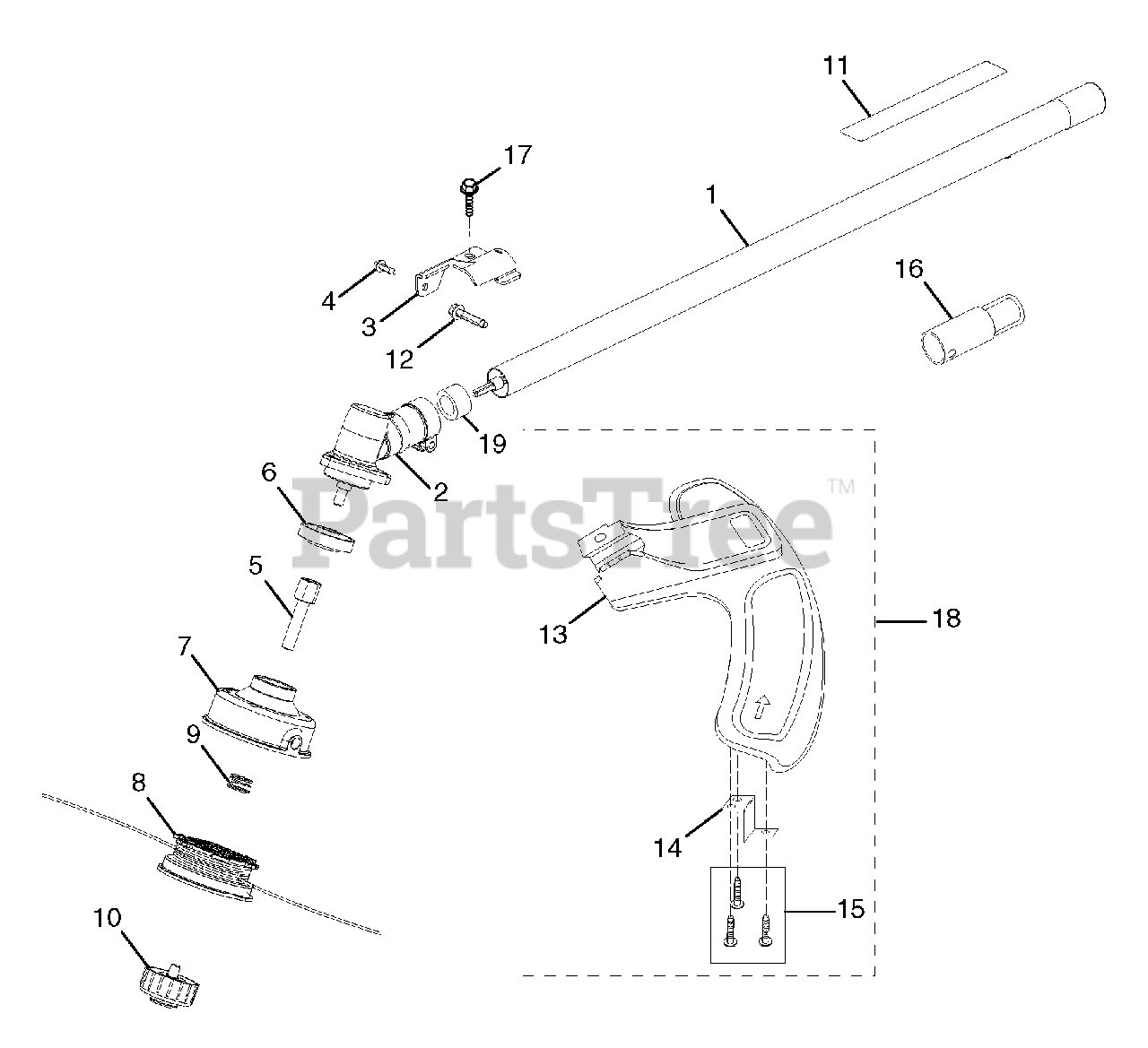

Attachment Shaft Parts Diagram

  • Title

1

Homelite 983643001

Straight Shaft Assembly
(Superseded to 985572003)

$

$

Not available

2

Homelite PA01364

Gear Case Assembly
(Superseded to 308210008)

$

$

Not available

3

Homelite PS04420

Grass Deflector Clamp

$2.99

$

In Stock, only 2 left!

0

4

Homelite 983774003

Screw(#10-24 x 5/8 in. Hex Washer Head, Tri-

$1.49

$

In Stock, only 1 left!

0

5

Homelite PS04438

Trimmer Head Shaft Adaptor
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

6

Homelite 04168A

Flanged Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

7

Homelite A98231A

Trimmer Head
(Superseded to 099068001005)

$

$

Not available

8

Homelite 984238001

Spoolwith Line (.095)
(Superseded to 308044003)

$

$

Not available

9

Homelite 06713

Compression Spring

$1.49

$

In Stock, only 2 left!

0

10

Homelite A97910A

Retaining Cap,Left-handed threads
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 984032001

Warning Label

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 983381007

Screw(#1/4-20 x 1-1/4 in.Washer Head,Tri-lobular) Hex

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 984099001

Grass Deflector
(Superseded to 308473001)

$

$

Not available

14

Homelite PS04379

Line Cutting Blade

$

$

Not available

15

Homelite 82543

Screw(#8-16 x1/2in.Truss Head,Tri-lobular)

$

$

Not available

16

Homelite PS02155

Storage Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

17

Homelite 983379078

Screw(#1/4-20 x 1-1/4 in. Hex Washer Head,

$

$

Not available

18

Homelite 984443003

Grass Deflector Assembly
(Superseded to 308473004)

$6.99

$

Usually ships in 3-7 days

0

19

Homelite 985625001

Spacer
(Superseded to 518367001)

$1.49

$

In Stock, Qty 5

0
