51934 A - Toro Brush Cutter (SN: 230000001 - 999999999) Upper Shaft Parts Diagram

Brush Cutter

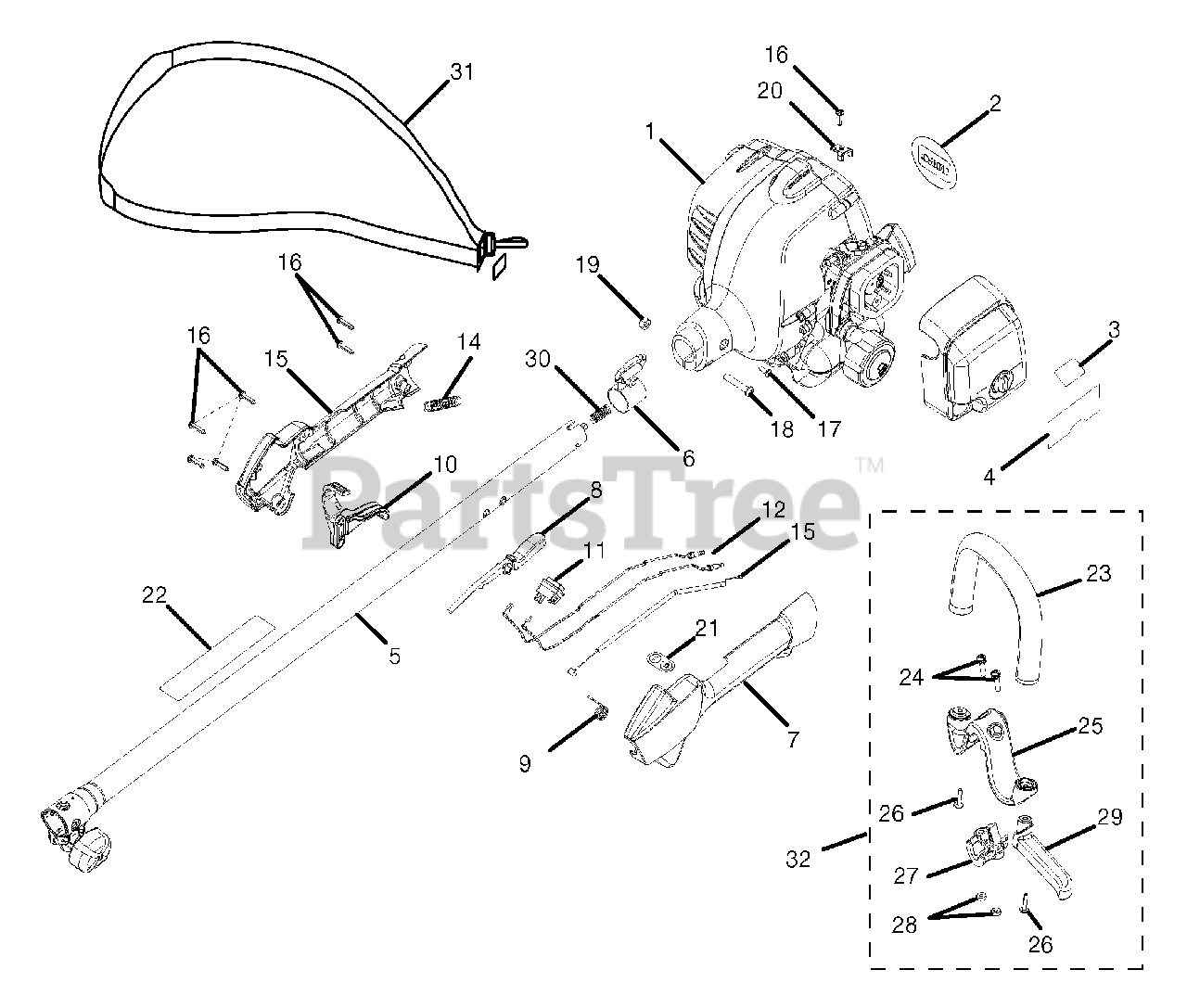

Upper Shaft Parts Diagram

  • Title

1

Homelite 0900106

Engine Assembly
(Superseded to 0900101)

$

$

Not available

2

Homelite 983646001

Logo Label

$

$

Not available

3

Homelite 983647001

Upper Start Label

$

$

Not available

4

Homelite 983648001

Lower Start Label

$

$

Not available

5

Homelite 985397001

Upper Shaft Assembly
(Superseded to 000998235)

$

$

Not available

6

Homelite 07255

Hanger Bracket

$

$

Not available

7

Homelite 983621001

Rear Handle Support

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 983623001

Lock-off Button

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 983624001

Trigger Spring
(Superseded to 690694002)

$1.49

$

In Stock, Qty 5

0

10

Homelite 983620001

Trigger

$

$

Not available

11

Homelite 984236002

Switch with Dust Shield

$

$

Not available

12

Homelite 983782001

Lead

$

$

Not available

13

Homelite 983635001

Cable, throttle
(Superseded to 308225001)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 983632003

Corrugated Tube

$

$

Not available

15

Homelite 983622001

Rear Handle Cover

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 983638009

Screw (M4 x 1.75 x 16 mm)
(Superseded to 660734001)

$1.49

$

In Stock, Qty 5

0

17

Homelite 968702007

Screw (#8-16 x 1/2 in.,Tri-Lobular)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 983799023

Screw (M5 x 1 x 30 mm)
(Superseded to T660697001)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 983619015

Hex Nut
(Superseded to 678029002)

$1.49

$

In Stock, Qty 9

0

20

Homelite 985255001

Retaining Ring

$

$

Not available

21

Homelite 984240001

On/Off Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 984105001

Warning Label
(Superseded to 984102001)

$

$

Not available

23

Homelite 984439001

Assist Handle w/grip

$10.99

$

Usually ships in 3-7 days

0

24

Homelite PS04159

12-24 x 1 SEMS

$1.49

$

In Stock, only 3 left!

0

25

Homelite PS04070

M Clamp
(Superseded to 518038001)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 82620

Slotted Torx Screw

$1.49

$

In Stock, Qty 5

0

27

Homelite PS04072

Clamp

$2.99

$

In Stock, only 2 left!

0

28

Homelite 81068

12 - 24 Hex nut

$

$

Not available

29

Homelite PS04071

Barrier Bar

$

$

Not available

30

Homelite 984106001

Spring, Shaft
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

31

Homelite 983961001

Harness Assembly W/Label

$

$

Not available

32

Homelite 983798002

Assist Handle W/Barrier

$

$

Not available

33

Homelite 983000115

Operator's Manual

$

$

Not available
