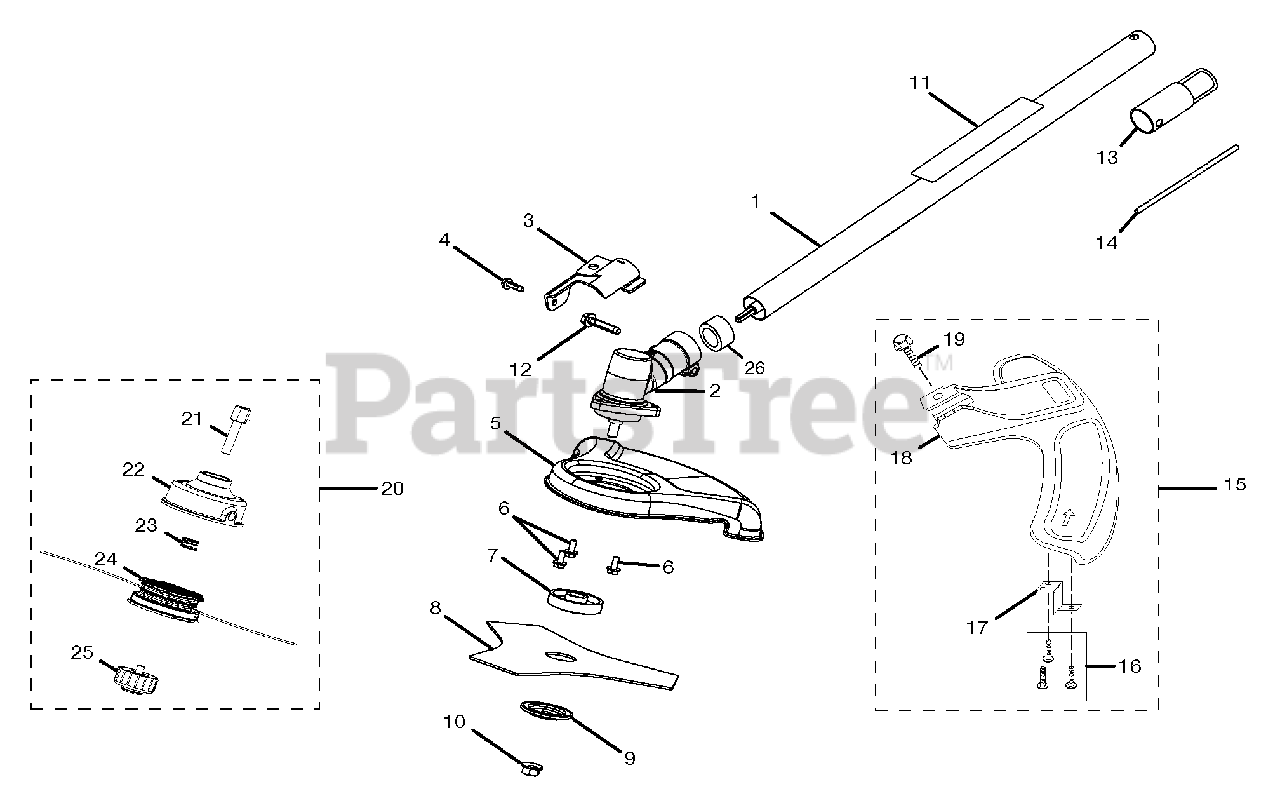

51934 - Toro Brush Cutter (SN: 230000001 - 999999999) Attachment Shaft Parts Diagram

Brush Cutter

Attachment Shaft Parts Diagram

  • Title

1

Homelite 983643001

Straight Shaft Assembly
(Superseded to 985572003)

$

$

Not available

2

Homelite PA01364

Gear Case Assembly
(Superseded to 308210008)

$

$

Not available

3

Homelite PS04420

Grass Deflector Clamp

$2.99

$

In Stock, only 2 left!

0

4

Homelite 983774003

Screw(#10-24 x 5/8 in. Hex Washer Head, Tri-Lobular)

$1.49

$

In Stock, only 1 left!

0

5

Homelite PS03538

Brushcutter Guard
(Superseded to 638120001)

$

$

Not available

6

Homelite 88049

Screw (#10-24 x 1/2 in., Sems Slotted Hex Head)

$

$

Not available

7

Homelite 04168A

Flanged Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 06297

Blade (Tri-Arc(TM))
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 04409

Cupped Washer

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 04277

Blade Nut,Left-handed threads
(Superseded to 678018001)

$

$

Not available

11

Homelite 984102001

Warning Label

$

$

Not available

12

Homelite 983381007

Screw(#1/4-20 x 1-1/4 in. Hex Washer Hd., Mach.)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite PS02155

Storage Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

14

Homelite 00063

Head Locking Tool
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

15

Homelite 984443003

Grass Deflector Assembly
(Superseded to 308473004)

$6.99

$

Usually ships in 3-7 days

0

16

Homelite 82543

Screw

$

$

Not available

17

Homelite PS04379

Line Cutting Blade

$

$

Not available

18

Homelite 984099001

Grass Deflector
(Superseded to 308473001)

$

$

Not available

19

Homelite 983379078

Screw(#1/4-20 x 1-1/4 in. Hex Washer Hd., Mach.)

$

$

Not available

20

Homelite 983797001

Trimmer Head Assembly
(Superseded to 000998265)

$60.99

$

In Stock, only 1 left!

0

21

Homelite PS04438

Trimmer Head Shaft Adaptor
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

22

Homelite A98231A

Trimmer Head
(Superseded to 099068001005)

$

$

Not available

23

Homelite 06713

Compression Spring

$1.49

$

In Stock, only 2 left!

0

24

Homelite 984238001

Spool with Line (.095)
(Superseded to 308044003)

$

$

Not available

25

Homelite A97910A

Retaining Cap, Left-handed Thread
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 985625001

Spacer
(Superseded to 518367001)

$1.49

$

In Stock, Qty 5

0
