51936 - Toro String Trimmer (SN: 230000001 - 999999999) Attachment Shaft Parts Diagram

String Trimmer

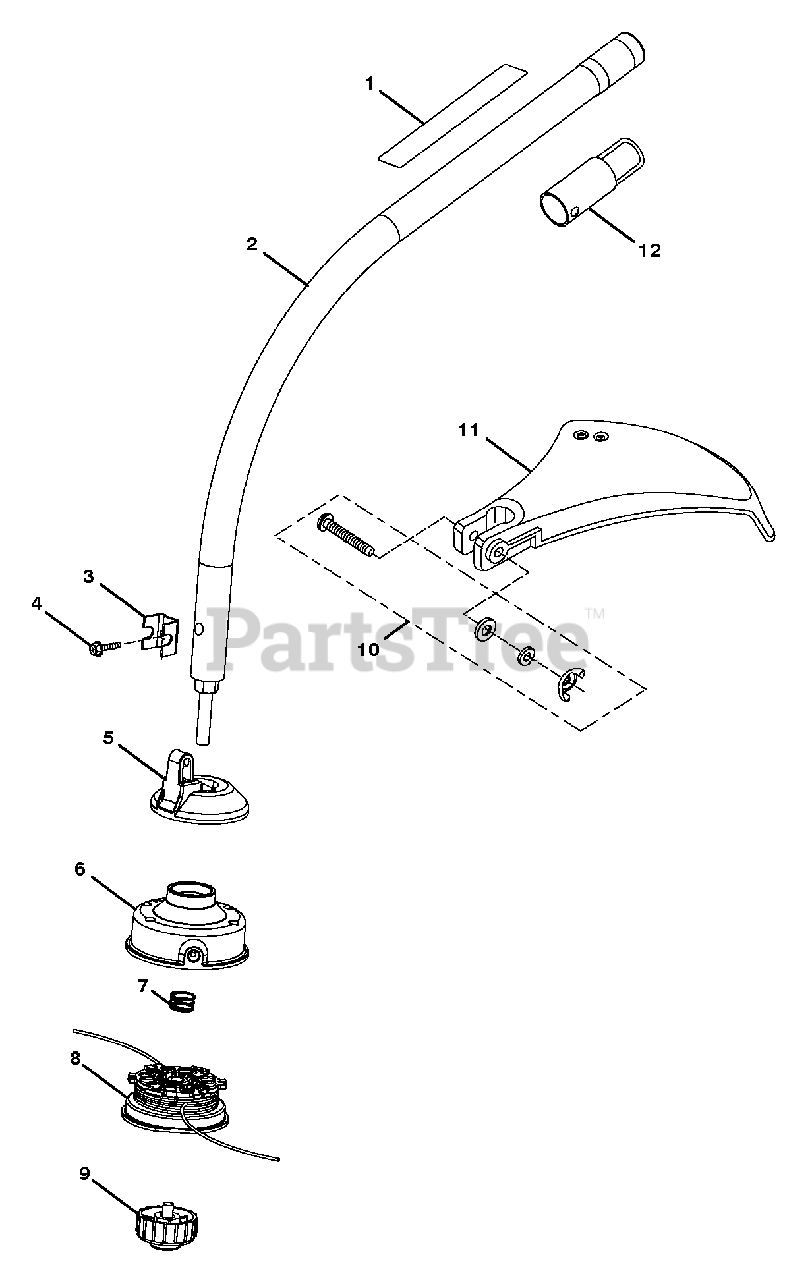

Attachment Shaft Parts Diagram

  • Title

1

Homelite 984032001

Warning Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 983657001

Curved Shaft Assembly

$

$

Not available

3

Homelite 07928

Clamp
(Superseded to UP04137)

$

$

Not available

4

Homelite 983774139

Screw (#10-24 x 3/8 in. Hex Washer Head, Tri-lobular)

$

$

Not available

5

Homelite 04189

Grass Barrier

$4.49

$

Usually ships in 3-7 days

0

6

Homelite A98231A

Trimmer Head
(Superseded to 099068001005)

$

$

Not available

7

Homelite 06713

Compression Spring

$1.49

$

In Stock, only 2 left!

0

8

Homelite 984238001

Spool with Line (.095)
(Superseded to 308044003)

$

$

Not available

9

Homelite A98866A

Retaining Cap, Right-hand threads
(Superseded to 308042002)

$

$

Not available

10

Homelite PA00249

Parts Kit

$

$

Not available

11

Homelite 985623001

Grass Deflector Assembly
(Superseded to T308744001)

$

$

Not available

12

Homelite PS02155

Storage Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0
