51938 - Toro String Trimmer (SN: 230000001 - 999999999) Attachment Shaft Parts Diagram

String Trimmer

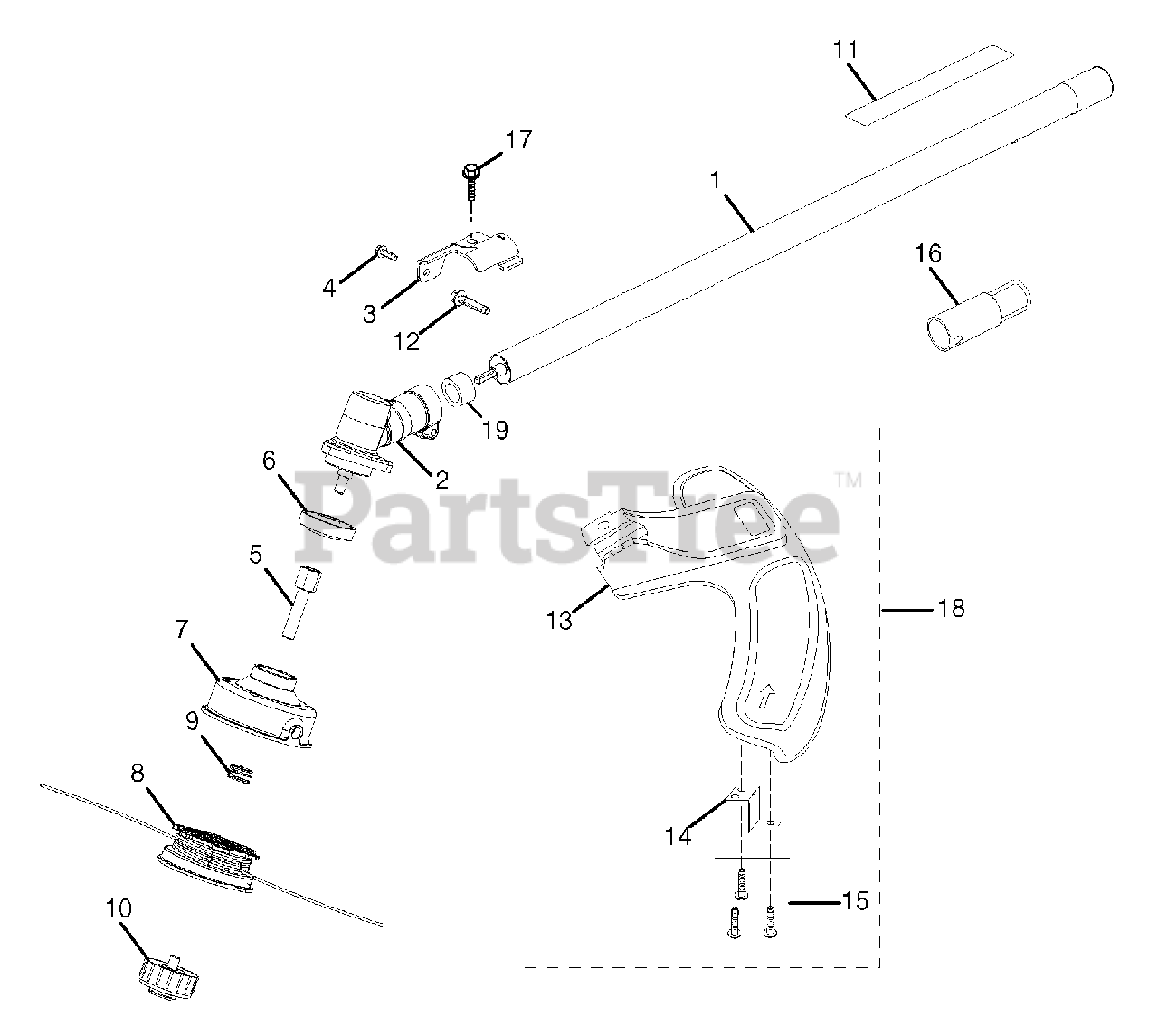

Attachment Shaft Parts Diagram

  • Title

1

Homelite 983643001

Straight Shaft Assembly
(Superseded to 985572003)

$

$

Not available

2

Homelite PA01364

Gear Case Assembly
(Superseded to 308210008)

$

$

Not available

3

Homelite PS04420

Grass Deflector Clamp

$5.49

$

In Stock, only 2 left!

0

4

Homelite 983774003

Screw (#10-24 X 5/8 in. Hex Washer Head, Tri-lobular)

$2.49

$

In Stock, Qty 5

0

5

Homelite PS04438

Trimmer Head Shaft Adaptor
(Superseded to 678019002)

$

$

Not available

6

Homelite 04168A

Flanged Washer
(Superseded to 099078001005)

$12.99

$

Usually ships in 3-7 days

0

7

Homelite A98231A

Trimmer Head
(Superseded to 099068001005)

$

$

Not available

8

Homelite 984238001

Spool with Line (.095)
(Superseded to 308044003)

$

$

Not available

9

Homelite 06713

Compression Spring

$2.49

$

In Stock, Qty 5

0

10

Homelite A97910A

Retaining Cap, Left-handed threads
(Superseded to 308042003)

$8.49

$

In Stock, only 4 left!

0

11

Homelite 984032001

Warning Label

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 983381007

Screw (#1/4-20 x 1-1/4 in. Hex Washer Head, Tri-lobular)

$2.49

$

In Stock, Qty 5

0

13

Homelite 984099001

Grass Deflector
(Superseded to 308473001)

$

$

Not available

14

Homelite PS04379

Line Cutting Blade

$

$

Not available

15

Homelite 82543

Screw (#8-16 x 1/2 in. Truss Head, Tri-lobular)

$

$

Not available

16

Homelite PS02155

Storage Cap
(Superseded to 518019004)

$2.49

$

In Stock, Qty 6

0

17

Homelite 983379078

Screw (#1/4-20 x 1-1/4 in. Hex Washer Head, Machine)

$

$

Not available

18

Homelite 984443001

Grass Deflector Assembly
(Superseded to 308473004)

$11.99

$

In Stock, only 2 left!

0

19

Homelite 985625001

Spacer
(Superseded to 518367001)

$2.49

$

In Stock, only 3 left!

0
