51944 - Toro Multi-Tool Powerhead (SN: 310000001 - 999999999) ENGINE ASSEMBLY Parts Diagram

Multi-Tool Powerhead

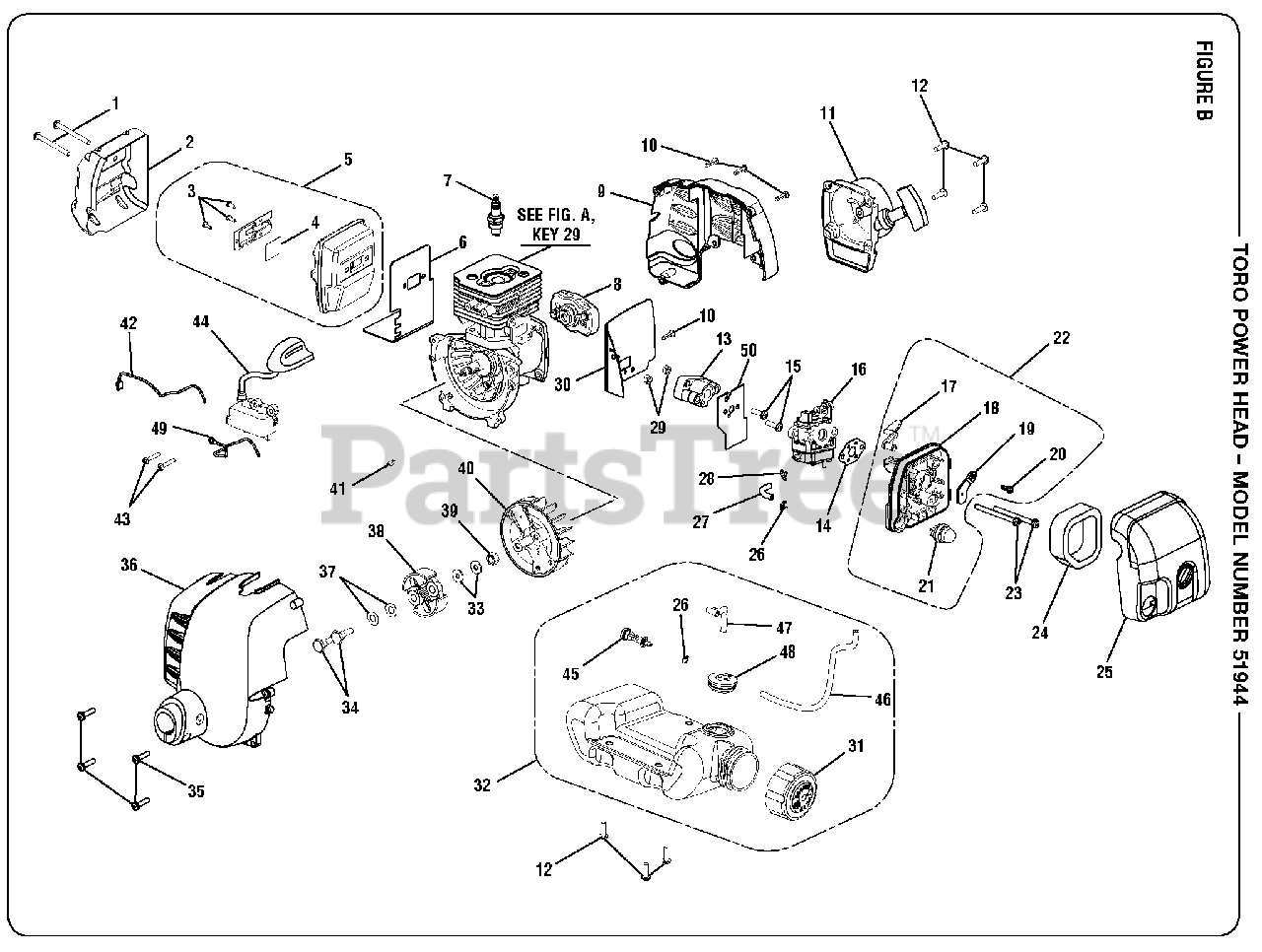

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Homelite 660347001

Screw (M5 x 50 mm, Torx Slotted Recessed Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 638027002

Heat Shield

$

$

Not available

3

Homelite 660870001

Screw (6-20 x 1/4 in., Pan Hd.)
(Superseded to 984759001)

$

$

Not available

4

Homelite 638268001

Screen
(Superseded to 984753001)

$3.49

$

In Stock, only 1 left!

0

5

Homelite 300748021

Muffler Assembly (Inc. Key Nos. 3-4)

$108.99

$

Usually ships in 3-7 days

0

6

Homelite 630002006

Muffler Gasket
(Superseded to 6300206)

$9.49

$

Usually ships in 3-7 days

0

7

Homelite 870174001

Spark Plug (RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

8

Homelite 308004001

Starter Cup

$20.99

$

Usually ships in 3-7 days

0

9

Homelite 590470001

Rear Engine Housing
(Superseded to 5947001)

$4.49

$

Usually ships in 3-7 days

0

10

Homelite 660563001

Screw (M4 x 16 mm, Torx Recessed Pan Hd.)
(Superseded to 660734001)

$2.49

$

In Stock, only 3 left!

0

11

Homelite 308430001

Starter Recoil Assembly
(Superseded to 308430016)

$

$

Not available

12

Homelite 660351001

Screw (M5 x 16 mm, Torx Slotted)
(Superseded to 6635101)

$2.49

$

In Stock, Qty 10

0

13

Homelite 518329001

Heat Dam Insulator

$9.49

$

Usually ships in 3-7 days

0

14

Homelite 900711003

Carburetor Gasket
(Superseded to 9071103)

$

$

Not available

15

Homelite 660344003

Screw (M5 x 31 mm, Torx Slotted Recessed Pan Hd.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 308480001

Carburetor Assembly

$

$

Not available

17

Homelite 590458001

Choke Lever
(Superseded to 5945801)

$

$

Not available

18

Homelite 518130001

Carburetor Plate

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 590946001

Choke Plate
(Superseded to 5994601)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$2.49

$

In Stock, Qty 5

0

21

Homelite 300780002

Primer Assembly
(Superseded to 01183)

$

$

Not available

22

Homelite 308478001

Filter Housing Assembly (Inc. Key Nos. 17-21)

$6.49

$

In Stock, only 2 left!

0

23

Homelite 660346001

Screw (M5 x 60 mm, Slotted Recessed Pan Hd. Machine)

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 560873001

Air Filter (Element)
(Superseded to 5687301)

$

$

Not available

25

Homelite 308207004

Cover Assembly
(Superseded to 308207002)

$

$

Not available

26

Homelite 690699001

Hose Clip
(Superseded to 6969901)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite 570373002

Fuel Line (45 mm)

$1.49

$

In Stock, only 3 left!

0

28

Homelite 690700001

Hose Clip
(Superseded to 6970001)

$2.49

$

In Stock, only 4 left!

0

29

Homelite 690840001

Hex Nut (M5 x .8 mm)
(Superseded to 983619014)

$

$

Not available

30

Homelite 900711008

Insulator Gasket
(Superseded to 903279002)

$

$

Not available

31

Homelite 310816001

Fuel Cap Assembly

$

$

Not available

32

Homelite 310833001

Fuel Tank and Cap Assembly (Inc. Key Nos. 31 and 45-48)
(Superseded to 308675054)

$

$

Not available

33

Homelite 690695001

Washer
(Superseded to 983788071)

$

$

Not available

34

Homelite 660353001

Clutch Screw

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 660344001

Screw (M5 x 20 mm, Torx Slotted Recessed Pan Hd.)
(Superseded to 6634401)

$

$

Not available

36

Homelite 300754023

Front Housing Assembly

$

$

Not available

37

Homelite 690696001

Curved Washer
(Superseded to 6969601)

$2.49

$

In Stock, only 3 left!

0

38

Homelite 300756006

Clutch Assembly
(Superseded to 300756007)

$

$

Not available

39

Homelite 690689001

Rotor Nut
(Superseded to 6968901)

$

$

Not available

40

Homelite 640574002

Rotor

$21.99

$

Usually ships in 3-7 days

0

41

Homelite 690688001

Woodruff Key (10 mm x 3 mm)
(Superseded to 983784006)

$

$

Not available

42

Homelite 290143001

Lead Wire (Black)
(Superseded to 2914301)

$3.99

$

In Stock, only 4 left!

0

43

Homelite 660349001

Screw (M4 x 22 mm, Torx Slotted Recessed Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

44

Homelite 290178006

Coil Boot Assembly

$

$

Not available

45

Homelite 300759005

Fuel Filter

$11.99

$

In Stock, only 2 left!

0

46

Homelite 570373016

Fuel Line (150 mm)

$1.49

$

In Stock, only 3 left!

0

47

Homelite 570373010

Fuel Line (118 mm)

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 560878001

Grommet
(Superseded to 560878002)

$

$

Not available

49

Homelite 290143002

Lead Wire (Red)
(Superseded to 2914302)

$2.49

$

In Stock, Qty 10

0

50

Homelite 901697001

Gasket

$2.49

$

In Stock, only 2 left!

0

Homelite 000998216

Spark Arrestor Kit (Inc. Key Nos. 3-4 and 6)
(Superseded to 986179001)

Note: (Not Shown)

$

$

Not available

Homelite 120900107

High Altitude Kit

Note: (Not Shown)

$17.99

$

Usually ships in 3-7 days

0
