51950 A - Toro String Trimmer (SN: 250000001 - 999999999) Lower Boom / Spool Assembly Parts Diagram

String Trimmer

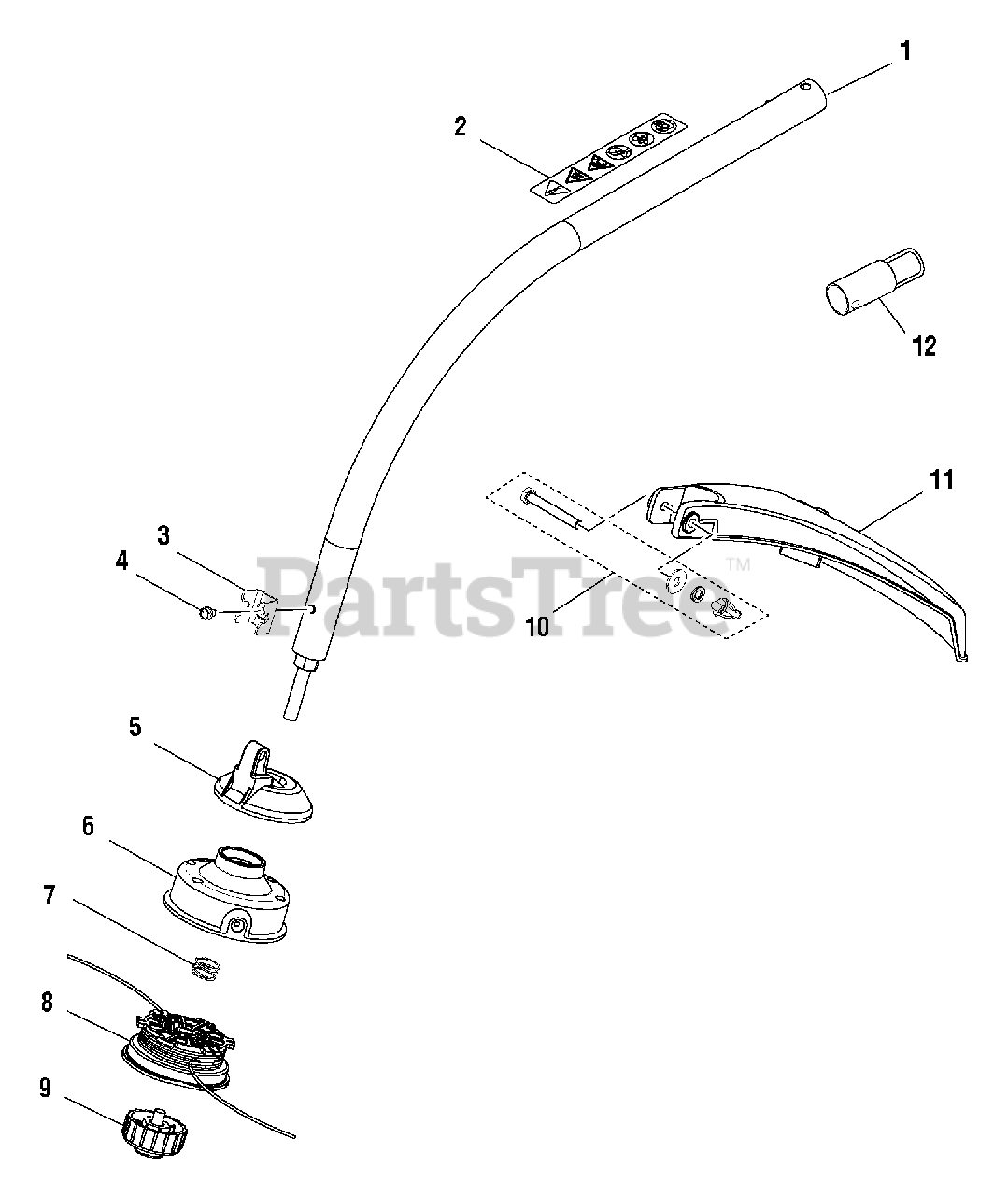

Lower Boom / Spool Assembly Parts Diagram

  • Title

1

Homelite 985569001

CURVED SHAFT ASSEMBLY

$

$

Not available

2

Homelite 984032001

WARNING LABEL

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 07928

CLAMP
(Superseded to UP04137)

$

$

Not available

4

Homelite 983774139

SCREW (#10-24 X 3/8 in. HEX WASHER HEAD)

$

$

Not available

5

Homelite 04189

GRASS SHIELD

$4.49

$

Usually ships in 3-7 days

0

6

Homelite A98231A

TRIMMER HEAD
(Superseded to 099068001005)

$

$

Not available

7

Homelite 06713

COMPRESSION SPRING

$1.49

$

In Stock, only 2 left!

0

8

Homelite 984238001

SPOOL WITH LINE (.095)
(Superseded to 308044003)

$

$

Not available

9

Homelite A98866A

RETAINING CAP, LEFT-HANDED THREAD
(Superseded to 308042002)

$

$

Not available

10

Homelite PA00249

FASTENER PARTS KIT

$

$

Not available

11

Homelite 985623001

GRASS DEFLECTOR ASSEMBLY
(Superseded to T308744001)

$

$

Not available

12

Homelite PS02155

HANGER CAP
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0
