51954 - Toro Powervac Blower Vacuum (SN: 310000001 - 999999999) Figure A Parts Diagram

Powervac Blower Vacuum

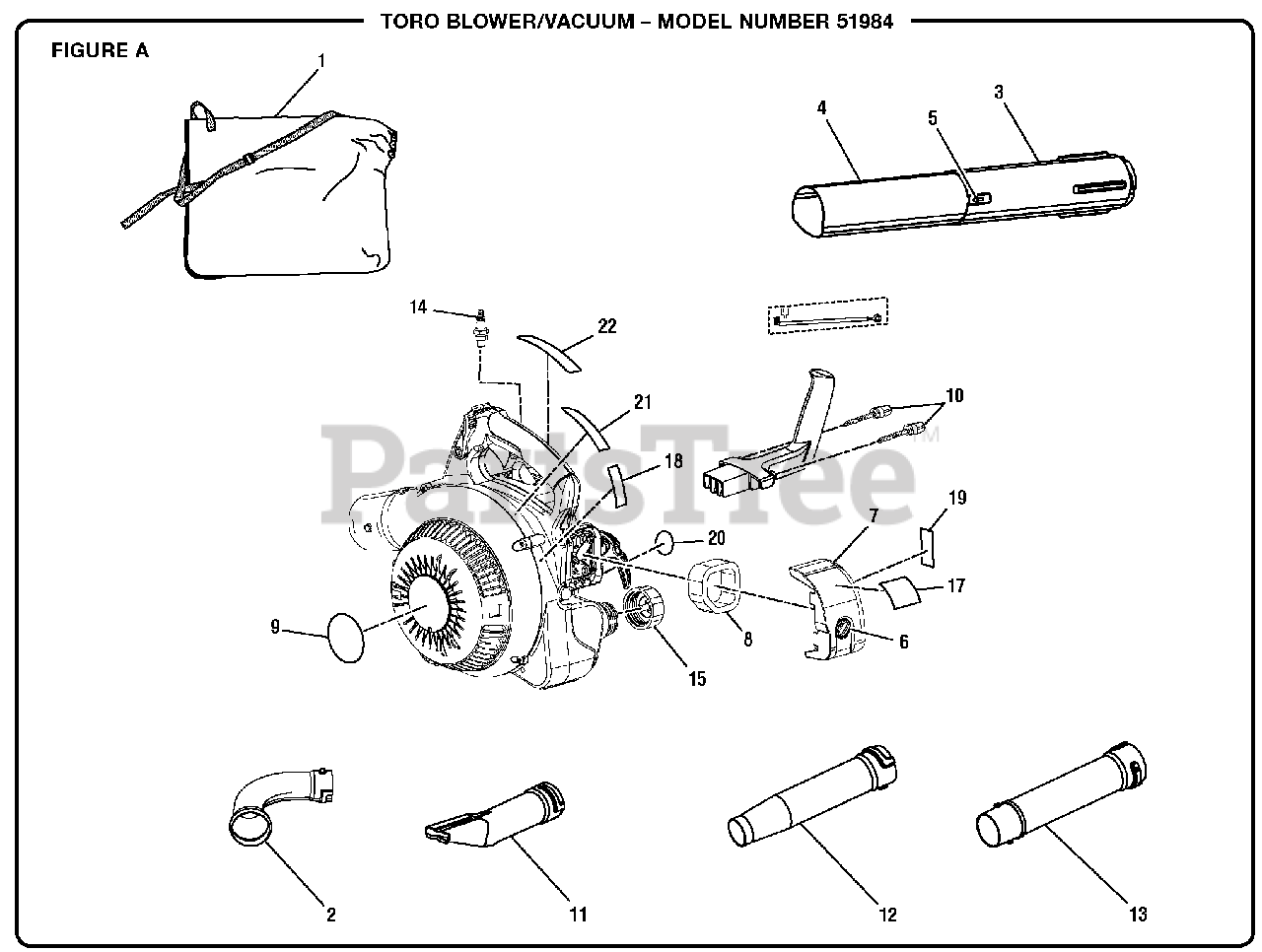

Figure A Parts Diagram

  • Title

1

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$13.99

$

Usually ships in 3-7 days

0

2

Homelite 570563002

Vacuum Bag Adaptor

$

$

Not available

3

Homelite 570561004

Upper Vacuum Tube

$

$

Currently unavailable

4

Homelite 570562002

Lower Vacuum Tube

$6.49

$

Usually ships in 3-7 days

0

5

Homelite 660621001

Vacuum Tube Screw
(Superseded to 82632)

$1.49

$

In Stock, Qty 13

0

6

Homelite 590461001

Knob
(Superseded to 5946101)

$1.49

$

In Stock, only 2 left!

0

7

Homelite 518253001

Air Filter Cover

$

$

Not available

8

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

9

Homelite 940906001

Vacuum Door Label

$

$

Not available

10

Homelite 518273001

Vacuum Handle Knob

$1.49

$

In Stock, Qty 10

0

11

Homelite 580613002

High Velocity Nozzle w/ Leaf Scraper

$3.99

$

In Stock, only 1 left!

0

12

Homelite 570564002

Sweeper Nozzle

$

$

Not available

13

Homelite 570543002

Upper Blower Tube
(Superseded to 306947001)

$7.99

$

In Stock, only 4 left!

0

14

Homelite 870170001

Spark Plug (Champion RCJ4)

$10.99

$

Usually ships in 3-7 days

0

15

Homelite 310816001

Fuel Cap Assembly

$2.99

$

Usually ships in 3-7 days

0

16

Homelite 290294001

Ground Wire Kit

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 940908001

Starting Instructions Label

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 940910001

"Impeller" Label

$

$

Currently unavailable

19

Homelite 940835003

Choke Label

$

$

Not available

20

Homelite 940907001

Starter Cover Label

$

$

Not available

21

Homelite 940909001

"Metal" Label

$

$

Currently unavailable

22

Homelite 940657043

Icon Strip

$

$

Not available

Homelite 988000112

Operator's Manual

Note: (Not Shown)

$

$

Not available
