51955 - Toro String Trimmer (SN: 311000001 - 999999999) Figure A Parts Diagram

String Trimmer

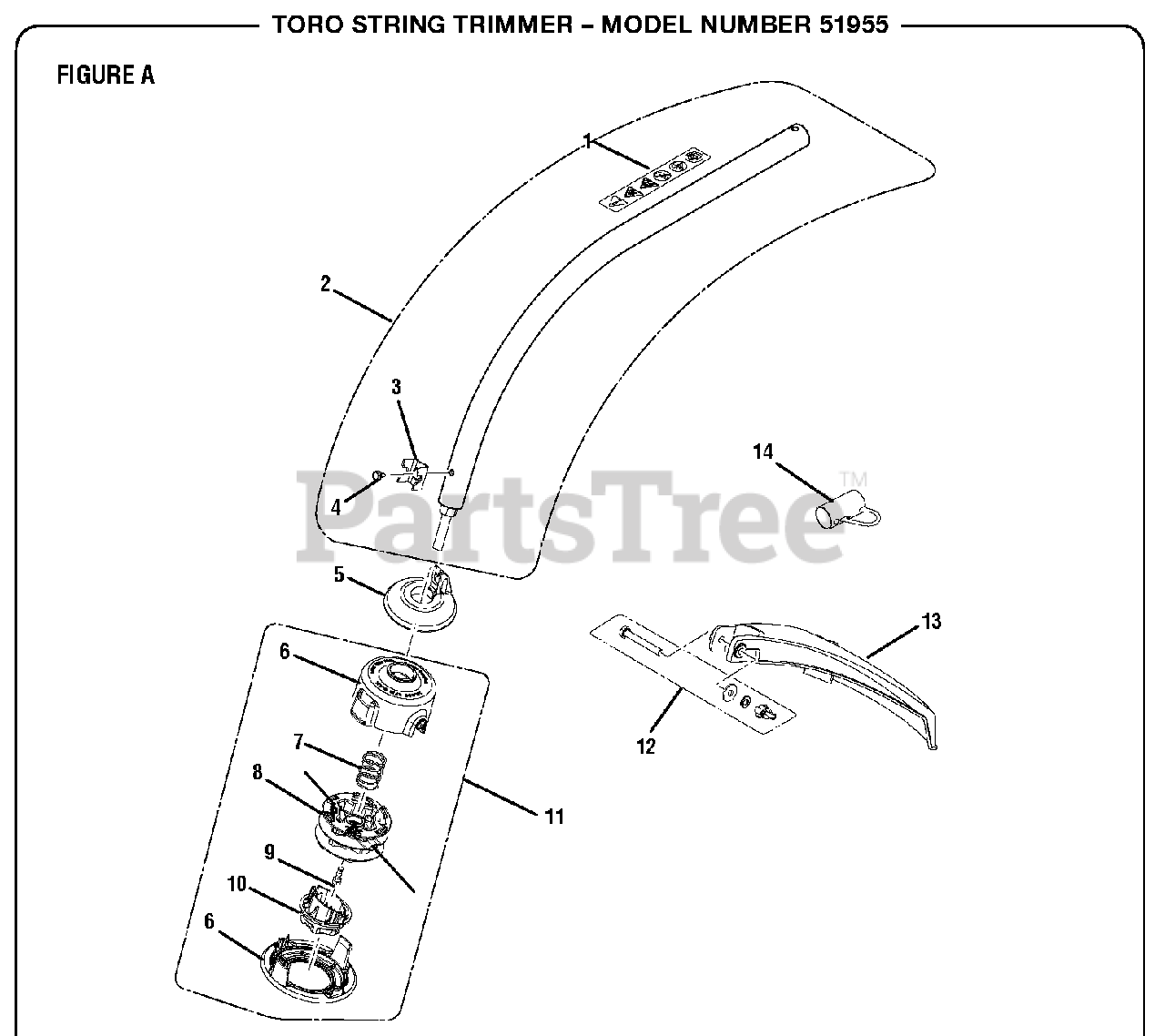

Figure A Parts Diagram

  • Title

1

Homelite 940230132

Warning Label
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308841011

Curved Shaft Assembly

Note: (Inc. Key Nos. 1, 3 and 4)

$

$

Not available

3

Homelite 638001001

Clamp

$1.49

$

In Stock, only 2 left!

0

4

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd.)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 522702001

Grass Shield

$1.49

$

In Stock, Qty 5

0

6

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$7.99

$

In Stock, Qty 6

0

7

Homelite 678749001

Compression Spring

$1.49

$

In Stock, Qty 11

0

8

Homelite 308924002

Spool
(Superseded to 308924001)

$

$

Not available

9

Homelite 660650001

Bolt (5/16-18 x 1/2 in.)

$1.49

$

In Stock, only 2 left!

0

10

Homelite 518803003

Bump Knob

$

$

Not available

11

Homelite 308923014

Trimmer Head Assembly (.095)

Note: (Inc. Key Nos. 5-9)

$53.99

$

In Stock, only 4 left!

0

12

Homelite 120650001

Fastener Parts Kit
(Superseded to PA00249)

$

$

Not available

13

Homelite 308052005

Guard

Note: (Inc. Key No. 11)

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0
