51956 - Toro String Trimmer (SN: 312000001 - 999999999) Figure B Parts Diagram

String Trimmer

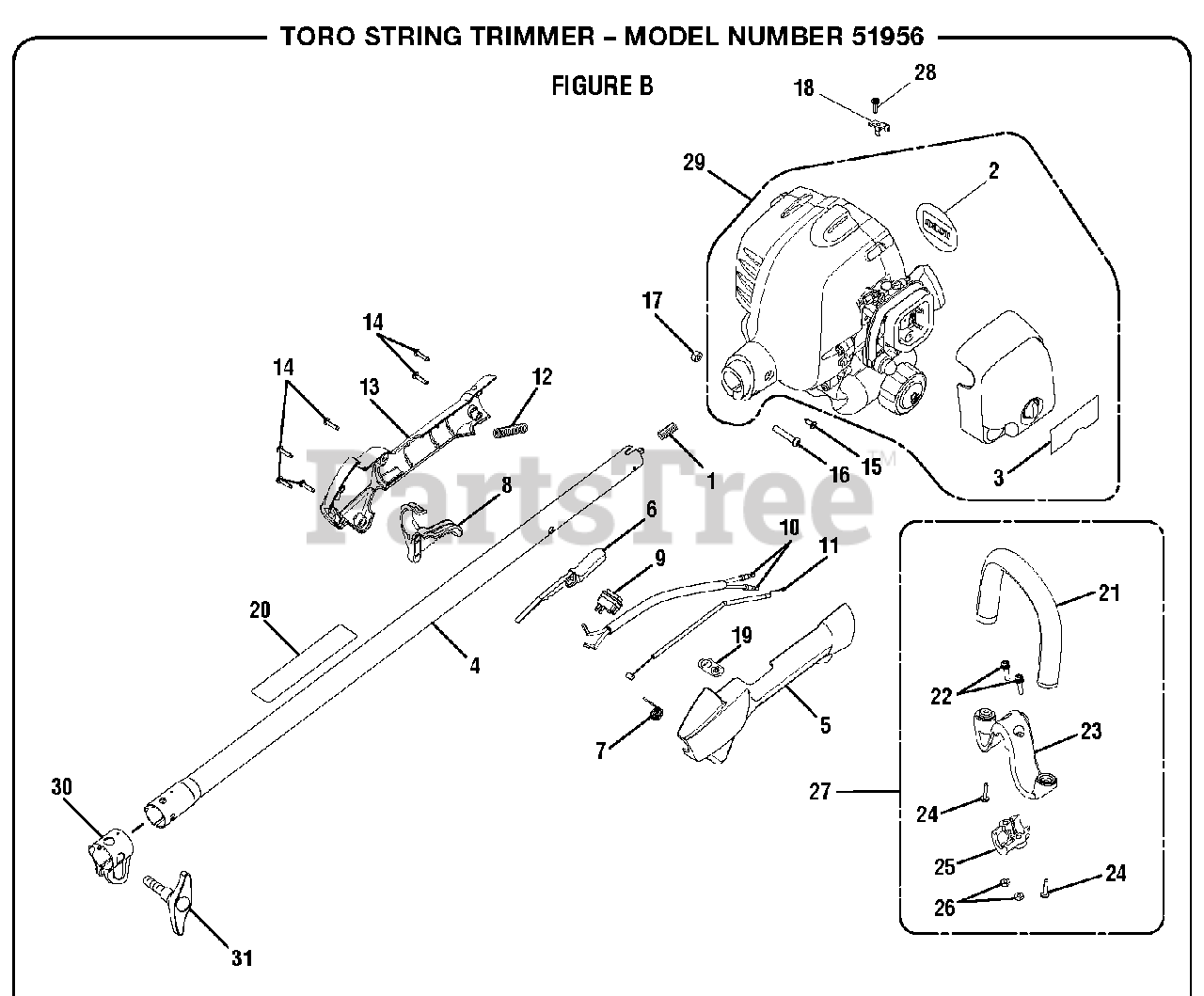

Figure B Parts Diagram

  • Title

1

Homelite 678906001

Compression Spring

$1.49

$

In Stock, only 2 left!

0

2

Homelite 940865001

Logo Plate

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 940686099

Lower Start Label

$

$

Not available

4

Homelite 308159013

Upper Shaft Assembly

Note: (Inc Key Nos 20 and 30-31)

$

$

Not available

5

Homelite 518122001

Rear Handle Support
(Superseded to 983621001)

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 518125001

Lock-off Button
(Superseded to 983623001)

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 690694002

Trigger Spring

$2.49

$

In Stock, Qty 5

0

8

Homelite 518124001

Trigger
(Superseded to 983620001)

$

$

Not available

9

Homelite 760700001

On/Stop Switch

$5.49

$

In Stock, only 2 left!

0

10

Homelite 308863029

Lead

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 308225003

Cable, Throttle

$2.99

$

In Stock, only 2 left!

0

12

Homelite 518210004

Corrugated Tube
(Superseded to 983632003)

$

$

Not available

13

Homelite 518123001

Rear Handle Cover
(Superseded to 983622001)

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 660563002

Screw (M4 x 16 mm)

$2.49

$

In Stock, Qty 13

0

15

Homelite 660669001

Screw (#8-16 x 1/2 in Tri-Lobular)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite T660697001

Screw (M6 x 1-30 mm)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 678029002

Hex Nut (M63 x 1)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 638133001

Throttle Cable Clamp
(Superseded to 985255001)

$

$

Not available

19

Homelite 940864003

On/Stop Label

$

$

Not available

20

Homelite 940657034

Warning Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 000998535

Front Handle w/Grip
(Superseded to 000998217)

$

$

Not available

22

Homelite 660653005

Screw (#12-24 x 1 in, Slotted Torx)

$

$

Not available

23

Homelite 518038001

M Clamp

$4.49

$

In Stock, only 1 left!

0

24

Homelite 660637002

Screw (10-14 x 1 in)

$2.49

$

Usually ships in 3-7 days

0

25

Homelite 518020001

Clamp
(Superseded to PS04072)

$5.49

$

Usually ships in 3-7 days

0

26

Homelite 678106001

Hex Nut (12-24)
(Superseded to 81068)

$

$

Not available

27

Homelite 308056003

Front Handle Assembly

$

$

Not available

28

Homelite 660734001

Screw (M4 x 16 mm)

$2.49

$

In Stock, only 3 left!

0

29

Homelite 308466013

Powerhead Assembly

$

$

Not available

30

Homelite 638010001

Boom Clamp

$

$

Not available

31

Homelite 308045004

Knob

$

$

Not available

Homelite 990000028

Operator's Manual

$

$

Not available
