51957 - Toro String Trimmer (SN: 313000001 - 999999999) Figure A Parts Diagram

String Trimmer

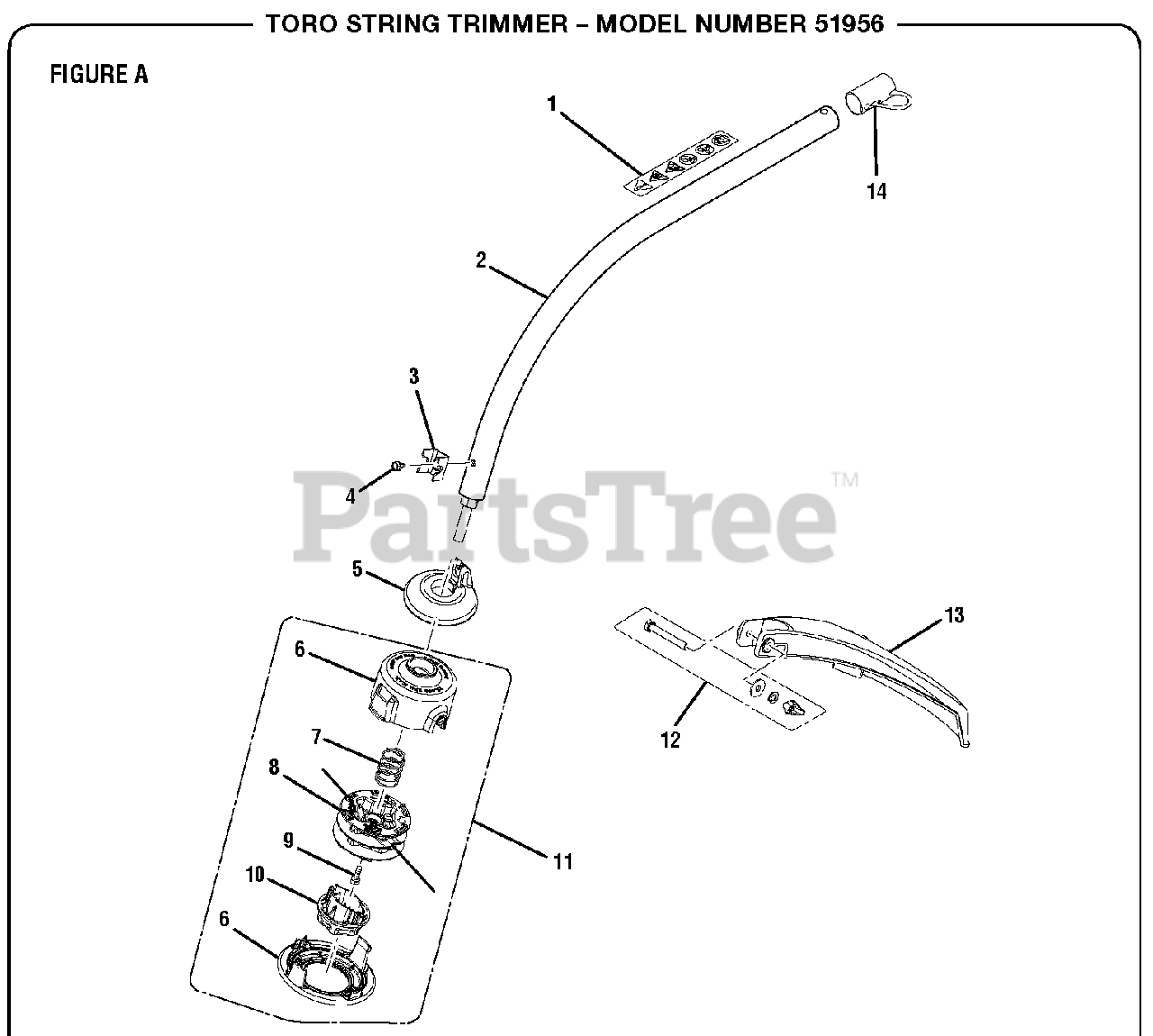

Figure A Parts Diagram

  • Title

1

Homelite 940657032

Warning Label
(Superseded to 940657165)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308841010

Curved Shaft Assembly

Note: (Inc Key Nos 1, 3-4 and 14)

$

$

Not available

3

Homelite 638001001

Clamp

$1.49

$

In Stock, only 2 left!

0

4

Homelite 660647001

Screw (#10-32 x 3/8 in, Hex Washer Hd)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 522702001

Grass Shield

$1.49

$

In Stock, only 4 left!

0

6

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$7.99

$

In Stock, Qty 5

0

7

Homelite 678749001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

8

Homelite 308924002

Spool
(Superseded to 308924001)

$

$

Not available

9

Homelite 660650001

Bolt (5/16-18 x 1/2 in)

$1.49

$

In Stock, only 2 left!

0

10

Homelite 518803003

Bump Knob

$

$

Not available

11

Homelite 309034001

Trimmer Head Assembly (095)

Note: (Inc Key Nos 6-10)

$

$

Not available

12

Homelite 120650001

Fastener Parts Kit
(Superseded to PA00249)

$

$

Not available

13

Homelite 308052005

Guard

Note: (Inc Key No 12)

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0
