51958 (090309040) - Toro 17" Curved-Shaft String Trimmer, Revision 03 (SN: 319000001 - 319999999) (2020-03) FIGURE A Parts Diagram

17" Curved-Shaft String Trimmer, Revision 03

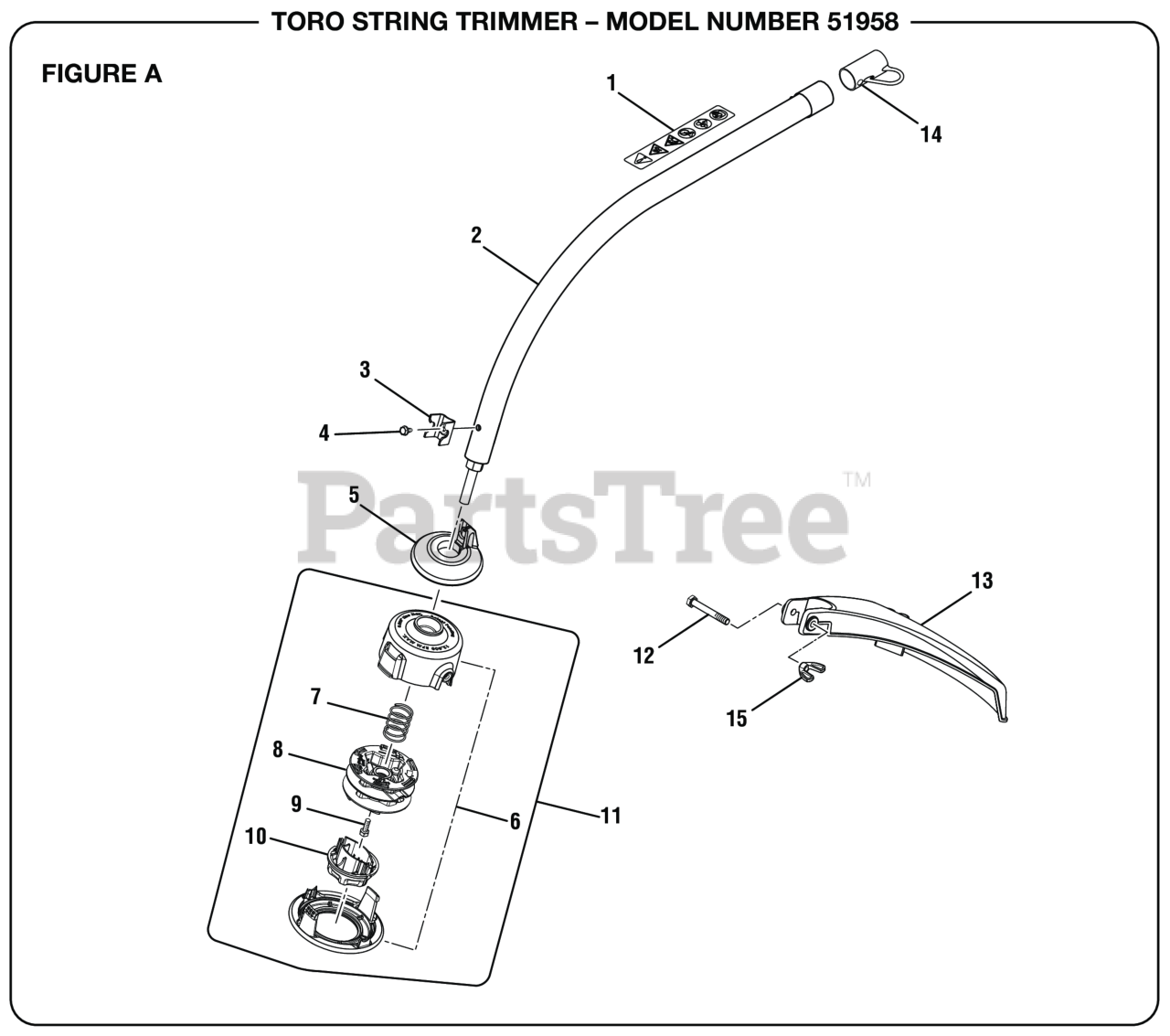

FIGURE A Parts Diagram

  • Title

1

Homelite 940657165

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 308841018

Curved Shaft Assembly

$22.99

$

Usually ships in 3-7 days

0

3

Homelite 638001001

CLAMP

$1.49

$

In Stock, only 2 left!

0

4

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd. S.T.)

$1.49

$

In Stock, only 2 left!

0

5

Homelite 308052001

Curved Shaft Grass Deflector
(Superseded to T308744001)

$

$

Not available

6

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$7.99

$

In Stock, Qty 5

0

7

Homelite 678749001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

8

Homelite 308924001

Spool Assembly

$

$

Not available

9

Homelite 660650001

Bolt (5/16-18 x 1/2 in.)

$1.49

$

In Stock, only 2 left!

0

10

Homelite 518803003

Bump Knob

$

$

Not available

11

Homelite 309034006

Trimmer Head Assembly (.095)
(Superseded to 308923014)

$53.99

$

Usually ships in 3-7 days

0

12

Homelite 660650001

Bolt (5/16-18 x 1/2 in.)

$1.49

$

In Stock, only 2 left!

0

13

Homelite 308052010

Grass Deflector Assembly

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 519019004

Hanger Cap

$

$

Currently unavailable

15

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0
