51958 (090309050) - Toro 17" Curved-Shaft String Trimmer (SN: 320000001 - 320999999) (2020) FIGURE A Parts Diagram

17" Curved-Shaft String Trimmer

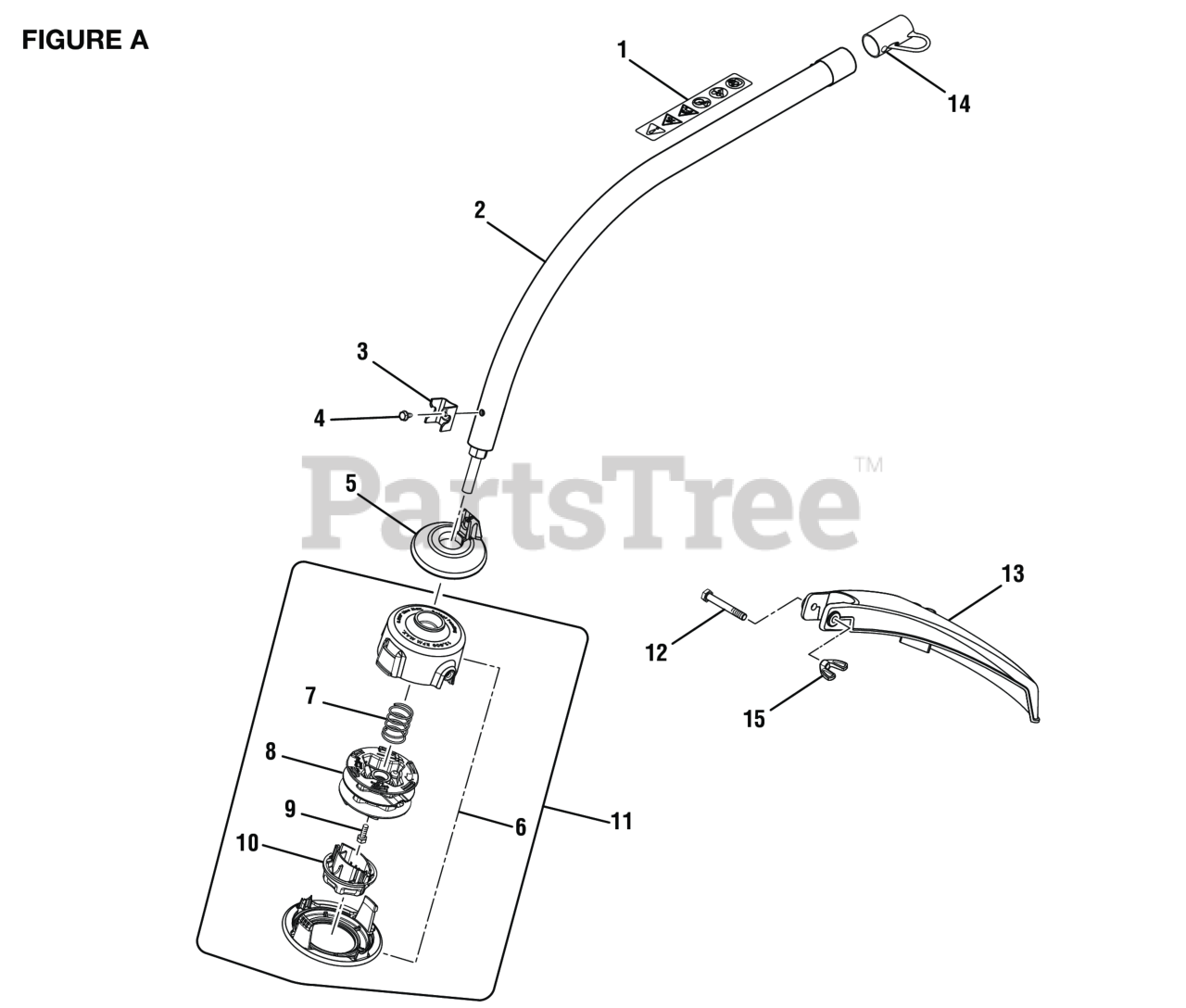

FIGURE A Parts Diagram

  • Title

1

Homelite 940657165

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 308841018

Curved Shaft Assembly

Note: (Inc. Key Nos. 1, 3-4 and 14)

$45.99

$

In Stock, only 2 left!

0

3

Homelite 638001001

CLAMP

$1.99

$

In Stock, Qty 5

0

4

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd. S.T.)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 522702001

Grass Shield

$1.99

$

In Stock, Qty 5

0

6

Homelite 308827003

Stringhead Housing
(Superseded to 308827002)

$

$

Not available

7

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

8

Homelite 308924001

Spool Assembly

$

$

Not available

9

Homelite 660650001

Bolt (5/16-18 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518803003

Bump Knob

$

$

Not available

11

Homelite 309034006

Trimmer Head Assembly (.095)
(Superseded to 308923014)

Note: (Inc. Key Nos. 6-10)

$91.99

$

In Stock, Qty 10

0

12

Homelite 660643009

Bolt (1/4-20 x 45 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 308052010

Grass Deflector Assembly

Note: (Inc. Key No. 12)

$

$

Not available

14

Homelite 518019004

Hanger Cap

$1.99

$

In Stock, Qty 6

0

15

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 4 left!

0
