51977 - Toro 18" Straight Shaft String Trimmer (SN: 313000001 - 999999999) Figure A Parts Diagram

18" Straight Shaft String Trimmer

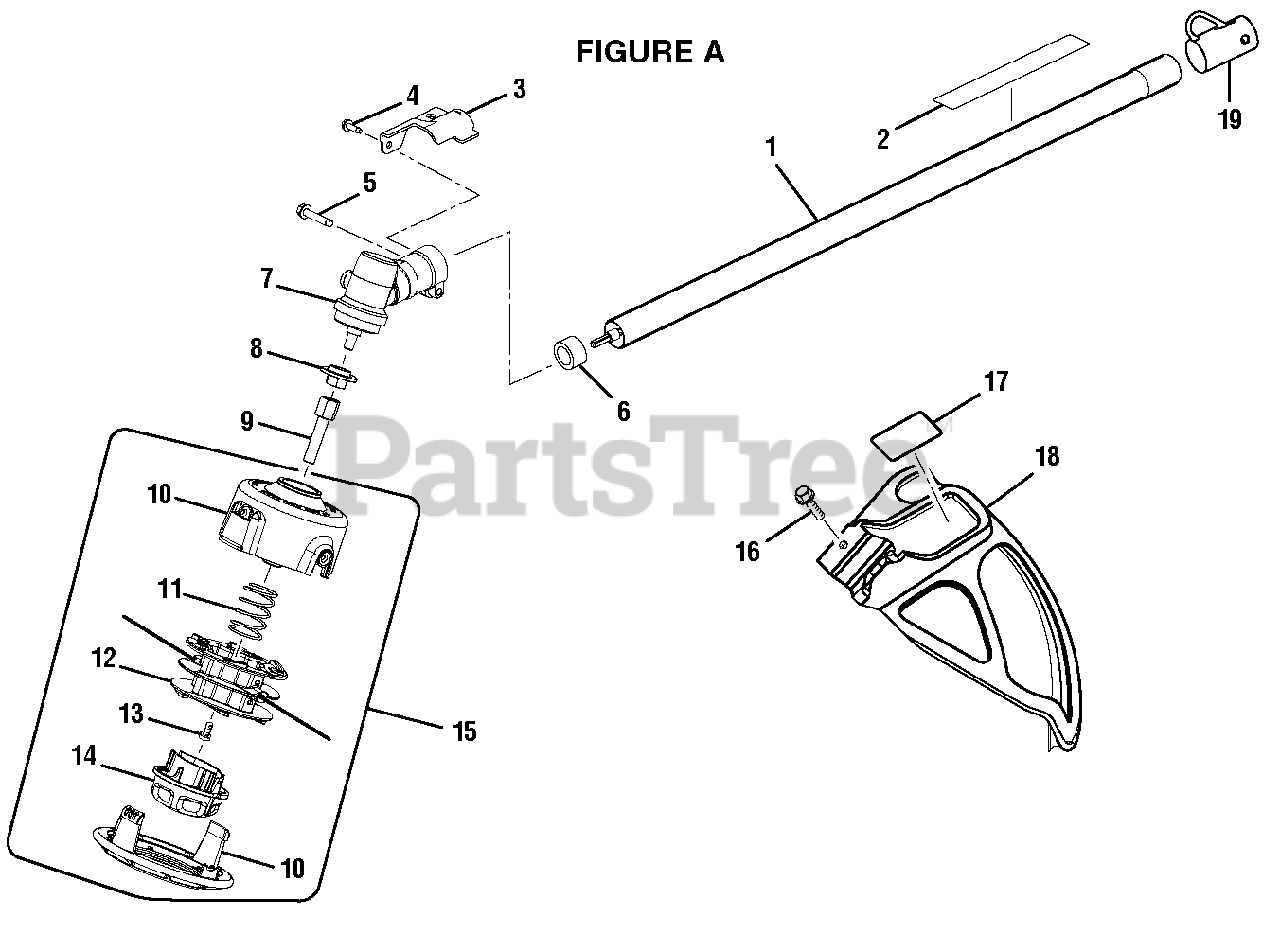

Figure A Parts Diagram

  • Title

1

Homelite 308035013

Straight Shaft Assembly

Note: (Inc. Key Nos. 2 and 19)

$

$

Not available

2

Homelite 940657032

Warning Label
(Superseded to 940657165)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 638125003

Grass Deflector Clamp

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 660736001

Screw (#10-24 x 5/8 in. Hex Washer Hd.)
(Superseded to 983774003)

$1.49

$

In Stock, only 1 left!

0

5

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

7

Homelite 308210001

Gear Case Assembly
(Superseded to 308210008)

$34.99

$

Usually ships in 3-7 days

0

8

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

9

Homelite 678019004

Trimmer Head Shaft Adaptor

$2.99

$

In Stock, only 3 left!

0

10

Homelite 518800005

Stringhead Housing
(Superseded to 308923015)

$53.99

$

In Stock, only 3 left!

0

11

Homelite 678749001

Compression Spring

$1.49

$

In Stock, Qty 10

0

12

Homelite 308924002

Spool
(Superseded to 308924001)

$

$

Not available

13

Homelite 660649001

Bolt (5/16-18 x 1/2 in., L.H.)

$1.49

$

In Stock, only 2 left!

0

14

Homelite 518803003

Bump Knob

$

$

Not available

15

Homelite 308923015

Trimmer Head Assembly (.095)
(Superseded to 308923014)

Note: (Inc. Key Nos. 10-14)

$53.99

$

In Stock, only 3 left!

0

16

Homelite 660738002

Screw (#1/4-20 x 1-1/4 in. Hex Washer Hd.)
(Superseded to 983379078)

$

$

Not available

17

Homelite 940627020

Grass Deflector Label

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 308473004

Grass Deflector Assembly
(Superseded to 308473006)

Note: (Inc. Key No. 16-17)

$6.99

$

In Stock, only 1 left!

0

19

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, only 2 left!

0
