51987 - Toro Powervac Blower Vacuum (SN: 313000001 - 999999999) HOUSING ASSEMBLY Parts Diagram

Powervac Blower Vacuum

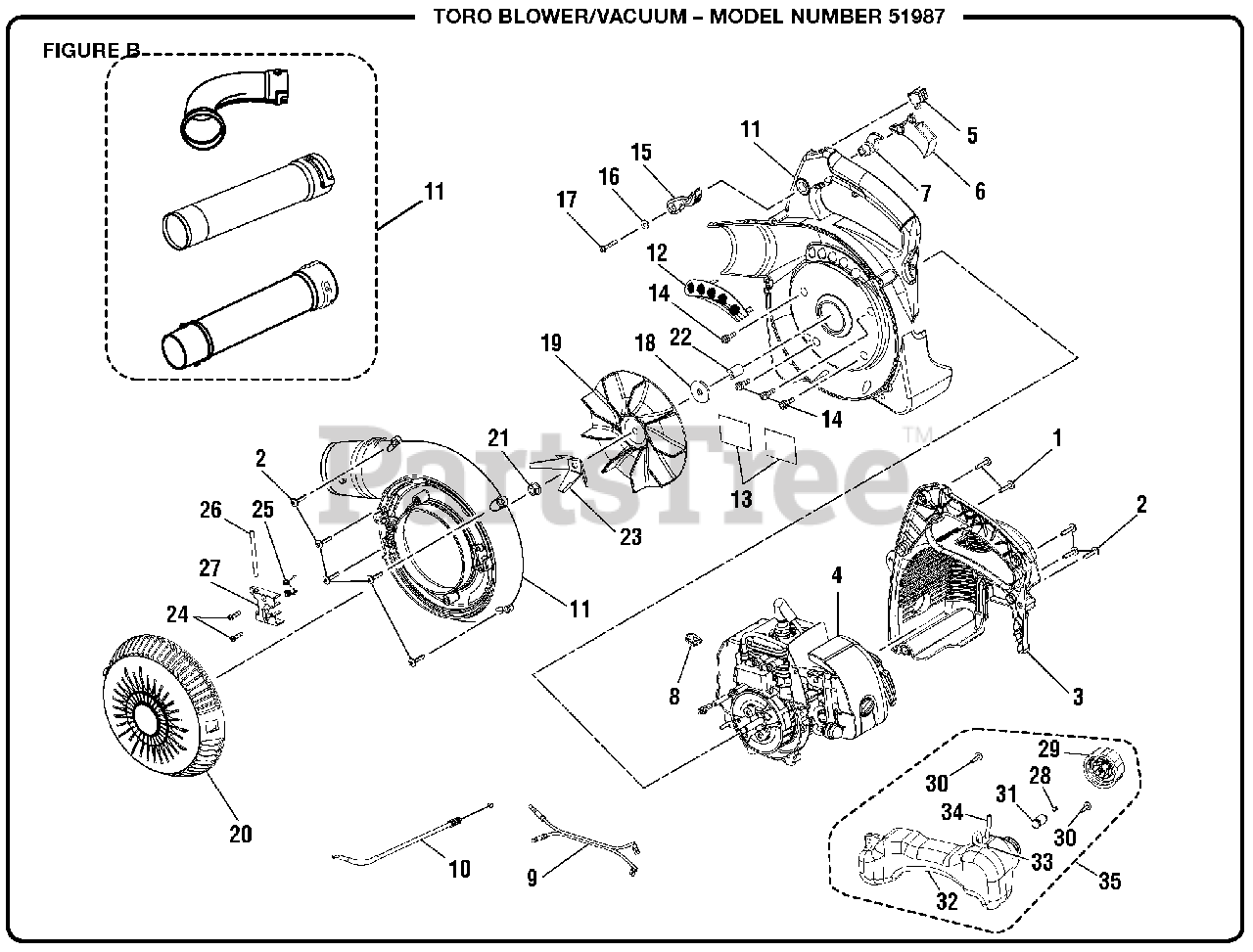

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Homelite 660674003

Screw

$

$

Not available

2

Homelite 660674001

Screw (10-14 x 7/8 in.)
(Superseded to 82537)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 518323022

Engine Shroud

$

$

Not available

4

Homelite 308107024

Engine

$248.99

$

Usually ships in 3-7 days

0

5

Homelite 760363005

Engine Switch

$

$

Not available

6

Homelite 518255002

Throttle Trigger

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 518150001

Throttle Lock (Cruise Control)

$1.49

$

In Stock, only 3 left!

0

8

Homelite 570624001

Rubber Grommet

$

$

Not available

9

Homelite 290986002

Wire Harness

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 308209003

Throttle Cable Assembly

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 312004001

Housing and Tube Assembly Kit

$

$

Not available

12

Homelite 638179001

Mesh Screen

$

$

Not available

13

Homelite 900955002

Heat Shield Tape

$

$

Not available

14

Homelite 660344005

Screw (M5 x 20 mm)

$

$

Not available

15

Homelite 518160011

Cruise Control Lever

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678125001

Washer (Steel)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 660666001

Screw (8-14 x 1 in.)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 678126005

Washer

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 518265003

Fan

$6.99

$

Usually ships in 3-7 days

0

20

Homelite 522811001

Vacuum Door

$5.99

$

Usually ships in 3-7 days

0

21

Homelite 678128002

Lock Nut (M8 x 1.25)

$1.49

$

In Stock, only 1 left!

0

22

Homelite 638517002

Spacer

$

$

Not available

23

Homelite 678114003

Mulcher Blade

$

$

Not available

24

Homelite 660665001

Screw (8-14 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 678117001

Hinge Spring

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 650026002

Pin

$

$

Not available

27

Homelite 518632001

Vacuum Door Hinge

$

$

Not available

28

Homelite 690765001

Filter Spring Clamp

$1.49

$

In Stock, Qty 6

0

29

Homelite 310816005

Fuel Cap Assembly

$4.49

$

Usually ships in 3-7 days

0

30

Homelite 660674002

Screw (10-14 x 7/8 in.)

$1.49

$

In Stock, only 1 left!

0

31

Homelite 310976001

Fuel Filter

$5.99

$

In Stock, Qty 12

0

32

Homelite 310752013

Fuel Tank Assembly

Note: (Inc. Key Nos. 28, 31, and 33-34)

$

$

Not available

33

Homelite 562967014

Rubber Tubing (214 mm, Low Permeation)

$

$

Not available

34

Homelite 570373012

Rubber Tubing (114 mm, Low Permeation)

$1.49

$

In Stock, Qty 7

0

35

Homelite 309042005

Fuel Tank and Cap Assembly

Note: (Inc. Key Nos. 28-34)

$

$

Not available
