51988 (090157001) - Toro Powervac Blower Vacuum (SN: 315000001 - 315999999) (2015) Figure C Parts Diagram

Powervac Blower Vacuum

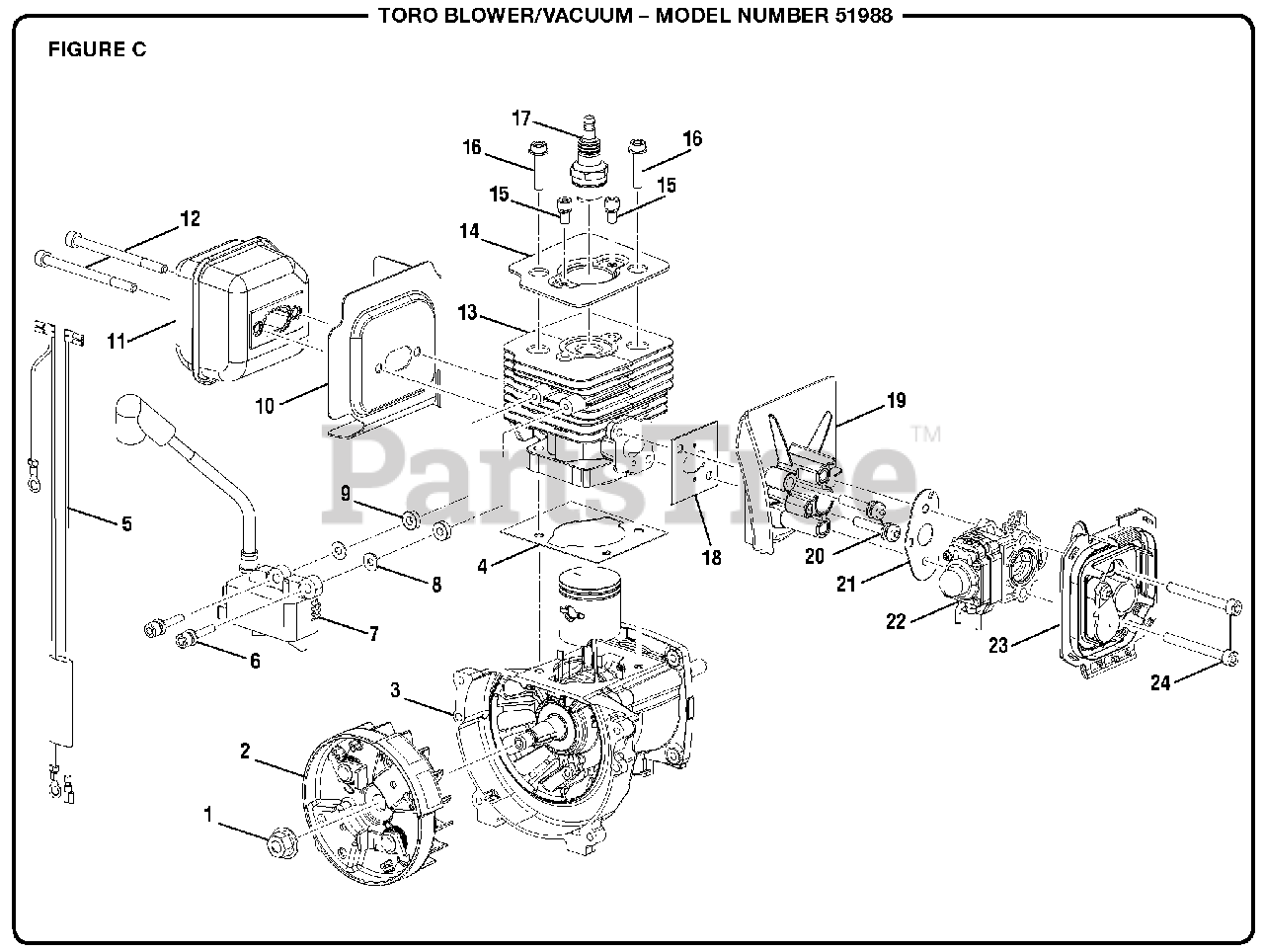

Figure C Parts Diagram

  • Title

1

Homelite 690689001

Nut (M8)
(Superseded to 6968901)

$

$

Not available

2

Homelite 307201002

Flywheel Assembly

$12.99

$

Usually ships in 3-7 days

0

3

Homelite 307366001

Crankcase and Piston Assembly

$70.99

$

Usually ships in 3-7 days

0

4

Homelite 900709005

Gasket

$1.49

$

In Stock, only 3 left!

0

5

Homelite 291388001

Wire Harness

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 660349001

Screw (M4 x 22 mm)

$1.49

$

In Stock, Qty 5

0

7

Homelite 290178029

Ignition Module

$29.99

$

Usually ships in 3-7 days

0

8

Homelite 690969001

Washer (42ID x 10OD x ?t)

$1.49

$

In Stock, Qty 5

0

9

Homelite 590462001

Spacer

$1.99

$

In Stock, only 2 left!

0

10

Homelite 639243002

Muffler Gasket

$2.99

$

In Stock, only 2 left!

0

11

Homelite 300748042

Muffler Assembly

$82.99

$

In Stock, only 1 left!

0

12

Homelite 662169001

Screw (M5 x 65 mm, Torx T25)

$1.49

$

In Stock, Qty 10

0

13

Homelite 640570034

Cylinder

$

$

Not available

14

Homelite 630002021

Cylinder Plate

$1.49

$

In Stock, only 3 left!

0

15

Homelite 660351002

Screw w/Washer (M5 x 10 mm)
(Superseded to 983660005)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 660342001

Screw (M5 x 22 mm)

$1.49

$

In Stock, Qty 5

0

17

Homelite 870174001

Spark Plug (RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

18

Homelite 562927008

Cylinder Gasket

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 528049001

Heat Sink

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 662163001

Screw (M5 x 27 mm, Torx T20)

$

$

Not available

21

Homelite 900711015

Carburetor Gasket

$

$

Not available

22

Homelite 308480002

Carburetor Assembly

$55.99

$

In Stock, only 1 left!

0

23

Homelite 310997003

Air Box Cover Base Assembly

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 660347003

Screw (M5 x 45 mm, Torx T25)

$1.49

$

In Stock, only 4 left!

0

Homelite 120900226

High Altitude Kit

Note: Not Shown

$12.99

$

Usually ships in 3-7 days

0
