51988 (090157008) - Toro Powervac Blower Vacuum, Revision 01 (SN: 318000001 - 318999999) (2019-02) Figure C Parts Diagram

Powervac Blower Vacuum, Revision 01

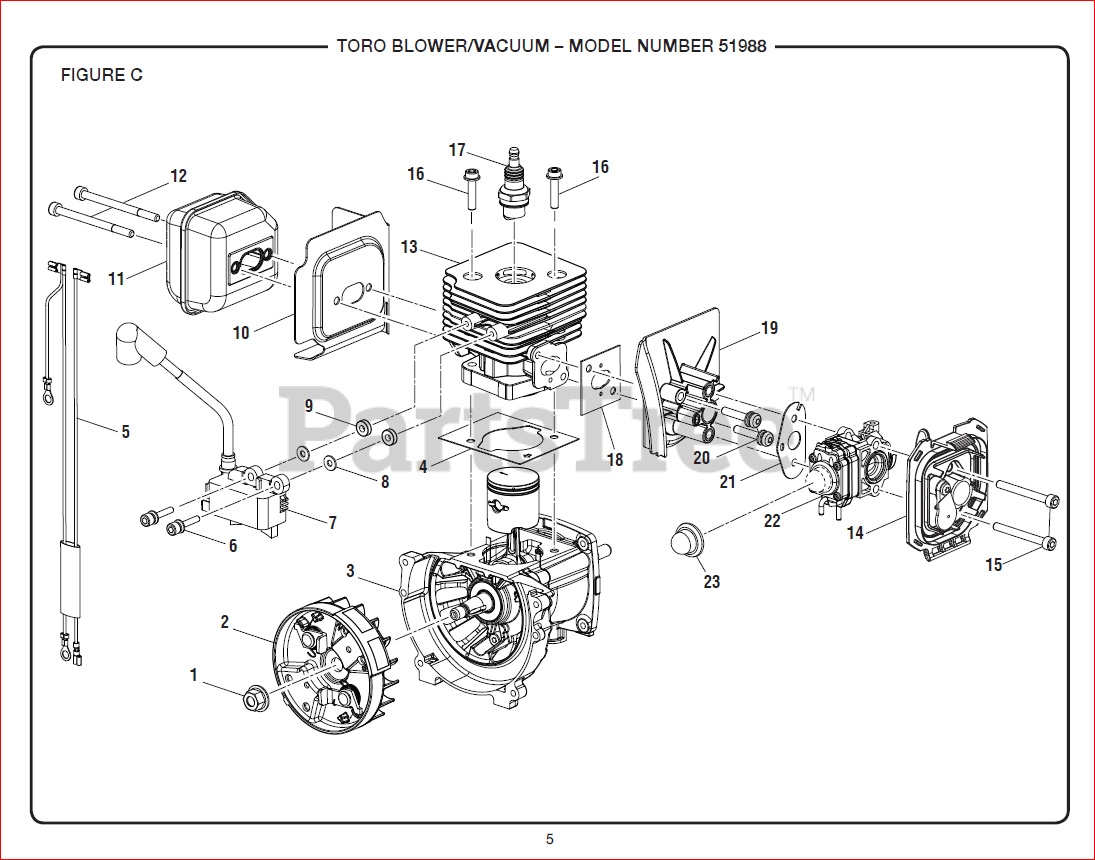

Figure C Parts Diagram

  • Title

1

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

2

Homelite 307201002

Flywheel Assembly

$24.99

$

Usually ships in 3-7 days

0

3

Homelite 307366001

Crankcase and Piston Assembly

$70.99

$

Usually ships in 3-7 days

0

4

Homelite 900709007

Gasket

$2.49

$

In Stock, only 1 left!

0

5

Homelite 291388002

Wire Harness

$5.99

$

Usually ships in 3-7 days

0

6

Homelite 660968004

Screw (M4 x 22 mm, T20 Torx Slotted Recessed Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 290178029

Ignition Module

$59.99

$

Usually ships in 3-7 days

0

8

Homelite 690969001

Flat Washer (OD10 x ID42 x 1t)

$2.49

$

In Stock, only 1 left!

0

9

Homelite 590462001

Phenolic Spacer (Ignition Module)

$3.49

$

In Stock, Qty 5

0

10

Homelite 639243002

Muffler Gasket

$5.49

$

In Stock, only 2 left!

0

11

Homelite 300748042

Muffler Assembly

$165.99

$

Usually ships in 3-7 days

0

12

Homelite 662169001

Cap Screw (M5 x 65 mm, T25 Torx Soc. Hd.)

$2.49

$

In Stock, Qty 6

0

13

Homelite 642368002

Cylinder

$59.99

$

Usually ships in 3-7 days

0

14

Homelite 310997003

Air Box Cover Base Assembly

$1.99

$

In Stock, only 4 left!

0

15

Homelite 660347003

Cap Screw (M5 x 45 mm, T25 Torx Soc. Hd.)

$2.49

$

In Stock, Qty 10

0

16

Homelite 660342001

Screw (M5 x 22 mm, T25 Torx Soc. Hd.)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 870174001

SPARK PLUG CHAMPION - RCJ-6Y

$4.49

$

In Stock, Qty 20+

0

18

Homelite 562927008

Cylinder Gasket

$2.49

$

Usually ships in 3-7 days

0

19

Homelite 528049001

Heat Sink

$9.49

$

Usually ships in 3-7 days

0

20

Homelite T662210002

Screw w/Washers (M5 x 30 mm, T25 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 900711015

Gasket Carb-Heat Dam

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 308480002

Carburetor Assembly

$

$

Not available

23

Homelite 561635002

Purge Bulb

$2.49

$

In Stock, only 2 left!

0

Homelite 120900226

High Altitude Kit

Note: Not Shown

$24.99

$

Usually ships in 3-7 days

0
