51990 A - Toro Brush Cutter (SN: 250000001 - 999999999) Lower Boom / Spool Assembly Parts Diagram

Brush Cutter

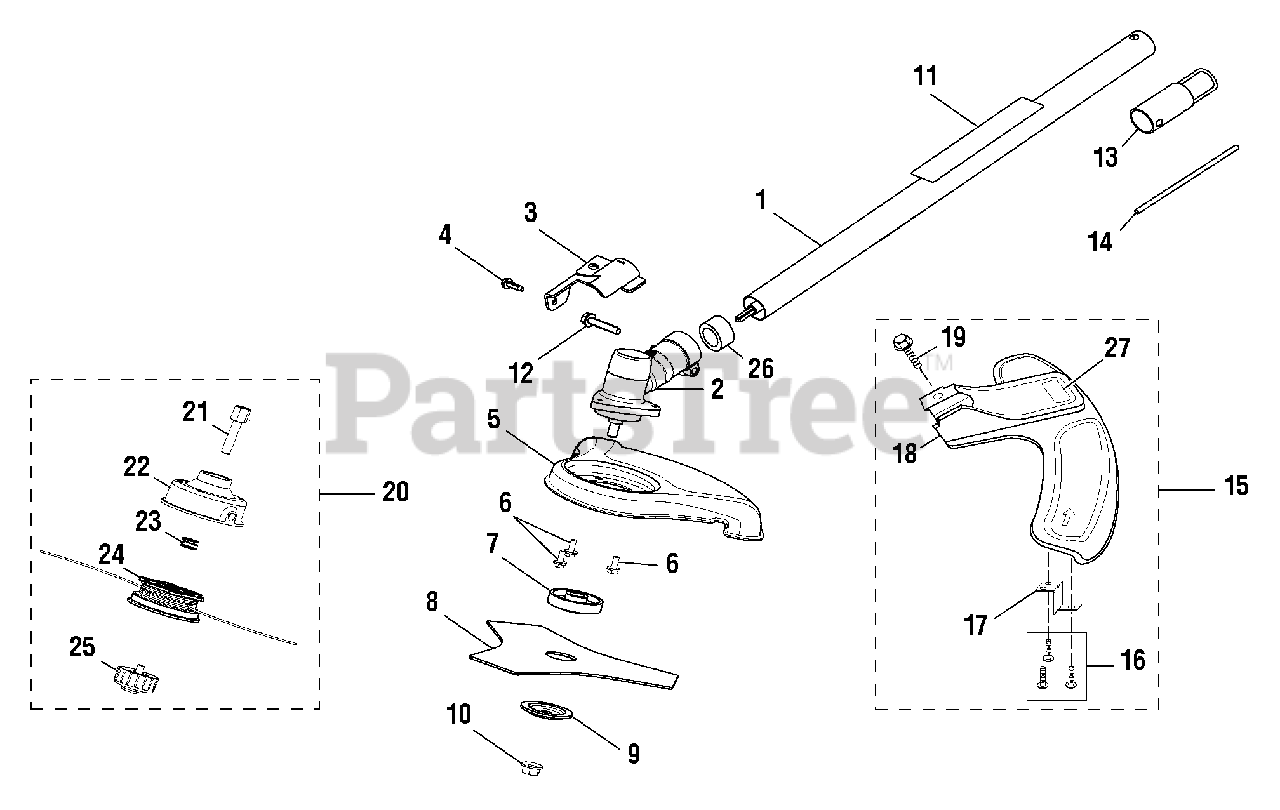

Lower Boom / Spool Assembly Parts Diagram

  • Title

1

Homelite 985572001

STRAIGHT SHAFT ASSEMBLY
(Superseded to 000998233)

$

$

Not available

2

Homelite PA01364

GEAR CASE ASSEMBLY
(Superseded to 308210008)

$

$

Not available

3

Homelite PS04420

GRASS DEFLECTOR CLAMP

$2.99

$

In Stock, only 2 left!

0

4

Homelite 983774003

SCREW (#10-24 X 5/8 in. HEX WASHER HD.)

$1.49

$

In Stock, only 1 left!

0

5

Homelite PS03538

BLADE GUARD
(Superseded to 638120001)

$

$

Not available

6

Homelite 88049

SCREW (#10-24 X 1/2 in. SEMS SLOTTED HEX HD.)

$

$

Not available

7

Homelite 04168A

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 06297

BLADE (TRI-ARC(TM)) .
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 04409

CUPPED WASHER

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 04277

BLADE NUT, LEFT-HANDED THREADS
(Superseded to 678018001)

$

$

Not available

11

Homelite 984102001

WARNING LABEL

$

$

Not available

12

Homelite 983381007

SCREW

$1.49

$

Usually ships in 3-7 days

0

13

Homelite PS02155

HANGER CAP .
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

14

Homelite 00063

HEAD LOCKING TOOL
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

15

Homelite 984443003

GRASS DEFLECTOR ASSEMBLY
(Superseded to 308473004)

$6.99

$

Usually ships in 3-7 days

0

16

Homelite 82543

SCREW

$

$

Not available

17

Homelite PS04379

LINE CUTTING BLADE

$

$

Not available

18

Homelite 984099001

GRASS DEFLECTOR
(Superseded to 308473001)

$

$

Not available

19

Homelite 983379078

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)

$

$

Not available

20

Homelite 983797001

TRIMMER HEAD ASSEMBLY .
(Superseded to 000998265)

$60.99

$

In Stock, only 1 left!

0

21

Homelite PS04438

TRIMMER HEAD SHAFT ADAPTOR
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

22

Homelite A98231A

TRIMMER HEAD
(Superseded to 099068001005)

$

$

Not available

23

Homelite 06713

COMPRESSION SPRING .

$1.49

$

In Stock, only 2 left!

0

24

Homelite 984238001

SPOOL WITH LINE (.095) .
(Superseded to 308044003)

$

$

Not available

25

Homelite A97910A

RETAINING CAP, LEFT-HANDED THREAD .
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 985625001

SPACER .
(Superseded to 518367001)

$1.49

$

In Stock, Qty 5

0

27

Homelite 983649001

GRASS DEFLECTOR LABEL

$1.49

$

Usually ships in 3-7 days

0
