520 (1692317) - Simplicity Walk-Behind Mower MODEL 520 Parts Diagram

Walk-Behind Mower

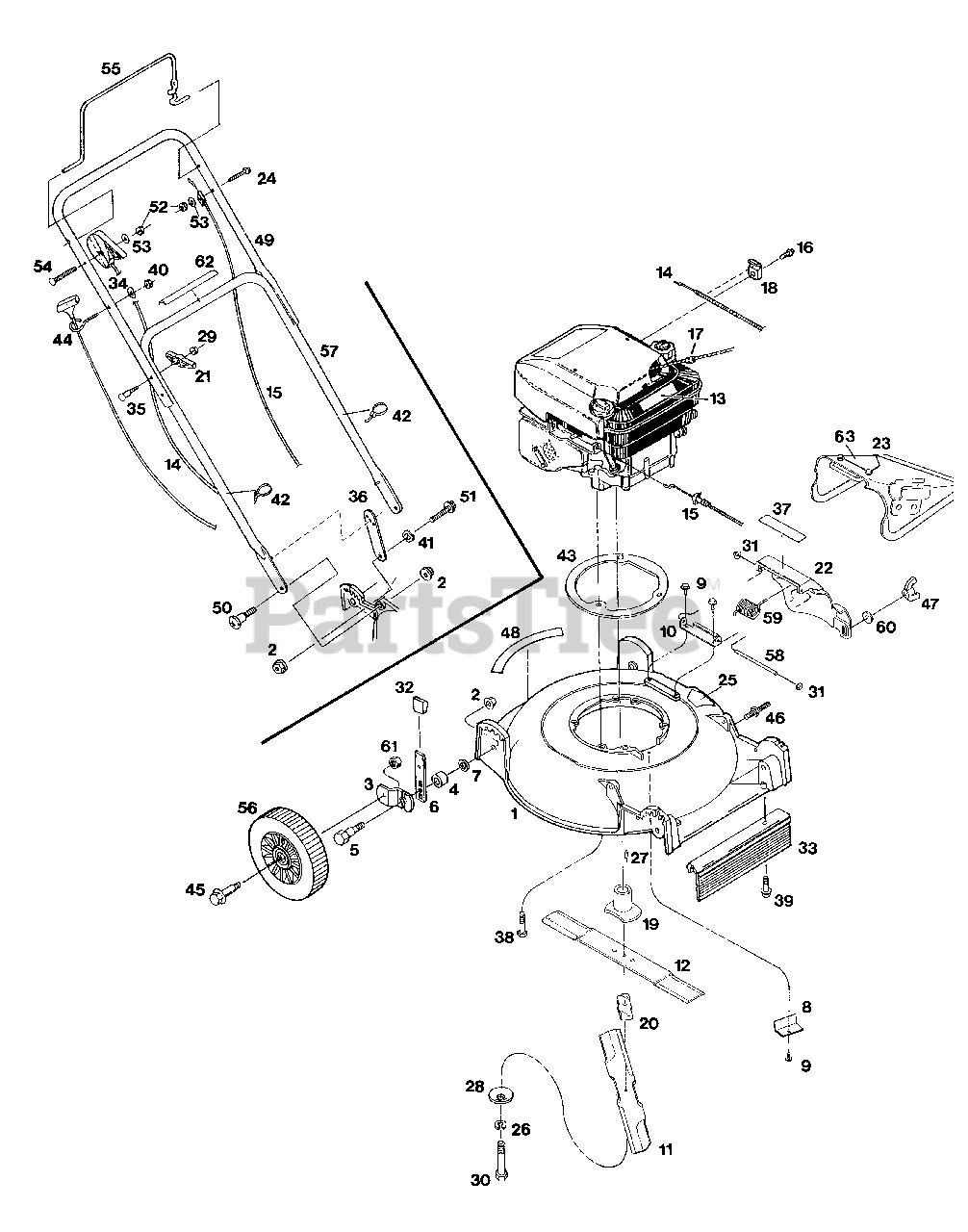

MODEL 520 Parts Diagram

  • Title

1

Simplicity 1713101

Deck-20" orange

$

$

Not available

2

Simplicity 1935048SM

Nut-5/16" flg. Iock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1713102

Wheel arm

$

$

Not available

4

Simplicity 1612225

Spacer-wheel

$

$

Not available

5

Simplicity 1612235

Bolt-height adjuster

$

$

Not available

6

Simplicity 1713103

Setting lever assembly L.H.

$

$

Not available

6

Simplicity 1713104

Setting lever assembly R.H.

$

$

Not available

7

Simplicity 1919326SM

Washer-flat 5/16"

$4.49

$

In Stock, Qty 17

0

8

Simplicity 1706213

Cover-belt

$

$

Not available

9

Simplicity 1925592SM

Screw-1/4-20 x 3/4" hex tap
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 1713105

Bracket-hinge

$

$

Not available

11

Simplicity 1713106SM

Blade-20"

$

$

Not available

12

Simplicity 1713107SM

Blade-recut 20"

$46.99

$

Usually ships in 2-12 days

0

13

Simplicity 1713108

Decal-blade warning

$

$

Not available

14

Simplicity 1713109

Control-throttle w/cable

$

$

Not available

15

Simplicity 1713110

Cable-engine/blade control

$

$

Not available

16

Simplicity 1664068

Screw-#10-16 x 5/8" tap

$

$

Not available

17

Simplicity 1677809

Rope stop

$

$

Not available

18

Simplicity 1713116

Cable clamp

$

$

Not available

19

Simplicity 1713111

Adapter-blade

$

$

Not available

20

Simplicity 1713112

Spacer-blade

$

$

Not available

21

Simplicity 1716632SM

Wing nut-plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1713114

Cover-mulch 20"

$

$

Not available

23

Simplicity 1713115SM

Chute deflector assembly

$

$

Not available

24

Simplicity 1729223SM

Screw-1/4-20 x 1-1/4" truss hd.

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 1704276SM

Decal-CPSC danger

$

$

Not available

26

Simplicity 1916965SM

Washer-3/8" lock H.D.
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

27

Simplicity 2818312SM

Key-woodruff #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1677816

Washer-3/8" conical

$

$

Not available

29

Simplicity 1917372SM

Nut-5/16-18 hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1713117

Bolt-3/8-24 x 3-1/2" HHCS Gr. 8

$

$

Not available

31

Simplicity 1960126SM

Nut-1/4 push-on
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

32

Simplicity 1612215

Plastic tip-height adjuster

$

$

Not available

33

Simplicity 1706215

Trailing shield-plastic

$

$

Not available

34

Simplicity 1677890

Washer-1/4" curved

$

$

Not available

35

Simplicity 1960273SM

Bolt-handle
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

36

Simplicity 1706236

Handle support

$

$

Not available

37

Simplicity 1713118

Decal-mulch cover danger

$

$

Not available

38

Simplicity 1921971SM

Bolt-3/8-16 x 1-3/4" HHCS Gr. 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

39

Simplicity 1925003SM

Screw-1/4-20 x 1/2" hex tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1920397SM

Nut-1/4-20 lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1706237

Washer-5/16" wave

$

$

Not available

42

Simplicity 1612352

Cable tie

$

$

Not available

43

Simplicity 1612410

Engine ring

$

$

Not available

44

Simplicity 1612366

Eyebolt-1/4-20

$

$

Not available

45

Simplicity 1612385

Bolt-wheel

$

$

Not available

46

Simplicity 1612387

Stud-1/4-20 x 3/4"

$

$

Not available

47

Simplicity 2860293SM

Nut-1/4-20 wing

$5.99

$

Usually ships in 2-12 days

0

48

Simplicity 1713119

Decal-logo 20"

$

$

Not available

49

Simplicity 1713120

Handle-upper

$

$

Not available

50

Simplicity 1713121

Bolt-handle mtg.

$

$

Not available

51

Simplicity 1713122

Bolt-handle support

$

$

Not available

52

Simplicity 1916622SM

Nut-1/4-20 hex
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

53

Simplicity 921880

Washer-1/4" star

$

$

Not available

54

Simplicity 1729223SM

Screw-1/4-20 x 1-1/2" truss hd.

$3.49

$

Usually ships in 2-12 days

0

55

Simplicity 1713123

Bail-engine/blade control

$

$

Not available

56

Simplicity 1706203

Wheel-8" push

$

$

Not available

57

Simplicity 1706234

Handle-lower

$

$

Not available

58

Simplicity 1713124

Hinge rod

$

$

Not available

59

Simplicity 1713125

Spring-mulch cover

$

$

Not available

60

Simplicity 1921319SM

Washer-1/4" flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

61

Simplicity 1917421SM

Nut-3/8-16 hex lock
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

62

Simplicity 1713126

Decal-starting instructions

$

$

Not available

63

Simplicity 1713156

Decal-CPSC danger

$

$

Not available
