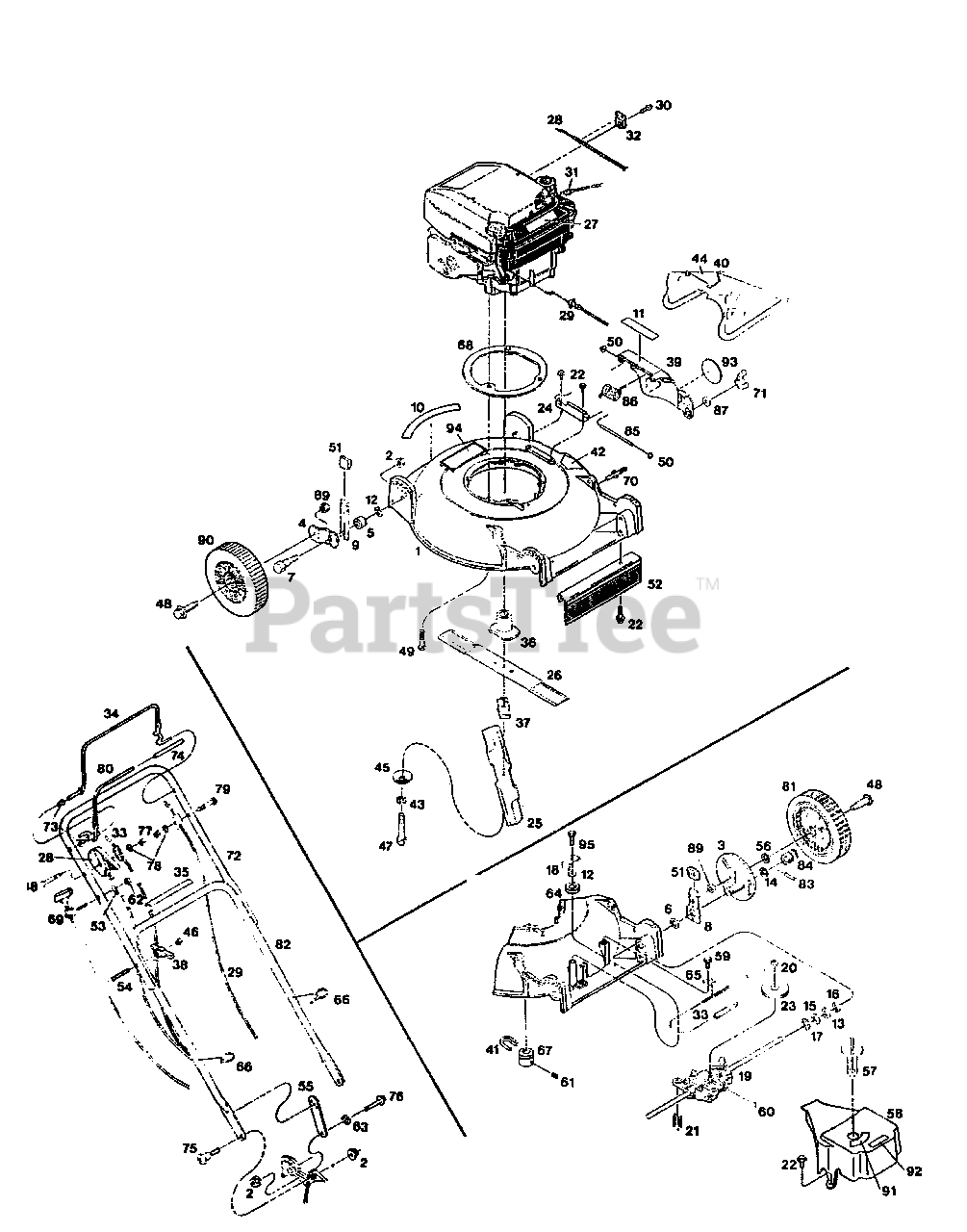

520 (1692318) - Simplicity Walk-Behind Mower MODEL 520SP Parts Diagram

Walk-Behind Mower

MODEL 520SP Parts Diagram

  • Title

1

Simplicity 1713127

Deck-20" orange 3 spd.

$

$

Not available

2

Simplicity 1935048SM

Nut-5/16-18 flg. lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 1713128

Drive wheel support ass'y-blk

$

$

Not available

4

Simplicity 1713102

Wheel arm-blk

$

$

Not available

5

Simplicity 1612225

Spacer-front hgt. adj.

$

$

Not available

6

Simplicity 1612228

Spacer-rear hgt. adj.

$

$

Not available

7

Simplicity 1612235

Bolt-height adjuster

$

$

Not available

8

Simplicity 1713129

Setting lever assy L.H. rear

$

$

Not available

8

Simplicity 1713130

Setting lever assy R.H. rear

$

$

Not available

9

Simplicity 1713104

Setting lever assy. R.H. front

$

$

Not available

9

Simplicity 1713103

Setting lever assy. L.H. front

$

$

Not available

10

Simplicity 1713119

Decal-logo 20"

$

$

Not available

11

Simplicity 1713118

Decal-danger mulch cover

$

$

Not available

12

Simplicity 1919326SM

Washer-5/16" flat

$4.49

$

In Stock, Qty 12

0

13

Simplicity 1612214

Washer-shim

$

$

Not available

14

Simplicity 1612222

Washer-9/16" flat

$

$

Not available

15

Simplicity 2173668SM

Washer-9/16" flat

$9.49

$

In Stock, only 2 left!

0

16

Simplicity 1612286

Washer-9/16" wave

$

$

Not available

17

Simplicity 1612288

E-ring

$

$

Not available

18

Simplicity 1713131

Retainer bracket

$

$

Not available

19

Simplicity 1713132

Transmission-3 spd.

$

$

Not available

20

Simplicity 1713133

Nut-10mm lock

$

$

Not available

21

Simplicity 1713134

Spring-compression

$

$

Not available

22

Simplicity 1925592SM

Screw-1/4-20 x 3/4" hex hd. tap
(Superseded to 703466)

$3.99

$

In Stock, only 2 left!

0

23

Simplicity 1713135

Pulley-transmission

$

$

Not available

24

Simplicity 1713105

Bracket-hinge

$

$

Not available

25

Simplicity 1713106SM

Blade-20"

$

$

Not available

26

Simplicity 1713107SM

Blade-recut 20"

$46.99

$

Usually ships in 2-12 days

0

27

Simplicity 1713108

Decal-blade warning

$

$

Not available

28

Simplicity 1713109

Control-throttle w/cable

$

$

Not available

29

Simplicity 1713110

Cable-engine/blade control

$

$

Not available

30

Simplicity 1664068

Screw-#10-16 x 5/8" tap

$

$

Not available

31

Simplicity 1677809

Rope stop

$

$

Not available

32

Simplicity 1713116

Cable clamp

$

$

Not available

33

Simplicity 1713136SM

Cable-traction control

$

$

Not available

34

Simplicity 1713137

Bail-engine/blade control

$

$

Not available

35

Simplicity 1713126

Decal-starting instructions

$

$

Not available

36

Simplicity 1713551

Adapter-blade

$

$

Not available

36

Simplicity 1713111

Adapter-blade

Note: PRIOR TO SERIAL NO. 1400

$

$

Not available

37

Simplicity 1713112

Spacer-blade

$

$

Not available

38

Simplicity 1716632SM

Wing nut-plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

39

Simplicity 1713114

Cover-mulch 20"

$

$

Not available

40

Simplicity 1713115SM

Chute deflector assembly

$

$

Not available

41

Simplicity 1713138SM

V-belt

$

$

Not available

42

Simplicity 1704276SM

Decal-CPSC danger

$

$

Not available

43

Simplicity 1916965SM

Washer-3/8" lock H.D.
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

44

Simplicity 1713156

Decal-CPSC Danger

$

$

Not available

45

Simplicity 1677816

Washer-3/8" conical

$

$

Not available

46

Simplicity 1917372SM

Nut-5/16-18 hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

47

Simplicity 1713117

Bolt-3/8-24 x 3-1/2" HHCS Gr. 8

$

$

Not available

48

Simplicity 1713139

Bolt-wheel

$

$

Not available

49

Simplicity 1921971SM

Bolt-3/8-16 x 1-3/4" HHCS Gr. 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 8

0

50

Simplicity 1960126SM

Nut-1/4 push-on
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

51

Simplicity 1612215

Plastic tip-height adjuster

$

$

Not available

52

Simplicity 1706215

Trailing shield-plastic

$

$

Not available

53

Simplicity 1677890

Washer

$

$

Not available

54

Simplicity 1960273SM

Bolt-handle
(Superseded to 704421)

$5.49

$

Usually ships in 2-12 days

0

55

Simplicity 1706236

Handle support

$

$

Not available

56

Simplicity 1612242

Washer-3/8" flat

$

$

Not available

57

Simplicity 1713140

Shift knob-plastic

$

$

Not available

58

Simplicity 1713141

Drive cover 3 spd.

$

$

Not available

59

Simplicity 1925003SM

Screw-1/4-20 x 1/2" hex hd. tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

60

Simplicity 1713142

Key-transmission

$

$

Not available

61

Simplicity 1706219

Set screw 1/4-20 x 3/8"

$

$

Not available

62

Simplicity 1920397SM

Nut-1/4-20 lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

63

Simplicity 1706237

Washer-5/16" wave

$

$

Not available

64

Simplicity 1713143

Pulley-1 1/4" dia.

$

$

Not available

65

Simplicity 1612326

Clamp-drive cable

$

$

Not available

66

Simplicity 1612352

Cable tie

$

$

Not available

67

Simplicity 1713552

Drive pulley

$

$

Not available

67

Simplicity 1706218

Drive pulley

Note: PRIOR TO SERIAL NO. 1400

$

$

Not available

68

Simplicity 1612410

Engine ring-red

$

$

Not available

69

Simplicity 1612366

Eyebolt-1/4-20

$

$

Not available

70

Simplicity 1612387

Stud-1/4-20 x 3/4"

$

$

Not available

71

Simplicity 2860293SM

Wing nut-1/4-20 nylon insert

$5.99

$

Usually ships in 2-12 days

0

72

Simplicity 1713120

Handle-upper

$

$

Not available

73

Simplicity 1713144

Bushing-drive bail

$

$

Not available

74

Simplicity 1713145

Sleeve-drive bail

$

$

Not available

75

Simplicity 1713121

Bolt-handle mtg.

$

$

Not available

76

Simplicity 1713122

Bolt-handle supt.

$

$

Not available

77

Simplicity 1916622SM

Nut-1/4-20 hex
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

78

Simplicity 921880

Washer-1/4" star

$

$

Not available

79

Simplicity 1729223SM

Screw-1/4-20 x 1-1/2" truss hd.

$3.49

$

Usually ships in 2-12 days

0

80

Simplicity 1713146

Bail-ground drive control

$

$

Not available

81

Simplicity 1612398

Wheel-8" power propelled

$

$

Not available

82

Simplicity 1706234

Handle-lower

$

$

Not available

83

Simplicity 1713147

Drive pin

$

$

Not available

84

Simplicity 1713148

Pinion R.H. 3 spd.

$

$

Not available

84

Simplicity 1713149

Pinion L.H. 3 spd.

$

$

Not available

85

Simplicity 1713124

Rod hinge

$

$

Not available

86

Simplicity 1713125

Spring-mulch cover

$

$

Not available

87

Simplicity 1921319SM

Washer-1/4" flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 8

0

88

Simplicity 1923282SM

Bolt-1/4-20 x 2-1/2" HHCS
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

89

Simplicity 1917421SM

Nut-3/8-16 jam lock
(Superseded to 703996)

$4.99

$

In Stock, only 3 left!

0

90

Simplicity 1706203

Wheel-8"

$

$

Not available

91

Simplicity 1713150

Decal-3 spd. shift inst.

$

$

Not available

92

Simplicity 1713151

Decal-3 spd. belt cover

$

$

Not available

93

Simplicity 1713152

Decal-3 in 1

$

$

Not available

94

Simplicity 1713153

Decal-convertible mulcher

$

$

Not available

95

Simplicity 1933958SM

Screw-1/4-20 x 1" hex hd. tap

$4.49

$

In Stock, only 2 left!

0
