520 E (1692614) - Simplicity 20" Snow Thrower, 5hp Auger Housing & Chute (S/N 10,001/20,001 and Above) Parts Diagram

20" Snow Thrower, 5hp

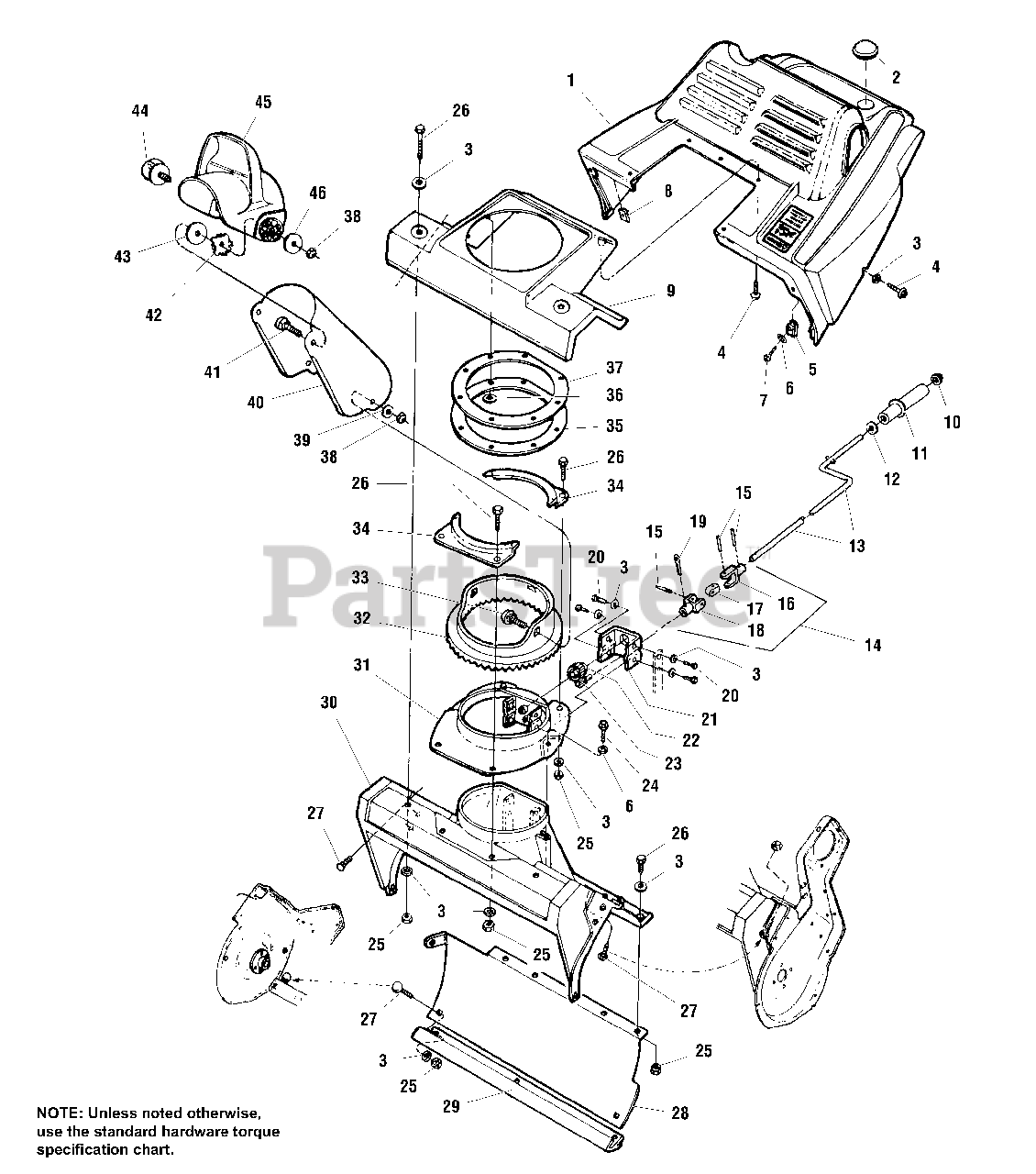

Auger Housing & Chute (S/N 10,001/20,001 and Above) Parts Diagram

  • Title

1

Simplicity 1714580

COVER, Engine

$

$

Not available

2

Simplicity 1716583

PLUG, Snap-in

$

$

Not available

3

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1960001SM

SCREW, Plastite .225 x .75
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1714619

CLIP, #10

$

$

Not available

6

Simplicity 1910531SM

WASHER, Flat #10

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1714617SM

SCREW, Hex, #10-16 x 1-1/2

$

$

Not available

8

Simplicity 1675072

CLIP

$

$

Not available

9

Simplicity 1714517

COWLING, Transition

$

$

Not available

10

Simplicity 1716688

CAP, Push

$

$

Not available

11

Simplicity 1716687

KNOB, Chute Rotating

$

$

Not available

12

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 13

0

13

Simplicity 1714588SM

HANDLE, Chute Rotate

$

$

Not available

14

Simplicity 1716689SM

ASSEMBLY, U-Joint

Note: (Includes Ref. Nos. 15, 16, 17, 18 & 19)

$

$

Not available

15

Simplicity 1926228SM

PIN, Spiral, 5/32 x 1

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716658SM

CLEVIS, Rear U-Joint

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 1686726SM

CONNECTOR, U-joint

$25.99

$

Usually ships in 2-12 days

0

18

Simplicity 1686726SM

CLEVIS, U-Joint

$25.99

$

Usually ships in 2-12 days

0

19

Simplicity 1918452SM

PIN, Cotter, 1/8 Dia.
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 1927429SM

SCREW, Hex, 1/4 - 20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 1714595

BRACKET, Gear

$

$

Not available

22

Simplicity 1716636SM

GEAR, Idler

$9.99

$

In Stock, only 1 left!

0

23

Simplicity 1716635SM

DRIVE, Gear

$11.99

$

In Stock, only 1 left!

0

24

Simplicity 1960001SM

SCREW, Plastite, #12-14 x 1
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1920397SM

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1923341SM

SCREW, Hex, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

27

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, Qty 5

0

28

Simplicity 1714520

SCOOP

$

$

Not available

29

Simplicity 1716606SM

SCRAPER, Bar

$28.99

$

In Stock, Qty 13

0

30

Simplicity 1714572SM

HOUSING, Auger

$119.99

$

Usually ships in 2-12 days

0

31

Simplicity 1714596

PLATE, Chute Base

$

$

Not available

32

Simplicity 1716611SM

BASE, Chute

$20.99

$

Usually ships in 2-12 days

0

33

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1716625SM

RETAINER

$2.99

$

Usually ships in 2-12 days

0

35

Simplicity 1716625SM

RETAINER, Gasket

$2.99

$

Usually ships in 2-12 days

0

36

Simplicity 1934953SM

NUT, Push On

$3.49

$

In Stock, only 1 left!

0

37

Simplicity 1714518

GASKET, Chute

$

$

Not available

38

Simplicity 1919438SM

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

39

Simplicity 1918265SM

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1716612SM

CHUTE, Discharge

Note: (Includes DANGER Decal)

$86.99

$

Usually ships in 2-12 days

0

41

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

42

Simplicity 1716642SM

WASHER, Octagon

$4.99

$

In Stock, only 3 left!

0

43

Simplicity 1716624SM

WASHER, Flat Rubber

$4.49

$

In Stock, Qty 7

0

44

Simplicity 1716686SM

ASSEMBLY, Knob
(Superseded to 1687468YP)

$10.99

$

Usually ships in 2-12 days

0

45

Simplicity 1716631SM

DEFLECTOR, Chute

$

$

Not available

46

Simplicity 1919326SM

WASHER, Flat 5/16

$4.49

$

In Stock, Qty 13

0
