520 E (1693644) - Simplicity 20" Snow Thrower, 5hp Auger Housing & Chute Group - Later Models Parts Diagram

20" Snow Thrower, 5hp

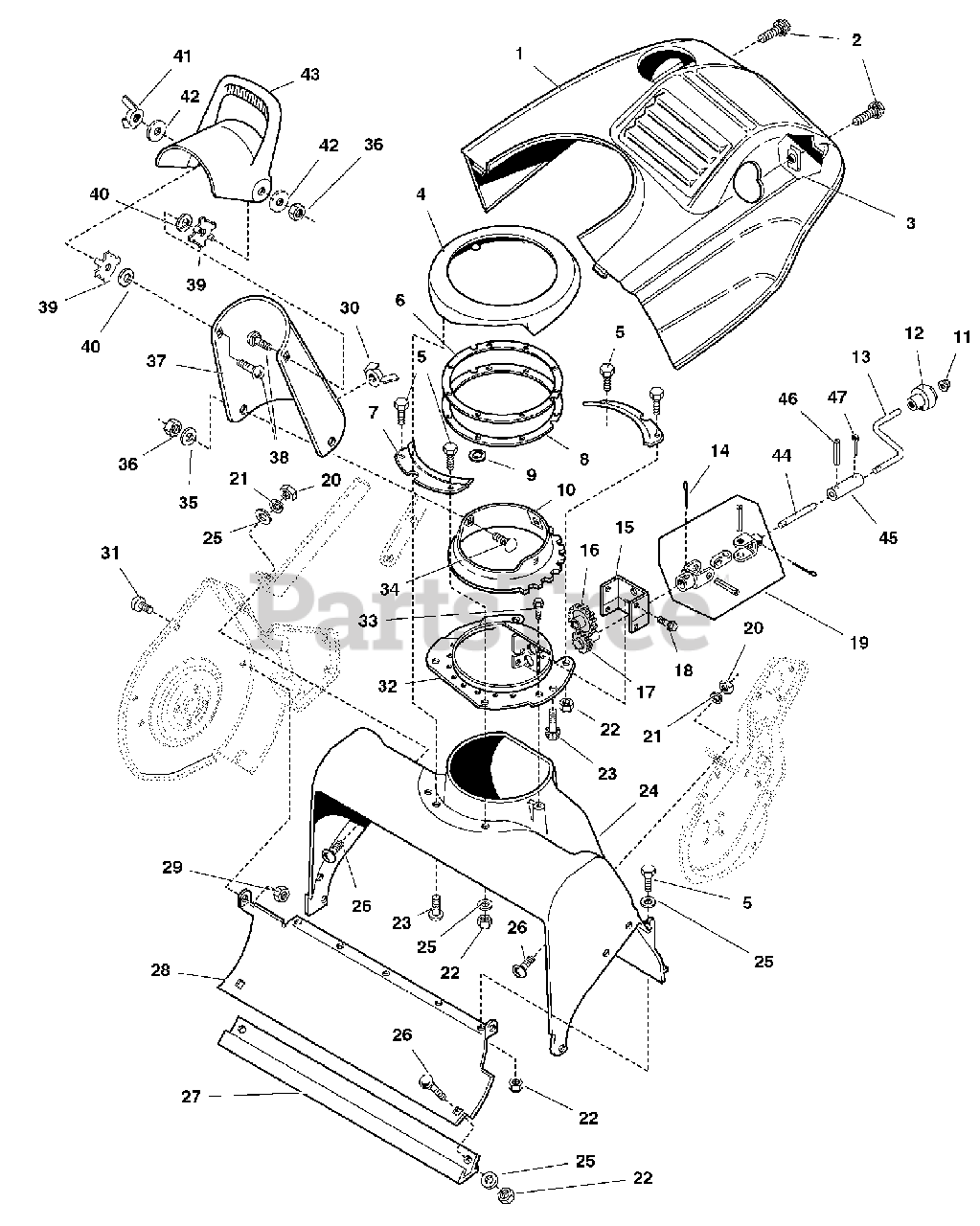

Auger Housing & Chute Group - Later Models Parts Diagram

  • Title

1

Simplicity 7058501SM

HOUSING, Upper Plastic w/Louvers 520 Snow

$162.99

$

Usually ships in 2-12 days

0

2

Simplicity 1928732SM

SCREW, Hex Head, Taptite, #10-24 x 1
(Superseded to 703162)

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 1960593SM

NUT, Retainer, Speed, #10-24 w/Extrusion

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716628SM

COLLAR

$14.99

$

Usually ships in 2-12 days

0

5

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

6

Simplicity 1716640SM

GASKET

$9.49

$

Usually ships in 2-12 days

0

7

Simplicity 1716625SM

RETAINER

$2.99

$

Usually ships in 2-12 days

0

8

Simplicity 1716641SM

RETAINER, Gasket

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960521SM

NUT, Push

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1716611SM

BASE, Chute

$20.99

$

Usually ships in 2-12 days

0

11

Simplicity 1960093SM

NUT, Push, Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 11

0

12

Simplicity 1714084SM

KNOB, Chute, Rotate

$12.99

$

In Stock, Qty 5

0

13

Simplicity 1720578SM

HANDLE, Chute Rotator Upper

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 1923500SM

PIN, Cotter, 1/8 x 1-1/2

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 1716630SM

BRACKET, Gear

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716636SM

GEAR, Idler

$9.99

$

In Stock, only 1 left!

0

17

Simplicity 1716635SM

DRIVE GEAR

$11.99

$

In Stock, only 1 left!

0

18

Simplicity 1927429SM

SCREW, Hex Head Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1716658SM

UNIVERSAL JOINT ASSEMBLY

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 1916622SM

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

21

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 1920397SM

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1960001SM

SCREW, Plastite #10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1716609SM

HOUSING, Auger

$53.99

$

Usually ships in 2-12 days

0

25

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

26

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1716606SM

SCRAPERBAR

$28.99

$

In Stock, Qty 13

0

28

Simplicity 1716596SM

SCOOP

$14.99

$

Usually ships in 2-12 days

0

29

Simplicity 1933896SM

NUT, Hex Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

30

Simplicity 1933126SM

NUT, Wing 5/16-18 Lock

$5.49

$

In Stock, Qty 9

0

31

Simplicity 1960570SM

SCREW, Truss Head Torx, #10-24 x 5/8

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1716610SM

PLATE, Chute Base

$10.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960001SM

SCREW, Plastite, #12-14 x 1.0
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1960282SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 13

0

36

Simplicity 1919438SM

NUT, Hex Lock, ESNA 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 12

0

37

Simplicity 1716612SM

CHUTE

$86.99

$

Usually ships in 2-12 days

0

38

Simplicity 1931335SM

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

39

Simplicity 1716642SM

WASHER, Octagon

$4.99

$

In Stock, only 3 left!

0

40

Simplicity 1716624SM

WASHER, Rubber

$4.49

$

In Stock, Qty 7

0

41

Simplicity 1716632SM

KNOB, Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

42

Simplicity 1920283SM

WASHER, 1-1/2 OD

$4.99

$

In Stock, Qty 6

0

43

Simplicity 1716631SM

DEFLECTOR, Chute

$

$

Not available

44

Simplicity 1720576SM

HANDLE, Chute Rotator Lower, E-Coat

$21.99

$

Usually ships in 2-12 days

0

45

Simplicity 1720577SM

TUBE, Chute Handles 1/2 OD 7.00 Long E-Coat

$17.99

$

Usually ships in 2-12 days

0

46

Simplicity 1926228SM

PIN, Spring 5/32 X 1 SAE 1095

$11.99

$

Usually ships in 2-12 days

0

47

Simplicity 1960074SM

CLIP, Hair Pin .093 DIA Spring Wire 1.625LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+
