520 E (1694586) - Simplicity 20" Snow Thrower, 5hp Auger & Drive Group (178adg) Parts Diagram

20" Snow Thrower, 5hp

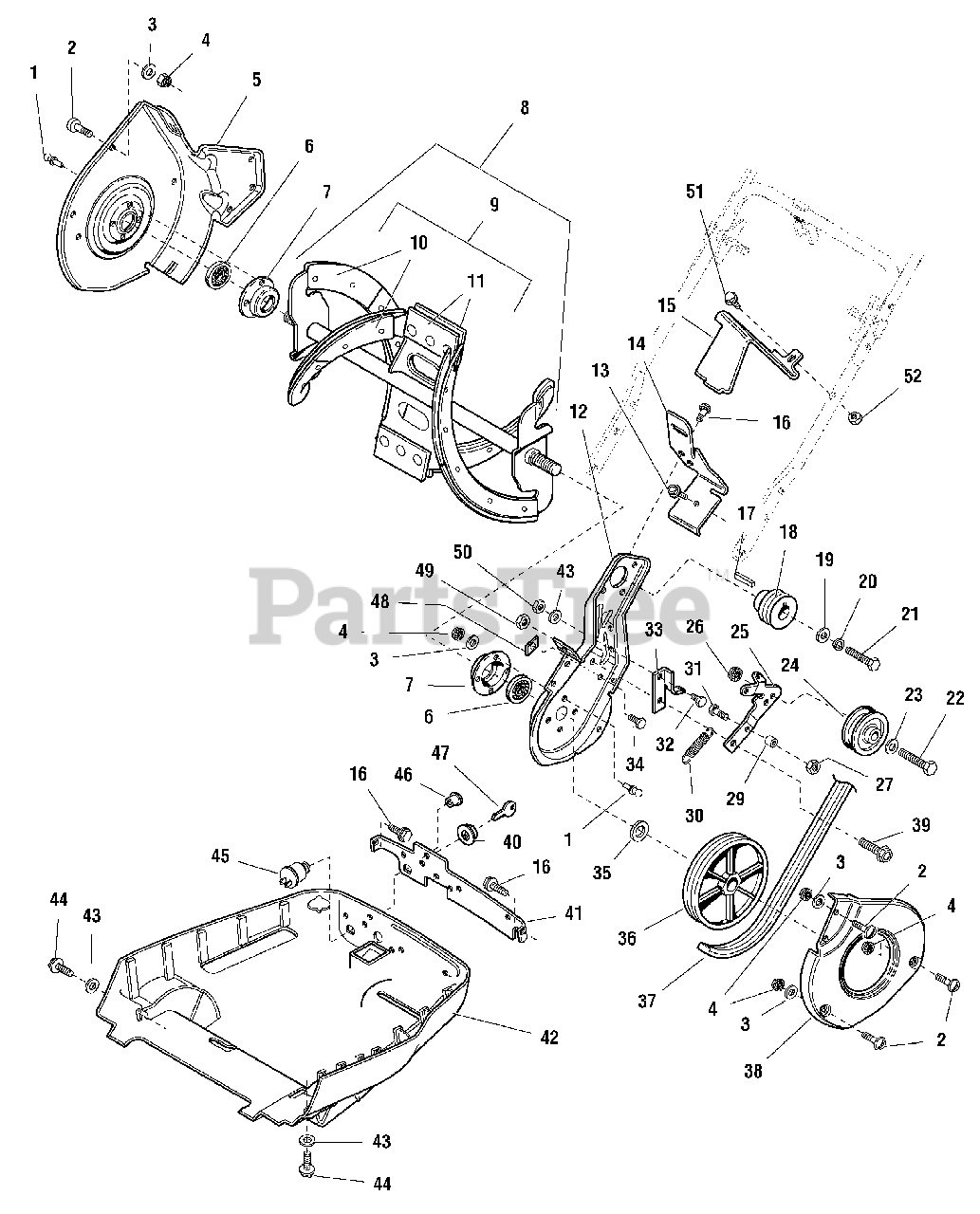

Auger & Drive Group (178adg) Parts Diagram

  • Title

1

Simplicity 1960241SM

RIVET, Pop, 1/4 x 1/2

$5.99

$

Usually ships in 2-12 days

0

2

Simplicity 1960570SM

SCREW, Truss Head, Torx, #10-24

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1910531SM

WASHER, Rivet

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1933896SM

NUT, Hex Lock. ESNA, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0

5

Simplicity 1716595SM

FRAME, Right Side

$

$

Not available

6

Simplicity 1665521SM

BEARING, Auger

$17.99

$

In Stock, only 2 left!

0

7

Simplicity 1716649SM

RETAINER, Bearing

$7.49

$

Usually ships in 2-12 days

0

8

Simplicity 1719612SM

AUGER ASSEMBLY, Complete (Includes Ref. Nos. 9-11)

$444.99

$

Usually ships in 2-12 days

0

9

Simplicity 1686705SM

KIT, Flighting Replacement (Includes Ref. Nos. 10 & 11, plus mounting hardware)

$

$

Not available

10

Simplicity 1718207SM

FLIGHT, Rubber

$32.99

$

In Stock, only 1 left!

0

11

Simplicity 1716661SM

CENTER FLIGHT, Rubber

$9.99

$

In Stock, only 2 left!

0

12

Simplicity 1716590SM

FRAME, Left Side

$

$

Not available

13

Simplicity 1960001SM

SCREW, Plastite, #10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

14

Simplicity 1716619SM

SHIELD, Belt

$

$

Not available

15

Simplicity 1716663SM

AIR DEFLECTOR

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1929477SM

SCREW, Hex Head, #10-24 x 1-1/4
(Superseded to 704060)

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 2805850SM

KEY, Parallel

$

$

Not available

18

Simplicity 1716616SM

PULLEY, Drive

$27.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960141SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 1921982SM

CAPSCREW, Hex Head, 5/16-24 x 1-1/4
(Superseded to 703299)

$5.49

$

Usually ships in 2-12 days

0

22

Simplicity 1921969SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, Qty 10

0

23

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1716615SM

PULLEY, Idler

$23.99

$

In Stock, only 1 left!

0

25

Simplicity 1716618SM

IDLER ARM

$7.49

$

In Stock, only 2 left!

0

26

Simplicity 1931211SM

NUT, Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 13

0

27

Simplicity 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$5.49

$

In Stock, Qty 12

0

29

Simplicity 1716656SM

ROLLER, Belt Stop

$

$

Not available

30

Simplicity 1716653SM

SPRING, Idler Return

$37.99

$

In Stock, only 1 left!

0

31

Simplicity 1921960SM

CAPSCREW, Hex Head, 1/4-20 x 1
(Superseded to 5025010X8SM)

$3.99

$

In Stock, Qty 15

0

32

Simplicity 1924009SM

CAPSCREW, Hex Head, 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

33

Simplicity 1716617SM

BRACKET, Belt

$

$

Not available

34

Simplicity 1927429SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 12

0

35

Simplicity 1716655SM

SPACER, Pulley

$37.99

$

In Stock, only 1 left!

0

36

Simplicity 1716614SM

PULLEY, Driven

$31.99

$

In Stock, only 1 left!

0

37

Simplicity 1716645SM

BELT, Drive

$29.99

$

In Stock, only 4 left!

0

38

Simplicity 1716589SM

GUARD, Belt

$107.99

$

Usually ships in 2-12 days

0

39

Simplicity 1716654SM

IDLER PIVOT BOLT

$5.49

$

In Stock, Qty 11

0

40

Simplicity 1714055SM

FLANGE NUT, Ignition Switch, 5/8-32

$3.99

$

Usually ships in 2-12 days

0

41

Simplicity 1716637SM

CONTROL PANEL

$6.49

$

Usually ships in 2-12 days

0

42

Simplicity 1716627SM

LOWER HOUSING

$132.99

$

Usually ships in 2-12 days

0

43

Simplicity 1921319SM

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1960568SM

SCREW, Hex Head, Taptite, 1/4-20 x 7/8

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1718337SM

SWITCH, Ignition

$

$

Not available

46

Simplicity 1716676SM

SNAP BUSHING, 1/4

$4.49

$

Usually ships in 2-12 days

0

47

Simplicity 1714054SM

KEY, Ignition

$7.99

$

In Stock, Qty 20+

0

48

Simplicity 1960595SM

SPEED NUT, 1/4-20

$2.99

$

Usually ships in 2-12 days

0

49

Simplicity 1919438SM

NUT, Hex Lock, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

50

Simplicity 1920397SM

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

51

Simplicity 2860604SM

SCREW, Hex Head, Taptite, #10-24 x 1/2

$4.99

$

In Stock, Qty 20+

0

52

Simplicity 1933896SM

NUT, Hex Lock, #10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 5

0
