520 R (31A-262-101) - Cub Cadet 20" Snow Thrower (1998) Auger Housing & Chute Parts Diagram

20" Snow Thrower

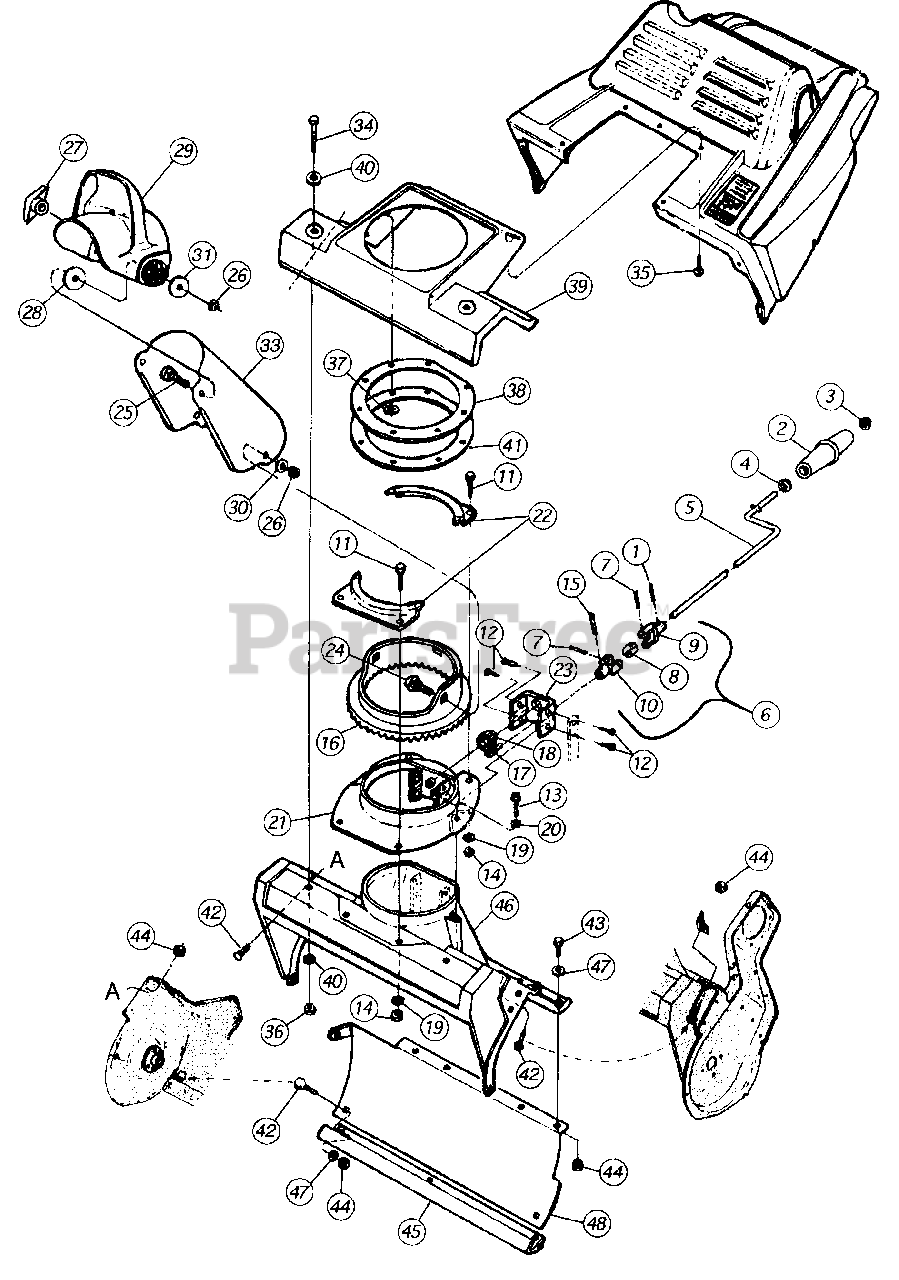

Auger Housing & Chute Parts Diagram

  • Title

1

Cub Cadet 715-0138

Pin, Roll: 1/8 x .63
(Superseded to 915-0138)

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 720-0201A

Chute Rotating Knob

$10.99

$

In Stock, Qty 6

0

3

Cub Cadet 726-0100

Push Cap

$3.99

$

In Stock, Qty 7

0

4

Cub Cadet 736-0400

Flat Washer

$4.99

$

In Stock, Qty 16

0

5

Cub Cadet 747-0959

Chute Crank
(Superseded to 747-0624-0637)

$22.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 631-0045

U-Joint Assembly

$

$

Not available

7

Cub Cadet 715-0164

Pin, Roll: 5/32 x .88

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-1729

Connector, U-Joint

$

$

Not available

9

Cub Cadet 731-1730

Clevis, Rear U-Joint

$

$

Not available

10

Cub Cadet 731-1731

Clevis, Front U-Joint

$

$

Not available

11

Cub Cadet 710-3015

Hex Screw: 1/4-20 x .75 Gr 5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1005

Hex Screw: 1/4 x .50
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1328

Hex Screw

$

$

Not available

14

Cub Cadet 712-0324

Top Lock Nylon Insert

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0470

Cotter Pin: 1/8 dia x 1.25

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-1724

Chute Base: Black

$

$

Not available

17

Cub Cadet 731-1725

Gear, Drive

$

$

Not available

18

Cub Cadet 731-1726

Gear, Idler

$

$

Not available

19

Cub Cadet 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

20

Cub Cadet 736-0400

Flat Washer

$4.99

$

In Stock, Qty 16

0

21

Cub Cadet 784-0353

Plate, Chute Base

$

$

Not available

22

Cub Cadet 784-0366A

Retainer, Chute Base

$

$

Not available

23

Cub Cadet 784-0367

Mounting Bracket

$

$

Not available

24

Cub Cadet 710-0260

Carriage Bolt
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0276

Carriage Screw; 5/16-18 X 1.0

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0429

Hex Lock Nut: 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 720-0284

Knob Assembly

$6.49

$

In Stock, Qty 20+

0

28

Cub Cadet 731-1733

Rubber Washer: .50 X 1.50 X .08

$

$

Not available

29

Cub Cadet 731-1755A

Chute Deflector

$

$

Not available

30

Cub Cadet 736-0275

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0430

Flat Washer

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 784-0364A

Lower Chute

Variations

Cub Cadet 784-0364A-0637

LOWER CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 710-3015

Hex Screw: 1/4-20 X .75 Gr 5

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 710-1003

Tap Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

36

Cub Cadet 712-0271

Sems Nut: 1/4-20

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 726-0343

Nut, Push On

$

$

Not available

38

Cub Cadet 731-1759

Chute Gasket

$

$

Not available

39

Cub Cadet 731-1760

Chute Base Cover

$

$

Not available

40

Cub Cadet 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

41

Cub Cadet 784-0365

Retainer, Gasket

$

$

Not available

42

Cub Cadet 710-0703

Carriage Bolt: 1/4-20 X .75

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0896

Hex Screw: 1/4-14 x .60

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0324

Top Lock Nylon Insert

$3.49

$

In Stock, Qty 20+

0

45

Cub Cadet 731-1921

Shave Plate

$

$

Not available

46

Cub Cadet 731-1763

Auger Housing

$

$

Not available

47

Cub Cadet 736-0463

Flat Washer

$4.49

$

In Stock, only 2 left!

0

48

Cub Cadet 784-0354A

Lower Auger Housing

Variations

Cub Cadet 784-0354A-0637

HOUSING AUGER-LOWE(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-0354A-0498

HOUSING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-0354A-0662

HOUSING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-0354A-0665

HOUSING AUGER-LOWE(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$
