5200 - Poulan Chainsaw EXTERNAL POWER UNIT Parts Diagram

Chainsaw

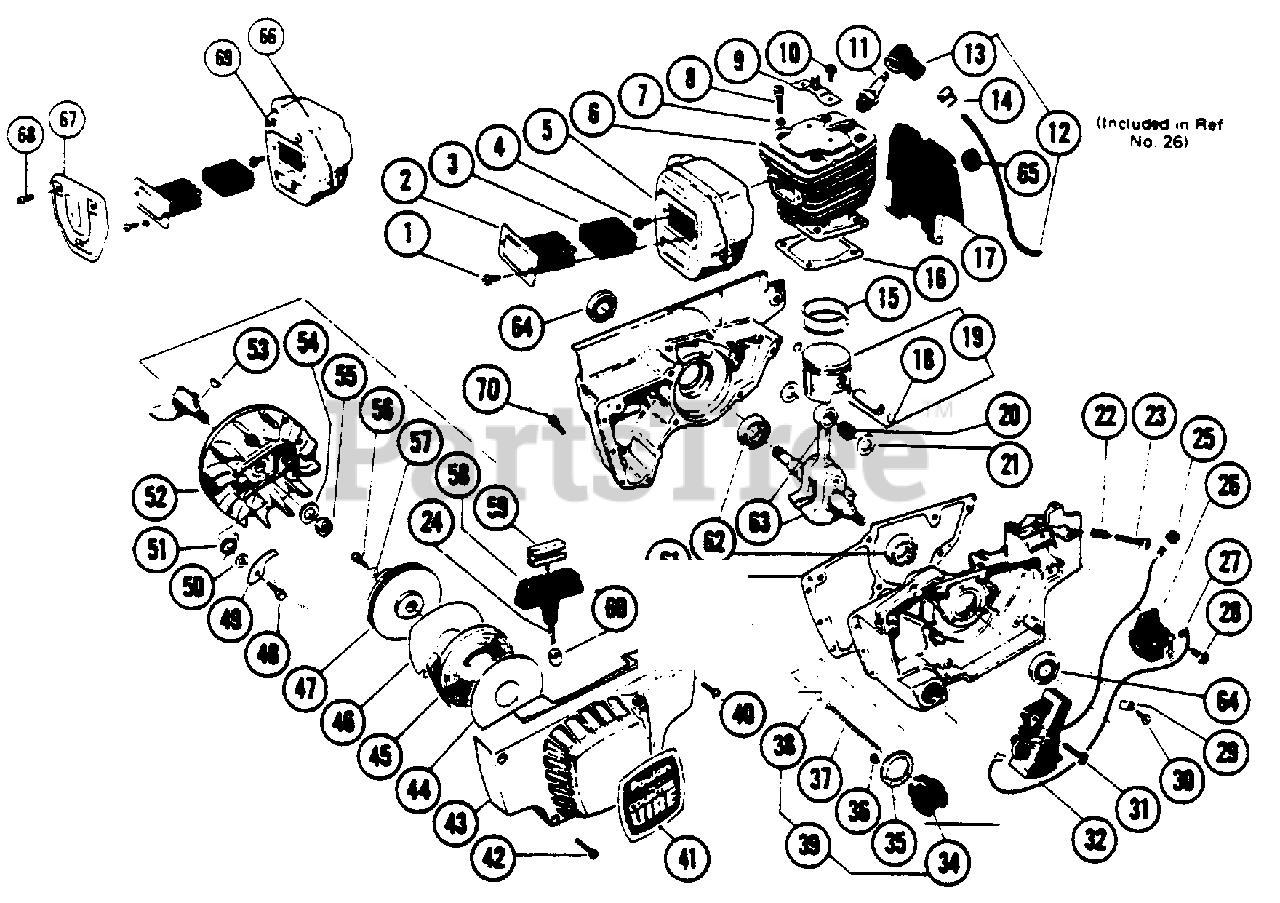

EXTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530001644

Screws - 10-32 x 1/2

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530022131

Diffuser - Muffler

$18.99

$

Usually ships in 3-10 days

0

3

Poulan 530023674

Screen - Spark Arrestor

$18.99

$

Usually ships in 3-10 days

0

4

Poulan 530015298

Screw - Muffler (12-24 x 5/8)

$2.49

$

Usually ships in 3-10 days

0

5

Poulan 530022181

Body - Muffler

$

$

Not available

6

Poulan 530011258

Cylinder - 4200

$

$

Not available

6

Poulan 530011259

Cylinder - 5200

$

$

Not available

7

Poulan 530001677

Lockwasher - Cylinder

$

$

Not available

8

Poulan 530001711

Screw - 1/4-20 x 1 Socket Head

$1.99

$

In Stock, only 1 left!

0

9

Poulan 530023718

Bracket - Cylinder Cover

$

$

Not available

10

Poulan 530015306

Screw - Cylinder Cover Bracket

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 952030084

Spark Plug 4200 & 5200
(Superseded to 952030249)

$4.99

$

In Stock, Qty 20+

0

12

Poulan 530039065

Wire Ass'y. - Ignition (includes 13 & 14)

$

$

Not available

13

Poulan 530003933

Boot - Spark Plug
(Superseded to 507475326)

$

$

Not available

14

Poulan 530003934

Connector - Spark Plug

$

$

Not available

15

Poulan 530023655

Piston Ring 4200

$

$

Not available

15

Poulan 530023645

Piston Ring 5200

$

$

Not available

16

Poulan 530019081

Gasket - Cylinder Included in Gasket Kit 69025

$

$

Not available

17

Poulan 530022128

Baffle - Air

$

$

Not available

18

Poulan 530015207

Retainer - Piston Pin

$

$

Not available

19

Poulan 530022125

Piston Ass'y. 4200 (includes 18)

$60.99

$

In Stock, only 1 left!

0

19

Poulan 530022126

Piston Ass'y. 5200 (includes 18)

$

$

Not available

20

Poulan 530032031

Bearing - Piston Pin

$

$

Not available

21

Poulan 530015208

Washer - Thrust

$

$

Not available

22

Poulan 530023716

Spring - Idle Speed Screw

$

$

Not available

23

Poulan 530015202

Screw - Idle Speed

$

$

Not available

24

Poulan 530042043

Rope - Starter

Note: (45" Long; Cut from No. 8122, 100 ft. Roll or No. 8123, 1000 ft. Roll)

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 530039069

Grommet - Lead Wire (included in 32) Included in Gasket Kit 69025

$

$

Not available

26

Poulan 530039068

Transformer Ass'y. (includes 12)

$

$

Not available

27

Poulan 530039064

Lead Wire - Module to Transformer (included in 32)

$

$

Not available

28

Poulan 530015038

Screw - 10 24 x 3/4

$

$

Not available

29

Poulan 530023661

Clamp - Lead Wire

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530001726

Screw - 8-32 x 5/16 Tapping

$

$

Not available

31

Poulan 530015198

Screw - 10-24 x 7/8

$

$

Not available

32

Poulan 530039067

Module - Ignition (includes 27 & 28)

$

$

Not available

34

Poulan 530023647

Oil Cap

$

$

Not available

35

Poulan 530019078

Gasket - Oil Cap Included in Gasket Kit 69025

$

$

Not available

36

Poulan 530625712

Screw - 8-32 x 3/8 5200 Only

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 530023653

Chain - Oil Cap 5200 Only

$

$

Not available

38

Poulan 530023656

Retainer - Oil Cap Chain 5200 Only

$

$

Not available

39

Poulan 530010175

Oil Cap Ass'y. 5200 Only (includes 34, 35, 36, 37 & 38)

$

$

Not available

40

Poulan 530015074

Screw - 10-24 x 3/4 Oval Head

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530023719

Decal - Fan Housing 4200

$

$

Not available

41

Poulan 530023722

Decal - Fan Housing 5200

$

$

Not available

42

Poulan 530015201

Screw - 10-24 x 1 3/4 Oval Head

$2.49

$

Usually ships in 3-10 days

0

43

Poulan 530069081

Fan Housing Ass'y. (includes 60)

$

$

Not available

44

Poulan 530042039

Disc - Starter (Under Spring)

$

$

Not available

45

Poulan 530042037

Spring - Starter Rewind

$

$

Not available

46

Poulan 530042041

Disc - Starter (Over Spring)

$

$

Not available

47

Poulan 530011255

Pulley - Starter

$

$

Not available

48

Poulan 530004261

Stud - Starter Dog

$

$

Not available

49

Poulan 530042064

Dog - Starter

$

$

Not available

50

Poulan 530001718

Washer - Starter Dog

$

$

Not available

51

Poulan 530042042

Spring - Starter Dog

$

$

Not available

52

Poulan 530039066

Flywheel

$

$

Not available

53

Poulan 530002595

Key - Flywheel

$4.99

$

In Stock, Qty 7

0

54

Poulan 530001626

Washer - 3/8

$

$

Not available

55

Poulan 530001722

Nut - Flywheel Mounting

$4.99

$

In Stock, only 4 left!

0

56

Poulan 530015092

Screw - 1/4-20 x 1/2 Socket Head

$2.49

$

Usually ships in 3-10 days

0

57

Poulan 530015209

Washer - Starter Pulley

$2.49

$

Usually ships in 3-10 days

0

58

Poulan 530042044

Handle - Starter Rope

$

$

Not available

59

Poulan 530004268

Anchor - Rope

$

$

Not available

60

Poulan 530002820

Bushing - Rope Grommet (included in 43)

$

$

Not available

61

Poulan 530019085

Gasket - Crankcase Included in Gasket Kit 69025

$

$

Not available

62

Poulan 530032034

Bearing - Crankshaft

$

$

Not available

63

Poulan 530022113

Crankshaft & Connecting Rod

$

$

Not available

64

Poulan 530019075

Seal - Crankshaft

$9.99

$

Usually ships in 3-10 days

0

65

Poulan 530023816

Grommet-High Tension Lead Included in Gasket Kit 69025

$

$

Not available

66

Poulan 530010257

Hexfastener & Muffler Ass'y. (opt.)

$

$

Not available

67

Poulan 530023995

Heat Shield (opt.)

$

$

Not available

68

Poulan 530001636

Hex Socket Cap Screw 1/4-20 x 5/8 (opt.)

$2.49

$

Usually ships in 3-10 days

0

69

Poulan 530015159

Washer-Conical (opt.)

$

$

Not available

70

Poulan 530015258

Screws #8 x 1/2 Socket Head

$1.49

$

Usually ships in 3-10 days

0
