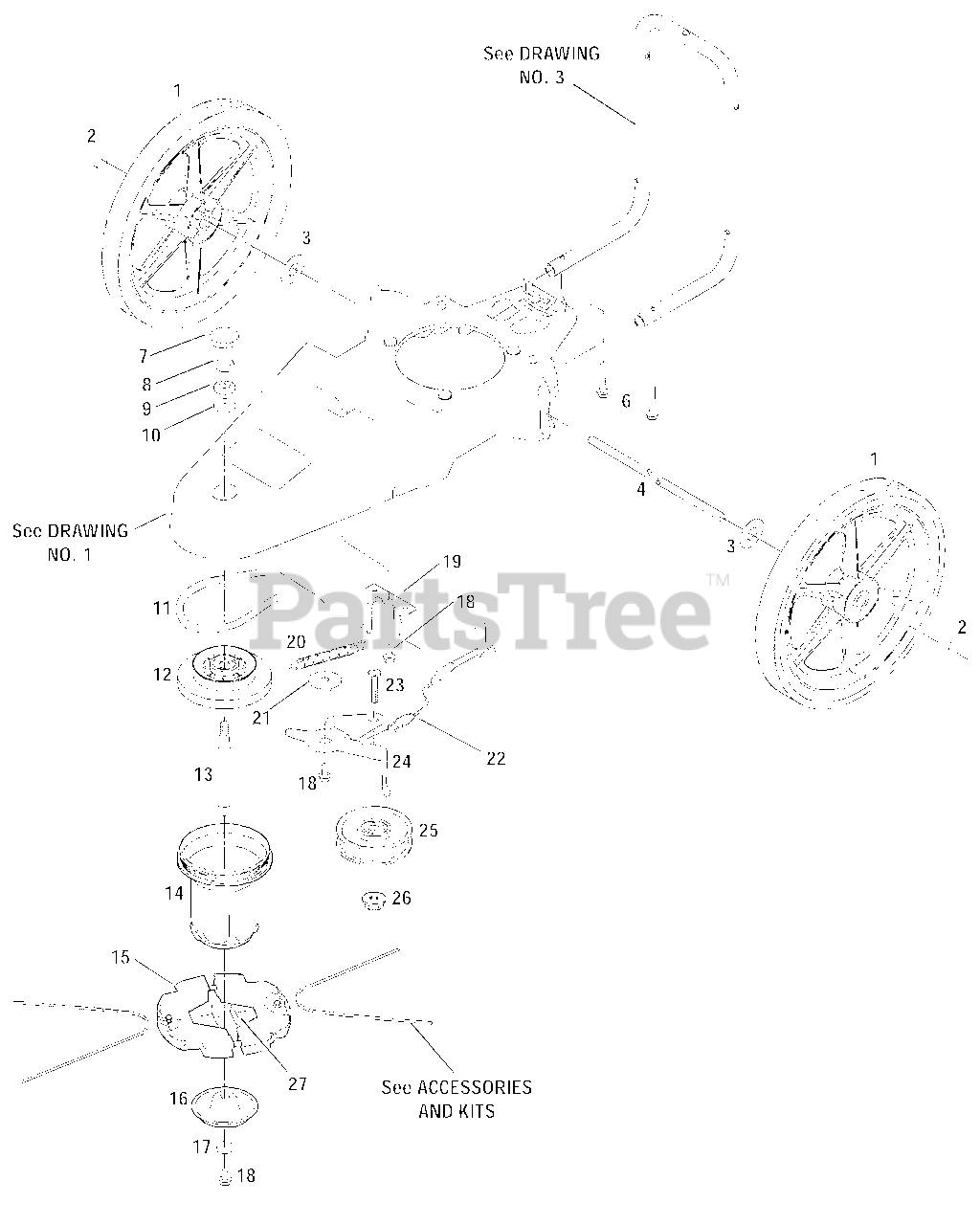

52064 - Troy-Bilt Walk-Behind Trimmer (2000) Drive Parts Diagram

Walk-Behind Trimmer

Drive Parts Diagram

  • Title

1

MTD 1917778

Wheel/Tire Assembly

$

$

Not available

2

Troy-Bilt 1917593

Locking Retaining Ring
(Superseded to 726-0221)

$6.49

$

In Stock, Qty 10

0

3

Troy-Bilt 1917775

Flat Washer

$

$

Not available

4

MTD 1917258

Axle

$

$

Not available

6

MTD 1918069

Self-Tap Screw, 5/16-18 x 2

$

$

Not available

7

MTD 1917588

Cap Plug

$

$

Not available

8

Troy-Bilt 1734514

Hex Lock Nut, 1/2-13
(Superseded to 712-3022)

$4.49

$

In Stock, Qty 13

0

9

Troy-Bilt 9928

Belleville Washer
(Superseded to GW-9928)

$13.99

$

Usually ships in 3-6 days

0

10

MTD 1917745

Hardened Washer

$

$

Not available

11

Troy-Bilt 1917579

V-Belt 52.88 Lg x .500

$30.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 1918246

Spindle Head Adapter

Note: (Incl. Bearing)

$141.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1917581

Spindle Shaft

$

$

Not available

14

MTD 1918329

Spindle Head Assembly

Note: (Incl. Bearing, Insert, and Refs. 16, 17, 18)

$

$

Not available

15

Troy-Bilt 1918393

Trimmer Head Assembly
(Superseded to 1918879)

Note: (Incl. Ref. 27)

$

$

Not available

16

MTD 1915220001

Wear Cup

$

$

Not available

17

Troy-Bilt 1917599

Square Washer

$30.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1724491

Self-Tap Screw, 5/16-18 x 3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

19

MTD 1917573

Cable Bracket

$

$

Not available

20

Troy-Bilt 1910849

Idler Spring

$

$

Not available

21

Troy-Bilt 1917746

Flat Washer
(Superseded to 748-04087A)

$6.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1917589

Control Cable - Trimmer Head
(Superseded to 1917589P)

$83.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1910857

Button Hd. Screw, 3/8-16 x 1-1/2

$

$

Currently unavailable

24

Troy-Bilt 1917572

Idler Arm

$

$

Not available

25

MTD 1910855

Idler Pulley

$

$

Not available

26

Troy-Bilt 1186393

Flange Lock Nut, 3/8-16

$3.49

$

In Stock, only 1 left!

0

27

MTD 1918332

Rubber Shim Kit

Note: (2 shims per kit)

$

$

Not available
