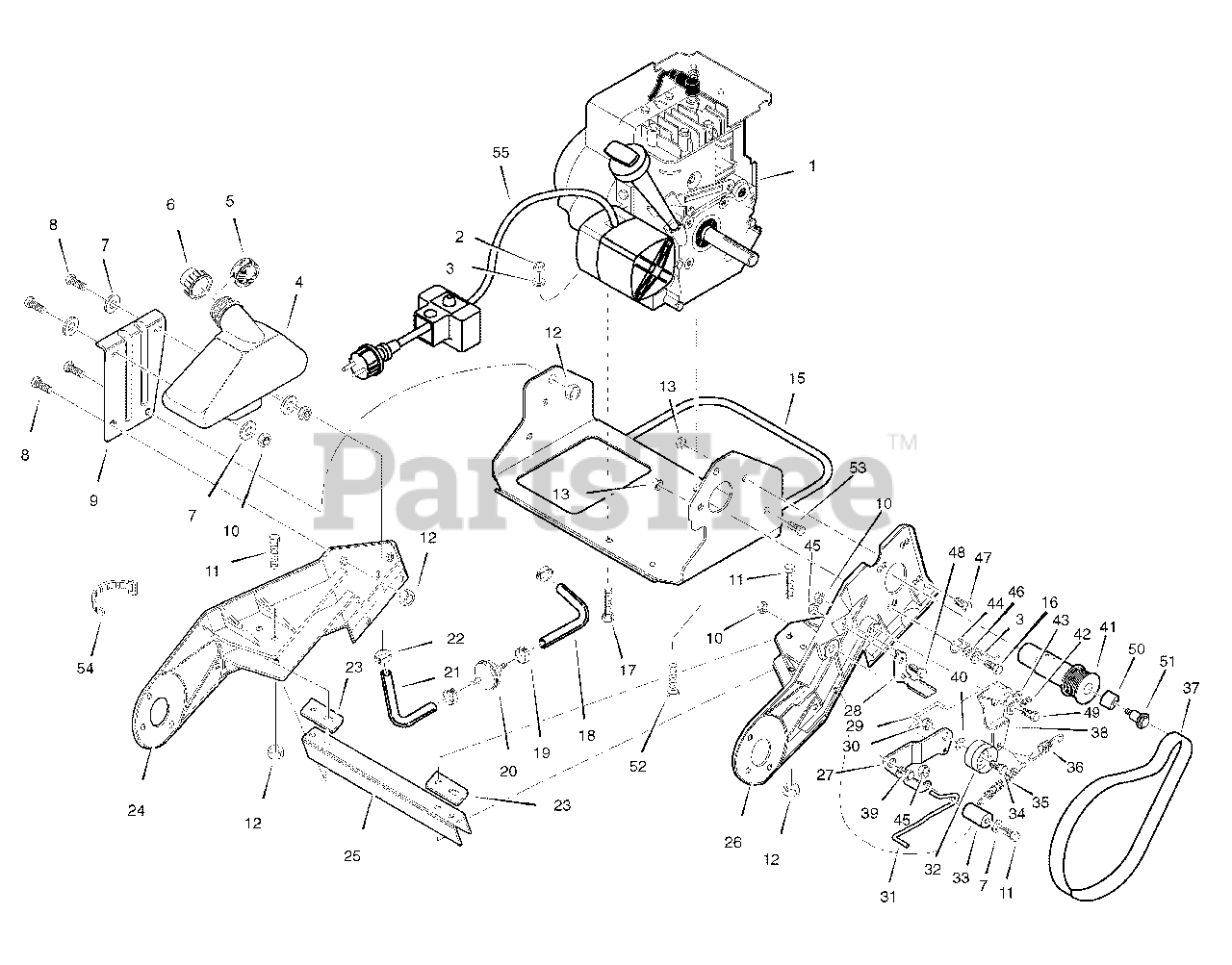

521 E (1695701) - Simplicity 21" Snow Thrower, 5.25hp Engine & Frame Group Parts Diagram

21" Snow Thrower, 5.25hp

Engine & Frame Group Parts Diagram

  • Title

1

Simplicity 09A413-0202-E1

* ENGINE, 5.25TP, Briggs & Stratton

Note: (Engine Model: 09A413-0202-E1)

$

$

Not available

2

Simplicity 71037MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 71060MA

WASHER, Split Lock, 5/16 x 37/64
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 333739MA

TANK, Fuel 1.5QT

$120.99

$

Usually ships in 2-12 days

0

5

Simplicity 762224MA

RING, Foam, Fuel Tank

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 1501726MA

CAP, Fuel
(Superseded to 692046)

$5.49

$

In Stock, Qty 7

0

7

Simplicity 71067MA

WASHER, Flat, 9/32 x 5/8 OD

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 302628MA

CAPSCREW, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 6

0

9

Simplicity 333749E701MA

BRACKET, Fuel Tank

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 271163MA

NUT, Hex, 8-32

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 180044MA

CAPSCREW, Hex Head, 1/4-20 x 2

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 71034MA

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

13

Simplicity 71391MA

NUT, Hex, Control Lock, 5/16-18

$4.49

$

In Stock, only 1 left!

0

15

Simplicity 1501744E701MA

CRADLE ASSEMBLY

$165.99

$

Usually ships in 2-12 days

0

16

Simplicity 180077MA

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

17

Simplicity 001X81MA

CAPSCREW, Engine Mount

$3.49

$

In Stock, only 2 left!

0

18

Simplicity 791893

HOSE, Fuel, 12"

Note: (CUT TO 6 INCH LENGTH)

$21.99

$

Usually ships in 2-12 days

0

19

Simplicity 323387MA

CLAMP, Fuel Line

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 298090S

FILTER, Fuel

$

$

Not available

21

Simplicity 791893

HOSE, Fuel, 12"

Note: (CUT TO 8 INCH LENGTH)

$21.99

$

Usually ships in 2-12 days

0

22

Simplicity 47345MA

CLAMP, Hose Screw

$9.49

$

Usually ships in 2-12 days

0

23

Simplicity 335351MA

PLATE, Bolting Support

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 1501871E701MA

FRAME, R.H.
(Superseded to 1741988AYP)

$100.99

$

Usually ships in 2-12 days

0

25

Simplicity 333987MA

CHANNEL, Frame Support

$23.99

$

Usually ships in 2-12 days

0

26

Simplicity 1501872E701MA

FRAME, L.H.

$

$

Not available

27

Simplicity 1741727YP

BRACKET, Idler Arm

$10.99

$

Usually ships in 2-12 days

0

28

Simplicity 333970MA

BRAKE PAD

$5.49

$

Usually ships in 2-12 days

0

29

Simplicity 313436MA

ROD, Clutch Linkage

$5.49

$

Usually ships in 2-12 days

0

30

Simplicity 590MA

NUT, Control Lock, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

31

Simplicity 1501009MA

WIRE, Brake

$9.99

$

In Stock, only 1 left!

0

32

Simplicity 48924MA

PULLEY, Idler

$31.99

$

Usually ships in 2-12 days

0

33

Simplicity 1501010MA

ROLLER, Pinch

$6.49

$

Usually ships in 2-12 days

0

34

Simplicity 302637MA

SCREW, 3/8-16 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

35

Simplicity 313473MA

SPRING, Extension, 3/8 OD x 2-1/2

$6.49

$

In Stock, only 1 left!

0

36

Simplicity 313471MA

SPRING, Extension, 3/4 OD x 2

$4.99

$

In Stock, only 1 left!

0

37

Simplicity 333721MA

BELT, Drive, 35-9/64"

$

$

Not available

38

Simplicity 313444MA

ARM, Idler Pivot

$

$

Not available

39

Simplicity 333594MA

BOLT, Shoulder, 5/16-18 x 1/2

$20.99

$

In Stock, only 2 left!

0

40

Simplicity 301188MA

WASHER, Flat

$2.99

$

Usually ships in 2-12 days

0

41

Simplicity 1501908MA

PULLEY, Engine

$28.99

$

Usually ships in 2-12 days

0

42

Simplicity 121223MA

PIN, Cotter

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 414106MA

WASHER, Flat #8

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 334079MA

GUIDE, Belt

$7.99

$

Usually ships in 2-12 days

0

45

Simplicity 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

46

Simplicity 71071MA

WASHER, 11/32 x 11/16 OD
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

47

Simplicity 48901MA

SCREW 5/16-18 x 5/8

$3.99

$

Usually ships in 2-12 days

0

48

Simplicity 579052MA

CAPSCREW, Hex Head, 1/4-20 x 5/8

$9.99

$

In Stock, only 1 left!

0

49

Simplicity 311633MA

CAPSCREW, Hex Head, 8-32 x 3

$3.99

$

Usually ships in 2-12 days

0

50

Simplicity 1740037MA

SPACER, Drive Pulley

$7.99

$

Usually ships in 2-12 days

0

51

Simplicity 1501907MA

CAPSCREW, Engine Pulley

$9.99

$

Usually ships in 2-12 days

0

52

Simplicity 1X216MA

CAPSCREW, Hex Head, 5/16-18 x 7/8

$3.99

$

Usually ships in 2-12 days

0

53

Simplicity 310169MA

SCREW 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

54

Simplicity 57444MA

TIE, Cable

$3.49

$

Usually ships in 2-12 days

0

55

Simplicity 6219MA

CORD, Electric, 10FT. 220V

$40.99

$

In Stock, only 3 left!

0
