521 SSE (621502x37NA) - Husqvarna 21" Snow Blower (2006-11) Engine Group Parts Diagram

21" Snow Blower

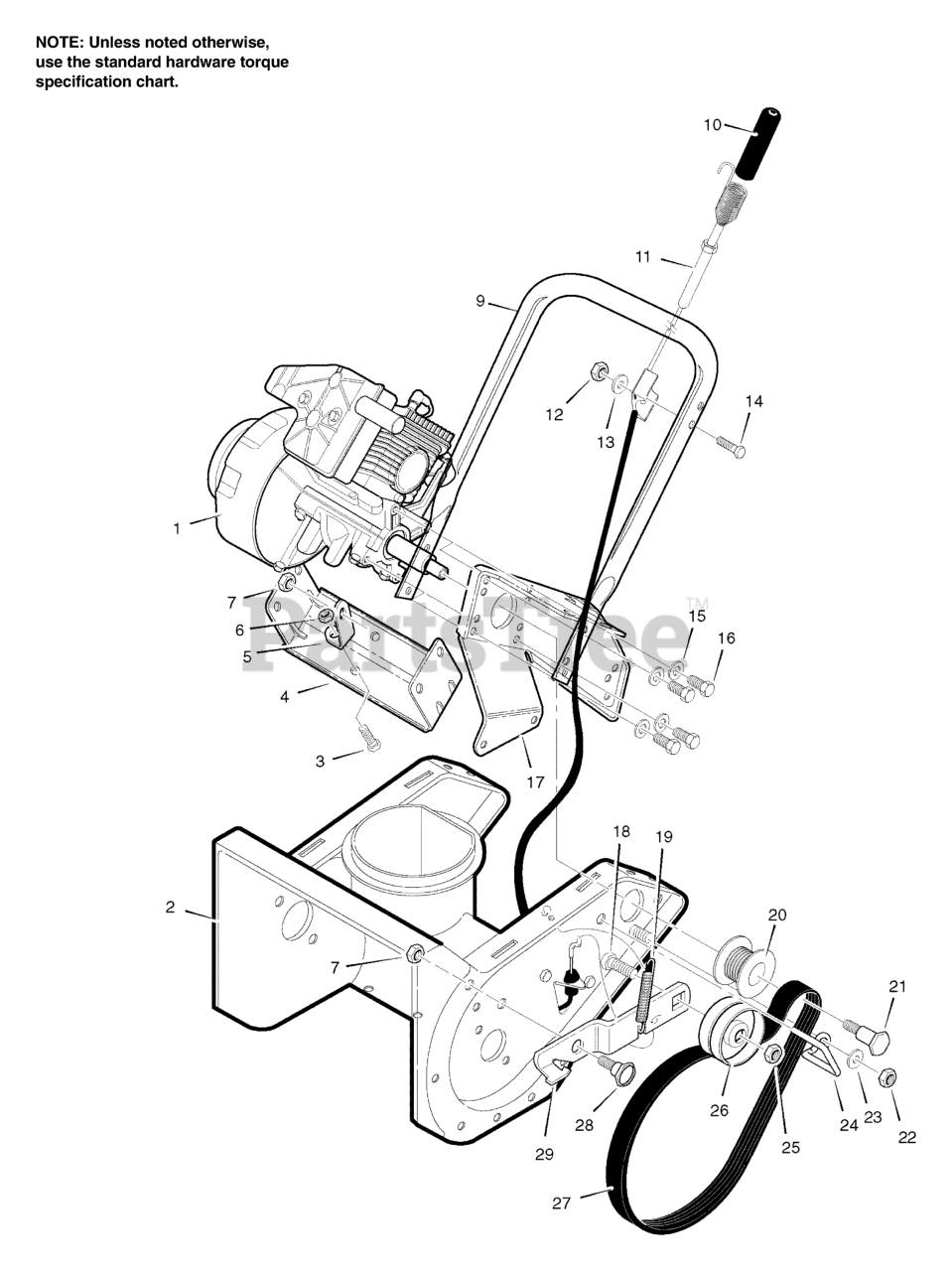

Engine Group Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Husqvarna 601400058

AUGER HOUSING,21

$

$

Not available

3

Husqvarna 601400046

SCREW .31-18 X 0.50 HHC

$

$

Not available

4

Husqvarna 601400021

SUPPORT, FRAME

$

$

Not available

5

Husqvarna 601400020

SUPPORT, ENGINE

$

$

Not available

6

Husqvarna 601400085

NUT .31-18 HEX CTRLK

$

$

Not available

7

Husqvarna 601400085

NUT .31-18 HEX CTRLK

$

$

Not available

9

Husqvarna 601400035

HNDL, LWR 0.88D LOOP

$

$

Not available

10

Husqvarna 601001759

COVER, CABLE SPRING

$

$

Not available

11

Husqvarna 601400051

CABLE, DRIVE CTRL JD H

$

$

Not available

12

Husqvarna 601400086

NUT .25-20 HEX CTRLOCK

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 601400080

WASHER, FLAT .281X.63

$

$

Not available

14

Husqvarna 601001758

SCREW .25-20 x 1.50

$

$

Not available

15

Husqvarna 601400079

WASHER, SPTLK .31X.58
(Superseded to 532198552)

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 601400043

SCREW 5/16-18X7.5

$

$

Not available

17

Husqvarna 601400023

PLATE, REAR

$

$

Not available

18

Husqvarna 601000551

BOLT, 3/8-16X1.50 CARR

$

$

Not available

19

Husqvarna 601002060

SPRING, IDLER

$

$

Not available

20

Husqvarna 601400005

PULLEY, ENGINE 10RIB

$

$

Not available

21

Husqvarna 601002080

BOLT, SHOULDER

$

$

Not available

22

Husqvarna 601400085

NUT .31-18 HEX CTRLK

$

$

Not available

23

Husqvarna 601400001

WASHER FLT

$

$

Not available

24

Husqvarna 601400059

GUIDE, BELT 21 STEEL

$

$

Not available

25

Husqvarna 601400075

NUT .38-16 HEX JAM CTR

$

$

Not available

26

Husqvarna 601001333

IDLER PULLEY

$

$

Not available

27

Husqvarna 601400062

BELT-DRIVE
(Superseded to 601002081)

$

$

Not available

28

Husqvarna 601001329

BOLT

$

$

Not available

29

Husqvarna 601400057

BRKT, IDLER ARM 10RIB

$

$

Not available

Husqvarna 601400000

OWNER'S MANUAL

Note: (Not Illustrated)

$

$

Currently unavailable
