521 SSR (621503x37NA) - Husqvarna 21" Snow Blower (2006-11) Auger Housing Group Parts Diagram

21" Snow Blower

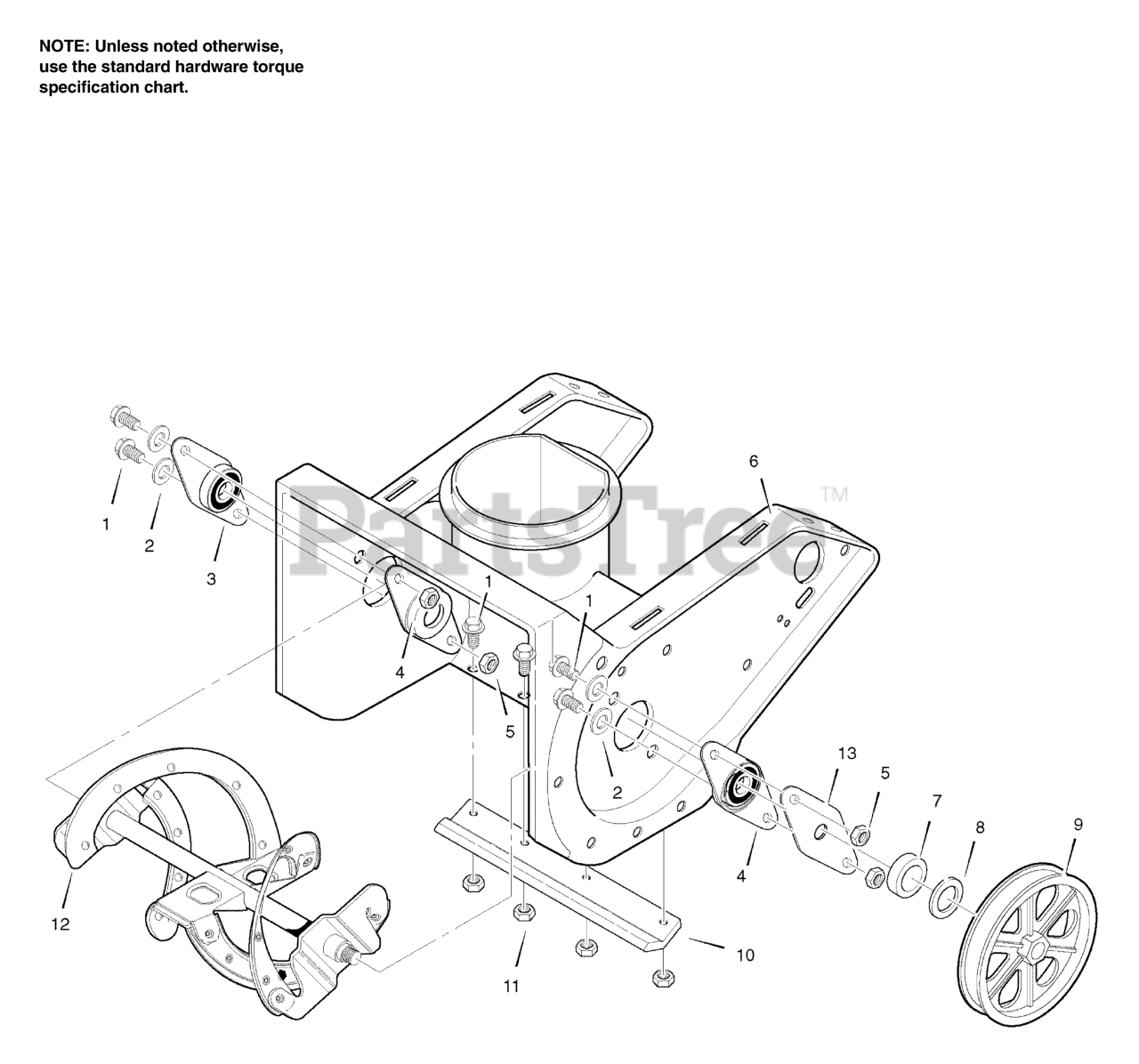

Auger Housing Group Parts Diagram

  • Title

1

Husqvarna 601400073

SCREW .25-20X0.62 HHC

$

$

Not available

2

Husqvarna 601400080

WASHER, FLAT .281X.63

$

$

Not available

3

Husqvarna 601400068

PLATE, BEARING RETAIN

$

$

Not available

4

Husqvarna 601400074

PLATE & BEARING ASY

$

$

Not available

5

Husqvarna 601400086

NUT .25-20 HEX CTRLOCK

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 601400058

AUGER HOUSING,21

$

$

Not available

7

Husqvarna 601002087

SPACER, SLEEVE

$

$

Not available

8

Husqvarna 601400064

WASHER .640-1.25-.06 F

$

$

Not available

9

Husqvarna 601002095

PULLEY, RIBBED 6" OD

$

$

Not available

10

Husqvarna 601001796

BLADE, SCRAPER 20.88 P

$

$

Not available

11

Husqvarna 601400026

NUT .25-20 HEX FLG CTR

$

$

Not available

12

Husqvarna 601400053

AUGER ASSEMBLY
(Superseded to 601001798)

$

$

Not available

13

Husqvarna 601001381

RETAINER, BRNG

$

$

Not available
